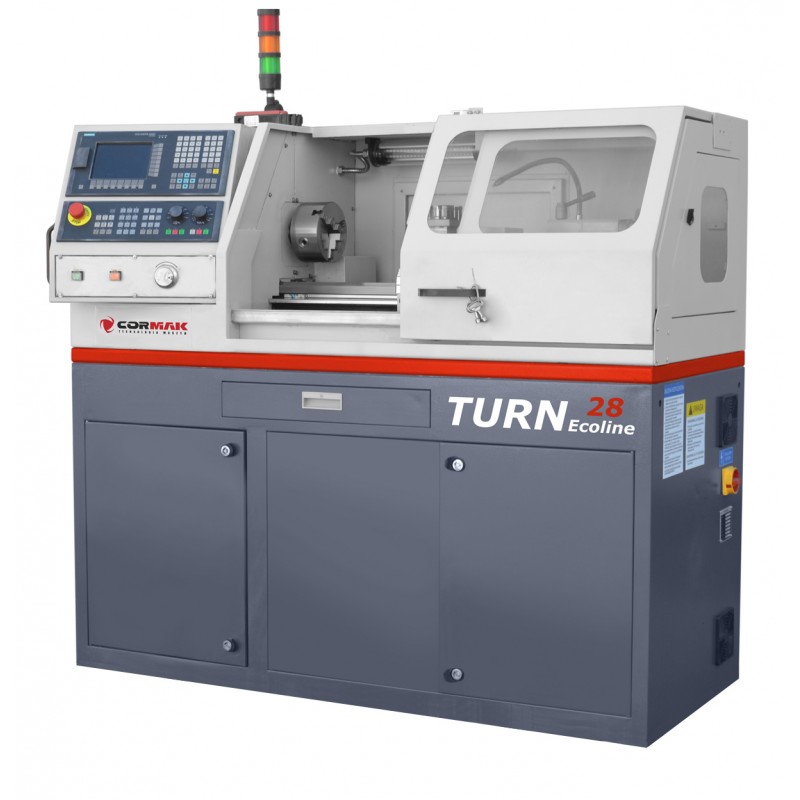

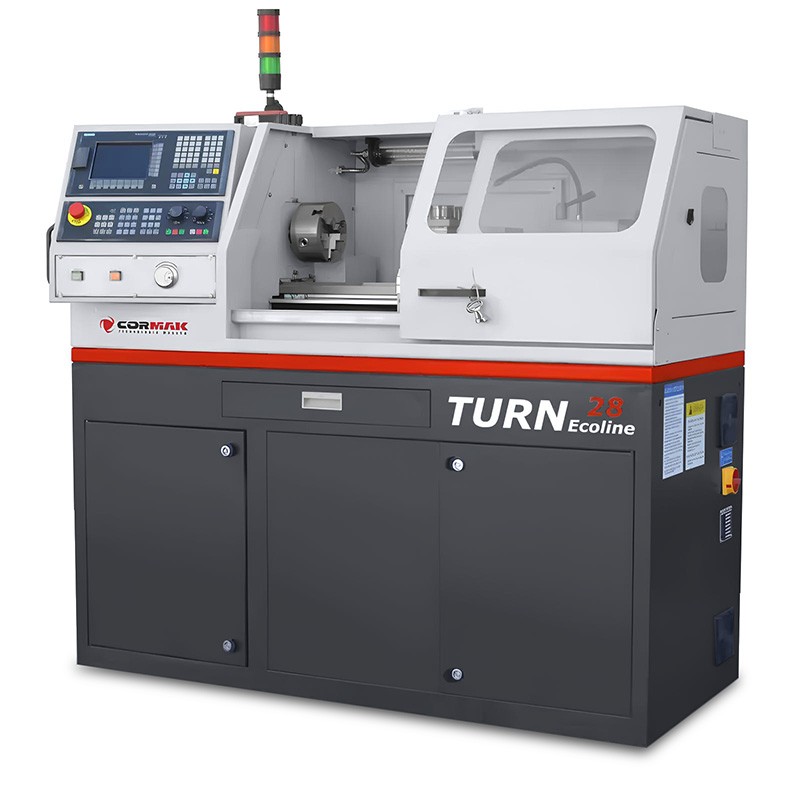

CNC metal lathe 280x700
The 280x700 CNC Lathe is a reliable solution for professional metalworking applications. Equipped with induction hardened bed guides, this advanced machine offers exceptional precision and durability, making it the ideal choice for demanding manufacturers.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Characteristics of the 280x700 CNC metal lathe
Induction Hardened Bed Guides: With induction hardened bed guides, our lathe guarantees smooth and precise movements during machining, ensuring excellent quality of part finish.
Cooling System: Equipped with an effective cooling system, our lathe maintains optimal temperatures during operation, which translates into longer tool and material life and ensures production continuity.
Central Lubrication System: The automatic central lubrication system takes care of every element of the machine, ensuring minimum wear and maximum efficiency, and eliminating the risk of breakdowns.
Right/Left Spindle Rotation: The ability to rotate the spindle both clockwise and counterclockwise increases the versatility of the lathe, allowing precise machining in a variety of directions.
Siemens SINUMERIK 808 control: The advanced Siemens SINUMERIK 808 control system provides intuitive operation and precise settings, ensuring efficient production and optimal machine utilization.
The 280x700 CNC lathe is a perfect combination of precision, reliability and versatility. Regardless of the type of production, this advanced machine will provide you with the reliability and efficiency you need in your workshop or production plant. Choose our CNC lathe and experience the highest quality metal processing.
Technical data:
| TURNING DIAMETER OVER BED | 280mm |
| TEETH SPACING | 700mm |
| SPINDLE BORE | 26mm |
| SPINDLE TIP | MK4 |
| SPINDLE SPEED RANGE | 30 - 4000 rpm |
| NUMBER OF GEARS | 4 |
| METRIC THREAD | 0.2 - 3mm |
| INCH THREAD | 8 - 56 TPI |
| X-AXIS FEED | 130mm |
| Z AXIS FEED | 465mm |
| X-AXIS RAPID FEED | 3000 mm/min |
| Y-AXIS RAPID FEED | 2000 mm/min |
| X-AXIS POSITIONING ACCURACY | 0.03mm |
| Z-AXIS POSITIONING ACCURACY | 0.032mm |
| REPEATABILITY X/Z | 0.13mm |
| TAILSTOCK SLEEVE END | MK2 |
| NUMBER OF TOOLS | 4 (option 6) |
| MAIN ENGINE POWER | 1.5kW |
| OVERALL DIMENSIONS | 1855 x 805 x 1685 mm |
| NET WEIGHT | 420kg |
Description
- Induction-hardened bed guides
- Cooling system
- Central lubrication system
- Left/right spindle movement
- SIEMENS SINUMERIK 808D control system
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
16 other products in the same category:
Discover the reliability and versatility of the CORMAK 320x750 CNC Lathe – perfect for precise metalworking and other materials. With its solid cast iron construction, resistant to vibrations, and hardened and ground guides, the machine ensures excellent accuracy and long service life. Equip ...More
- Reduced price
- Reduced price
- Reduced price
400x1000 CNC CKT Lathe with Hydraulics
An efficient lathe with a flat bed and a broad scope of big and small scale machining possibilities. This machine can lathe external, internal, spherical surfaces and threads. Using constant cycles for transverse turning, normal turning, tapering, threading, plunge cutting and contouring ...More
- Reduced price
CORMAK CNC LATHE 320x1000 SIEMENS SINUMERIK HYDRAULIC CHUCK
Discover the potential of the CORMAK 320x1000 CNC Lathe - a metalworking machine. With a solid cast iron bed that eliminates all vibrations, and induction hardened and ground guides, this lathe provides unparalleled precision and durability. The bed is a solid cast iron bed that is resistant to vibrations. Induction hardened and ground guides. ...More
- Reduced price
CNC LATHE CORMAK CKT800X5000 SIEMENS SINUMERIK
The CKT800x5000 CNC lathe is a perfect solution for both experienced specialists and those starting out in serial and individual production. Designed with maximum cutting efficiency in mind, it guarantees optimal results even with intensive use. The solid construction and wide guides ...More
CNC LATHE 400x1000 MANUAL CHUCK 6 TOOLS SIEMENS SINUMERIK 808D
Our innovative CKT 400x1000 CNC Lathe is the perfect solution for companies looking for efficient and versatile machining equipment. This advanced machine, equipped with a flat bed, offers not only the possibility of machining external, internal, spherical and thread surfaces, but also guarantees ...More
- Reduced price

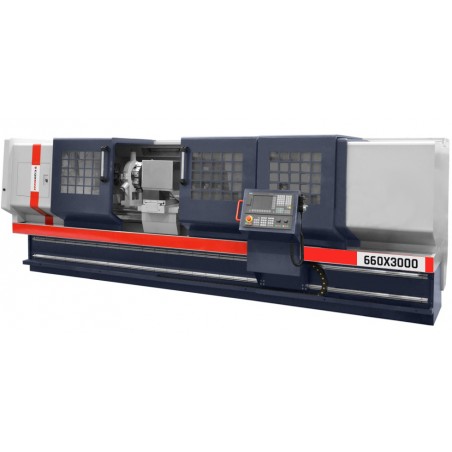

Our CKT660x2000 CNC Lathe is a reliable tool for professionals and novices in series and unit production. This series of heavy-duty lathes is designed for efficient cutting with high accuracy. Thanks to its wide guideways and rigid design, the machine guarantees stability, turning precision and high repeatability of machining. ...More
