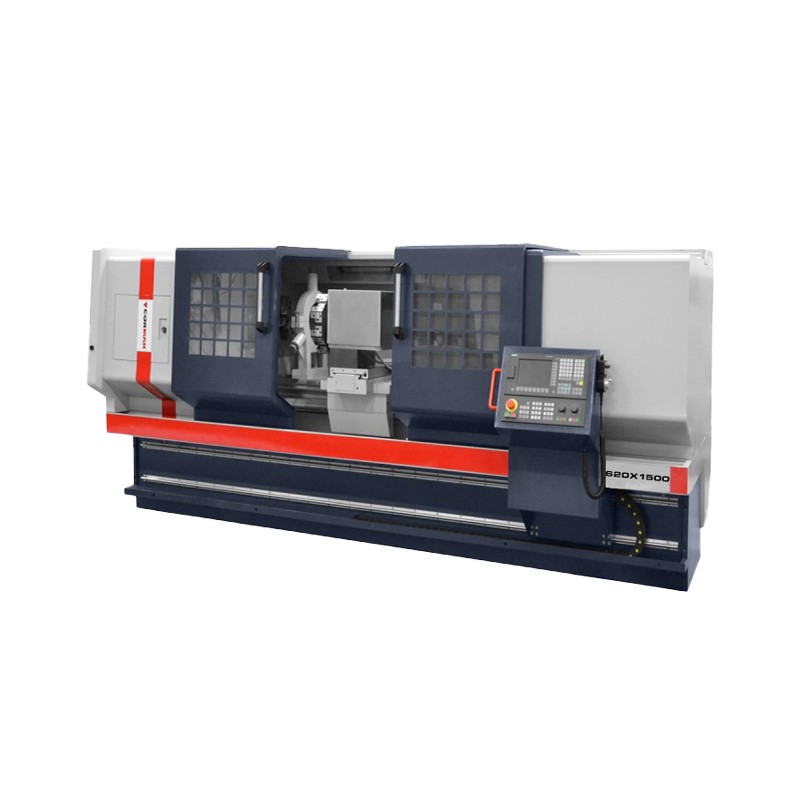

620x1500/2000 CNC Lathe
A series of heavy lathes designed for efficient machining with high precision, both for professionals and for beginners in big scale and small scale production. Wide guides and solid construction of the lathe ensure stability, lathework precision and high machining repeatability.
Variant
560x1500 CNC Lathe
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
| Swing over bed |
620 mm |
|
Swing over cross slide |
320 mm |
|
Maximum turning length |
1500/2000 mm |
|
Spindle speed |
100-800 rpm (⌀380) 100-1500 rpm (⌀250) |
|
Spindle bore |
115 mm |
|
Chuck |
380 mm |
|
Number of tools in holder |
6 |
|
Tool holder size |
25 mm |
|
Tailstock spindle taper |
MT5 |
| X/Z axes rapid travel |
8/10 m/min |
|
Tailstock spindle feed |
200 mm |
|
Main motor power |
7,5 kW (11 kW optional) |
|
Dimensions |
2950×1520×1750 mm |
|
Weight |
3850 kg |
Available equipment
- SINUMERIK 808D control system in Polish and English
- SIEMENS servomotors
- 3-jaw manual chuck
- 6-position turret head
- soft jaw kit
- manual tailstock
- cooling system
- automatic gear and guide lubrication system
- 24V halogen lighting
- Polish and English manuals
- EC declaration
Optional equipment
- SINUMERIK 828, Fanuc, GSK control systems
- follow rest
- hydraulic chuck
- steady rest
- hydraulic tailstock
- tool probe
- shavings transporter
- additional set of soft jaws
- set of hard jaws
- sleeve chucks
- gripper for workpieces
- bar feeder
- toolholders
- CAD/CAM software
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
