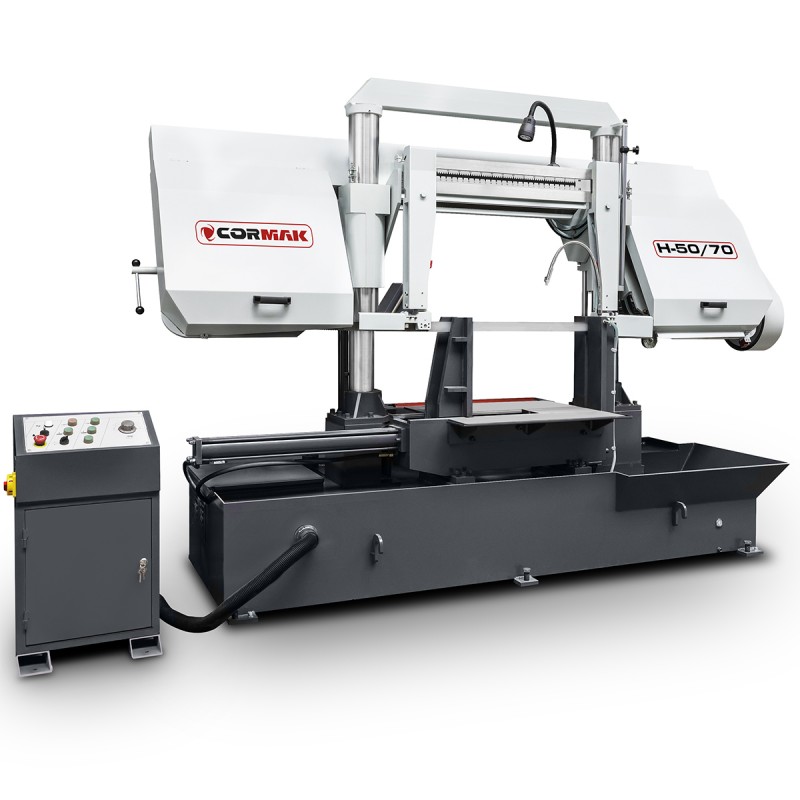

Dual-Column Semi-Automatic Metal Bandsaw CORMAK H-50/70

CORMAK H5070 Dual-Column Bandsaw

The CORMAK H5070 dual-column metal bandsaw is a high-performance, semi-automatic machine designed for precise and efficient cutting of solid bars, pipes and profiles made of steel, cast iron and non-ferrous metals. Its robust dual-column construction ensures maximum rigidity and stability throughout the cutting process, resulting in a long machine service life and high machining quality.

Main Advantages of the Machine

• Dual-column bow guidance ensures rigidity and accurate blade guidance, even when cutting large cross-sections
• Hydraulic cutting cycle with automatic lowering and raising of the bow
• Precise blade guidance through a guide system with bearings and carbide inserts
• ABB motors ensuring reliability and durability
• Blade speed adjustment across three ranges: 40/60/80m/min
• Automatic machine stop in the event of cutting blade breakage

Construction and Technology

The machine body and bow are made from monolithic cast-iron components, providing excellent vibration absorption. The hydraulic mechanism controls the movement of the bow and vice, enabling precise, stable and unattended control of the cutting process. The electronic controls are housed in an ergonomic console at the front of the machine, making operation easier for the operator.

Cutting Precision and Performance

The machine operates in semi-automatic mode, with the operator only positioning the workpiece. The cutting process, including clamping the material, starting the blade, adjusting the speed and raising the bow after the cut is complete, takes place automatically. This solution shortens the cycle time and enables repetitive operations in series production.

Applications

The CORMAK H5070 semi-automatic bandsaw is suitable for production facilities, toolrooms, structural fabrication halls and companies involved in the prefabrication of steel pipes and profiles. It is ideal for cutting structural steel, tool steel, cast iron and non-ferrous metals.

Standard Equipment

• Hydraulic vice with automatic clamping function
• Hydraulic raising and lowering of the bow
• Liquid coolant system
• Cutting blade cleaning brush
• Control panel at the front of the machine
• Bimetal cutting blade
• CE Declaration of Conformity
• CE certification

Optional Equipment

• Roller extensions for feeding long workpieces

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

Technical Specifications
