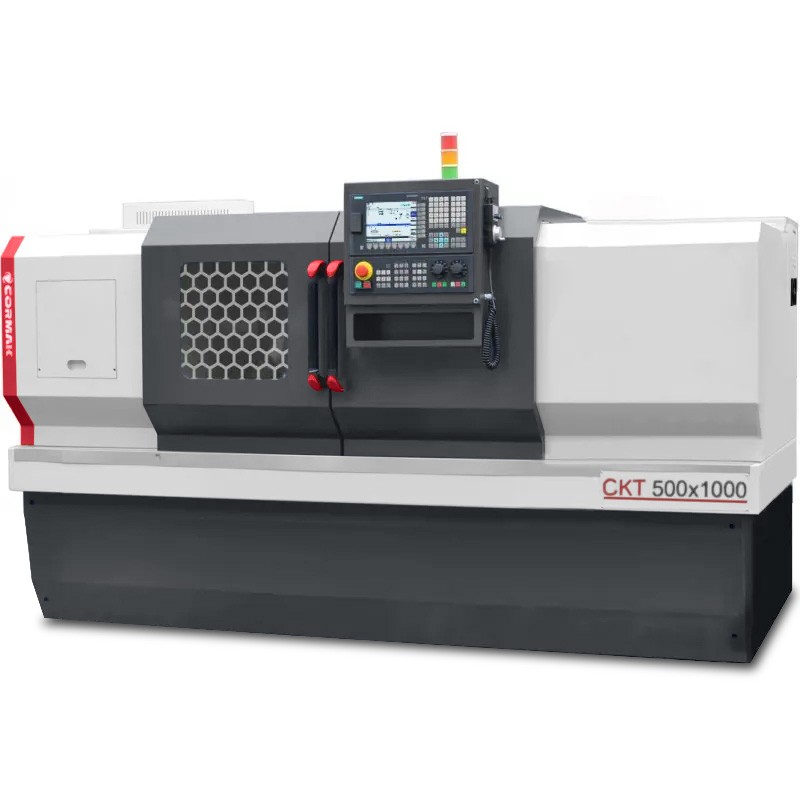

CNC Lathe CKT500x1000 – precision and performance in metalworking

CNC Lathe CKT500x1000 is an advanced numerically controlled lathe designed for precise machining of metal components in medium and large production plants. Equipped with SIEMENS SINUMERIK 808D control and a robust structure, it ensures high accuracy, reliability and efficiency in a variety of industrial applications.

Main advantages of the CNC Lathe CKT500x1000

CNC Lathe for metal CKT500x1000 is a professional solution for industry, combining modern technology with a robust construction, dedicated to facilities requiring the highest quality of precision machining. As an industrial lathe, it enables the execution of complex operations such as external, internal and spherical turning, threading, drilling, grooving and contouring, ensuring excellent surface quality of machined parts. Its key advantages include:

• High machining precision: Maximum turning diameter over bed 500 mm and over cross slide 280 mm, with surface roughness Ra1.6, guarantee outstanding finish quality.
• Flexible spindle: Spindle speed range 200–1800 rpm (or 200–1200 rpm for 91 mm bore) and spindle bore 75 mm (option 91 mm) allow machining of a wide range of materials.
• Intuitive control: SIEMENS SINUMERIK 808D system with Siemens servo drives offers a dedicated mode for conventional machine operators, simplifying the transition to CNC technology.
• Rigid structure: Net weight 2,900 kg and dimensions 2355×1520×1860 mm ensure stability during the machining of parts up to 1,000 mm long.
• Tool efficiency: 4-position turret head (optional 6 or 8 positions) with 25×25 mm tools allows for fast tool change, reducing production cycle time.
• Quick setup: Enables convenient tool setting, zero-point adjustment and corrections without the need for programming, ideal for single-item production.
• Increased safety: Controlled movement and speed limitation allow precise and safe machine operation, minimising the risk of errors.
• Durability of components: The automatic lubrication system for gears and guideways reduces wear and extends the machine’s service life.
• Optimal cooling: The cooling system ensures thermal stability, protecting tools and workpieces during intensive machining.
• Versatile applications: Dedicated to precision turning in mechanical, automotive and tooling industries, suitable for both serial and small-batch production.
• Operating economy: The main motor with 7.5 kW power (optional 11 kW) combines high efficiency with low energy consumption.
• Integration with machining cycles: Cooperation with machining cycles such as transverse turning, taper turning, threading or drilling requires only basic parameter input, without the need for G-code knowledge.
• Customisation options: A wide range of optional features, such as Fanuc Oi-TF control, hydraulic chuck, bar feeder, tool probe or CAD/CAM software, allow the machine to be adapted to specific production needs.
• European safety standards: The CE Declaration of Conformity confirms compliance with strict occupational safety standards.

Construction and technology of the CNC Lathe CKT500x1000

Industrial CNC Lathe CKT500x1000 has been designed for reliability and precision under demanding production conditions. The key structural components include:

• Solid machine bed: The rigid structure with a net weight of 2,900 kg minimises vibrations, ensuring stability during machining.
• High-performance spindle: Bore 75 mm (option 91 mm) and speed range 200–1800 rpm (or 200–1200 rpm) enable machining of various components.
• Turret head: 4-position (option 6 or 8) with 25×25 mm tools provides fast tool change and operational flexibility.
• Manual tailstock: With a maximum stroke of 120 mm, it ensures precise workpiece support, with a hydraulic option for higher productivity.
• Manual 3-jaw chuck: Provides secure clamping of workpieces, with an optional hydraulic version for increased efficiency.
• Siemens servo drives: Guarantee smooth motion and high positioning accuracy.
• Automatic lubrication system: Central lubrication for gears and guideways reduces wear of components.
• Cooling system: Maintains optimal temperature, improving machining quality and tool life.
• 24V halogen lighting: Provides excellent visibility of the working area, improving safety and precision.

Precision and performance

Numerical lathe CKT500x1000 offers exceptional accuracy thanks to SIEMENS SINUMERIK 808D control and Siemens servo drives. Advanced fixed cycles such as transverse turning, taper turning, threading, grooving and contouring simplify programming and shorten machining time. Surface roughness Ra1.6, feed speeds of axis X (8 m/min) and Z (10 m/min), and machining capability up to 500 mm in diameter and 1000 mm in length guarantee high quality and productivity.

Applications of the CNC Lathe for metal CKT500x1000

CNC lathes for metal such as the CKT500x1000 are used in various industrial sectors, including:

• Mechanical industry: Production of shafts, sleeves, flanges and precision components.
• Automotive industry: Machining of engine parts, transmissions and suspension components.
• Toolmaking industry: Manufacturing of threads, grooves and parts with complex geometries.
• Serial and small-batch production: Ideal for medium-scale manufacturing as well as quick single-part production in R&D departments.

The machine is an excellent choice for facilities seeking a versatile and reliable CNC lathe.

Standard equipment

• Control system: SIEMENS SINUMERIK 808 Advanced
• Siemens servo drives
• Manual 3-jaw chuck
• 4-position turret head
• Set of soft jaws
• Manual tailstock
• Cooling system
• Automatic lubrication system for gears and guideways
• 24V halogen lighting
• User manual
• CE Declaration

Optional equipment*

• SIEMENS SINUMERIK 828D control
• Travelling steady rest
• 8-position turret head
• Hydraulic chuck
• Hydraulic tailstock
• Fixed steady rest
• Tool probe
• Chip conveyor
• Additional soft jaws
• Hard jaws
• Collet holders
• Finished part gripper
• Bar feeder
• Tool holders
• CAD/CAM software

*The price quoted applies to the machine only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical parameters

CNC control systems – SIEMENS and FANUC

CNC Lathe CKT500x1000 offers advanced CNC control systems such as SIEMENS SINUMERIK 808D, SIEMENS SINUMERIK 828D and FANUC Oi-TF, providing precision, reliability and ease of operation:

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Easy to operate, ideal for smaller workshops and beginner users.
• Reliability: Durable construction resistant to demanding industrial conditions.
• Cost-effectiveness: Dedicated for standard turning and milling operations.

SIEMENS SINUMERIK 828D

• High computing power: Enables dynamic machining and execution of complex cycles.
• CAD/CAM integration: Facilitates cooperation with design software.
• Advanced functions: Toolpath optimisation and possibility of expansion with additional modules.

FANUC Oi-TF

• Stability: Reliable operation in serial and long-term production.
• Advanced turning cycles: Ideal for precise cutting operations such as threading and grooving.
• Intuitive operation: Clear interface accelerates programming.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual
