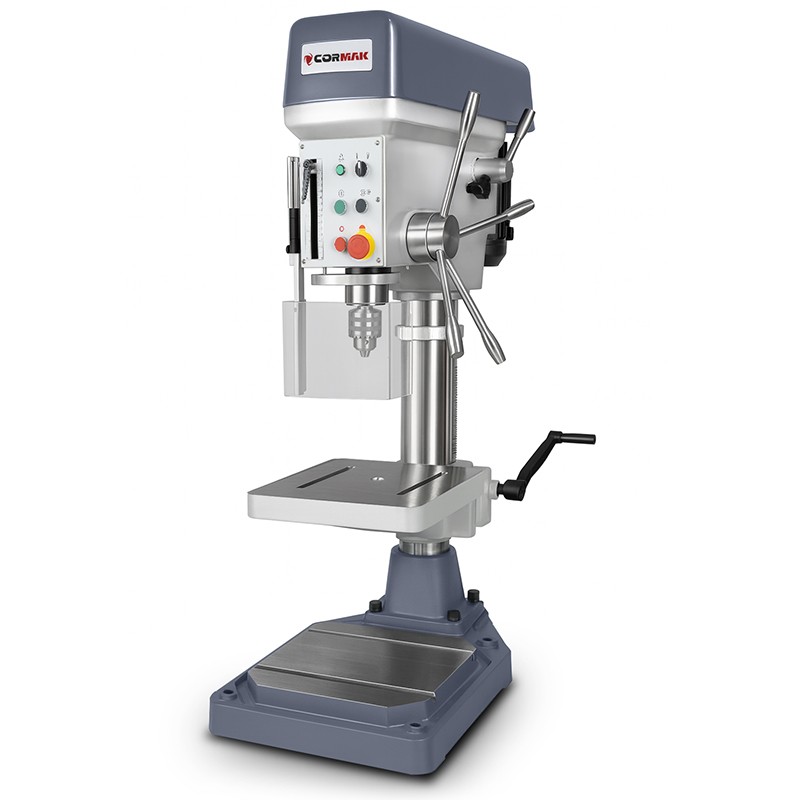

Bench Drill for Metal CORMAK WS20

Reduced price

The WS20 bench drilling machine with a reinforced structure is a general-purpose model designed for drilling, reaming, countersinking and tapping (using special holders for threading tools). The drills enable drilling and tapping with multi-spindle heads. The machine stands out for its high performance, precision, low noise level, wide spindle speed range, centralised control panel for convenient operation and user-friendly design.

Variant

Bench Drill for Metal CORMAK Z7016 Vario

Bench Drill for Metal CORMAK Z7020 Vario

Bench Drill for Metal CORMAK WS16

Bench Drill for Metal CORMAK WS32

Bench Drill for Metal CORMAK WS32BC with Autofeed and Cooling

Bench Drill for Metal CORMAK Z7016A Vario

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

~~€1,412.25~~

€1,097.50

The lowest price of this product in the last 30 days before the discount was €1,237.25 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Bench Drill CORMAK WS20 – precision bench drilling machine for metal with tapping function

The CORMAK WS20 bench drilling machine is a professional column drilling machine for metal designed for drilling and tapping in industrial environments. Thanks to its robust structure, long spindle travel and automatic tapping function, the machine delivers excellent performance and precision when machining metals, particularly structural steel.

Main advantages of the machine

Tapping function with automatic reverse – fast and safe thread cutting up to M16 in steel.
High structural rigidity – 85 mm column diameter and seasoned cast-iron components (headstock, base and table) ensure stability and vibration damping.
Spindle travel 135 mm – allows deep drilling without repositioning the workpiece.
Belt drive – five precisely selected spindle speeds ranging from 280 to 1,875 rpm.
Safety guards with limit switches – CE compliant, ensuring higher operator safety.
Large worktable with 360° rotation and T-slots – flexibility when clamping workpieces.

Construction and technology

The CORMAK WS20 bench drilling machine for metal is built from high-grade materials. The spindle and transmission shafts are made of hardened steel for wear resistance. The headstock, column and table are precision-machined from seasoned castings, providing structural rigidity. The Morse taper MK2 allows quick tool changes and the use of various tooling systems.

Precision and performance

Thanks to its stable column, long spindle stroke and refined transmission, the machine ensures accurate, repeatable hole drilling and threading. The clear control panel simplifies operation, while the powerful 1.1 kW motor enables efficient machining of demanding materials.

Applications

The CORMAK WS20 bench drilling machine is ideal for:

industrial workshops,
mechanical workshops,
maintenance departments,
technical schools and training centres.

The machine is suitable for drilling and tapping in steel, aluminium and non-ferrous materials.

Standard equipment

Keyed drill chuck
Taper drift
U-type spindle guard with safety limit switch
Belt guard with safety limit switch

Technical data

Parameter	Value
Maximum drilling capacity (steel)	20 mm
Maximum tapping capacity (steel)	M16
Spindle travel	135 mm
Spindle taper	MK2
Spindle speed range	280–1,875 rpm
Number of speeds	5
Column diameter	85 mm
Distance spindle–column	260 mm
Distance spindle–table	366 mm
Distance spindle–base	678 mm
Table dimensions	300 × 320 mm
Base dimensions	376 × 566 mm
Motor power	1.1 kW
Power supply	400 V
Net weight	179 kg
Machine dimensions	800 × 450 × 1,250 mm

Choose quality and reliability

The CORMAK WS20 bench drilling machine for metal is an investment in precision, durability and safety. Contact our sales department or place your order online to increase your workshop’s capabilities!

Manufacturer: Cormak
