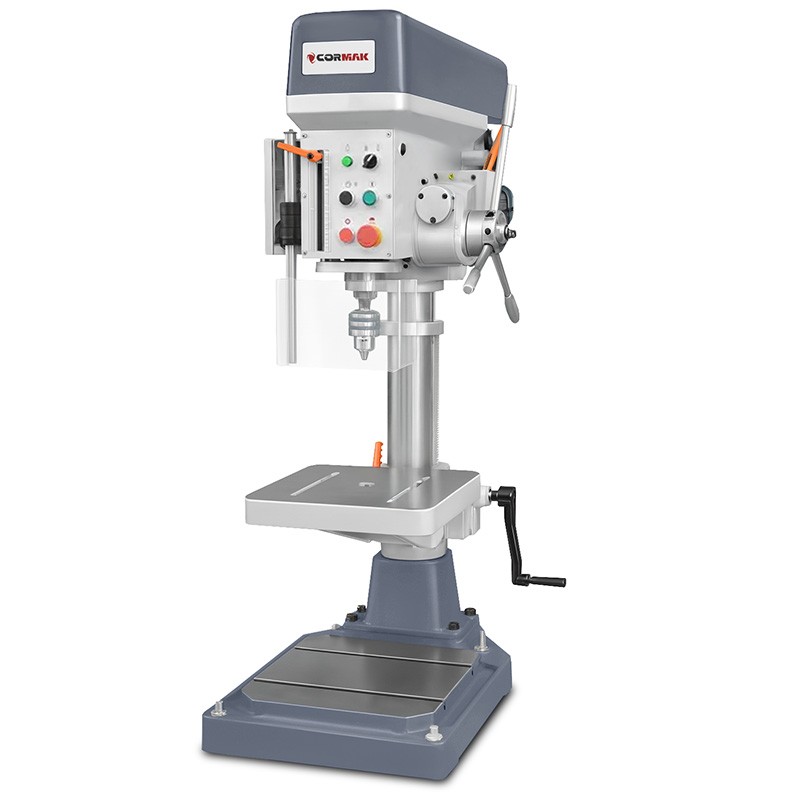

Bench Drill for Metal CORMAK WS20B with Autofeed

Reduced price

The WS20B bench drilling machine with a reinforced structure is a general-purpose model designed for drilling, reaming, countersinking and tapping (using special holders for threading tools). MODEL EQUIPPED WITH AUTOFEED. The drills allow drilling and tapping with multi-spindle heads. The machine stands out for its high performance, precision, low noise level, wide range of spindle speeds, centralised control panel for convenient operation and easy handling.

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

~~€1,574.75~~

€1,372.50

The lowest price of this product in the last 30 days before the discount was €1,574.75 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Bench Drill CORMAK WS20B with Autofeed – column drilling machine for metal with tapping function

The CORMAK WS20B bench drilling machine is an advanced column drilling machine for metal equipped with a spindle autofeed, designed for precise drilling and tapping in structural steel and other metals. With its thoughtful design, high power and precise feed control, the WS20B model ensures excellent performance for both industrial and workshop applications.

Main advantages of the machine

Spindle autofeed – precise feed adjustment up to 80 mm/min ensures even and controlled drilling.
Tapping function with automatic spindle reverse – safe and efficient threading up to M16 in steel.
High structural rigidity – 85 mm column diameter and seasoned castings eliminate vibration and increase drilling accuracy.
Spindle stroke 135 mm – ideal for deep drilling without repositioning the workpiece.
Belt drive – 5-speed range from 280 to 1,875 rpm allows optimal adaptation to material type.
CE safety systems – spindle and belt guards with limit switches improve operator safety.

Construction and technology

The CORMAK WS20B bench drilling machine with autofeed is built for long-lasting and reliable performance. The spindle and transmission components are made from hardened and heat-treated steel. The column, base and worktable are precision-machined from seasoned cast iron, ensuring strength and rigidity. The Morse taper MK2 allows quick tool changes and compatibility with a wide range of accessories.

Precision and performance

The combination of autofeed functionality and a powerful 1.1 kW motor enables smooth, consistent drilling even in difficult-to-machine materials. The stable design and 360° rotatable worktable improve operator comfort and flexibility when positioning components.

Applications

The CORMAK WS20B bench drilling machine with autofeed is ideal for:

industrial plants,
mechanical workshops,
maintenance departments,
technical schools and training centres.

Designed for drilling, reaming and tapping of metals, aluminium and engineering plastics.

Standard equipment

Keyed drill chuck
Taper drift
U-type spindle guard with safety limit switch
Belt guard with safety limit switch

Technical data

Parameter	Value
Maximum drilling capacity (steel)	20 mm
Maximum tapping capacity (steel)	M16
Spindle stroke	135 mm
Spindle taper	MK2
Spindle speed range	280–1,875 rpm
Number of speeds	5
Feed rate range	0–80 mm/min
Column diameter	85 mm
Distance spindle–column	260 mm
Distance spindle–table	366 mm
Distance spindle–base	678 mm
Table dimensions	300 × 320 mm
Base dimensions	376 × 566 mm
Motor power	1.1 kW
Power supply	400 V
Net weight	179 kg
Machine dimensions	800 × 450 × 1,250 mm

Order your autofeed drilling machine – choose CORMAK quality

The CORMAK WS20B bench drilling machine with autofeed is the perfect solution for production facilities and workshops requiring high precision and performance. Contact us or place your order directly online!

Manufacturer: Cormak
