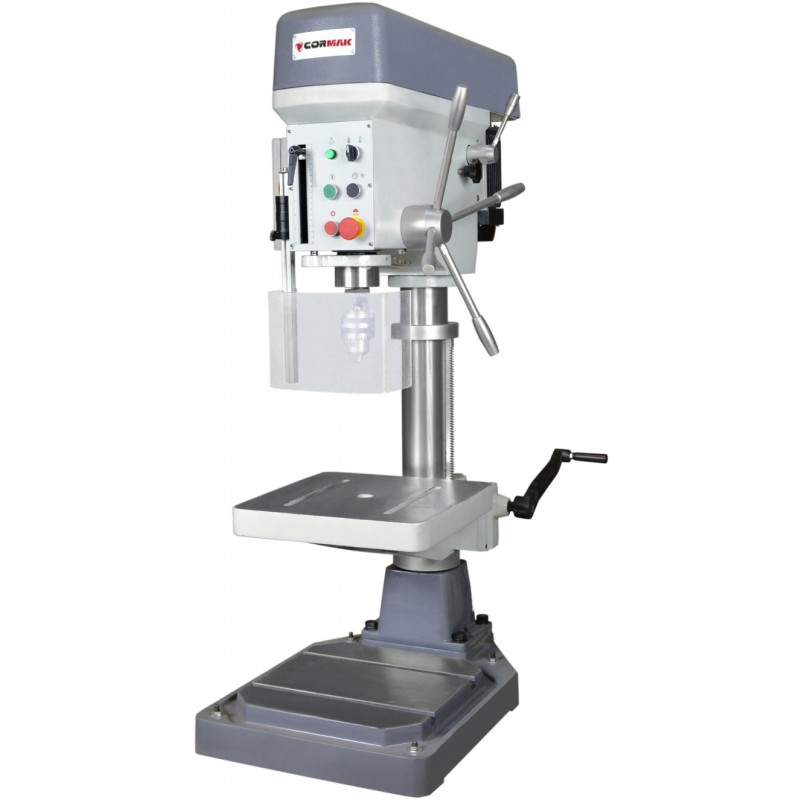

Bench Drill for Metal CORMAK WS32

The CORMAK WS32 bench drilling machine is a robust tool with high spindle rigidity. It features automatic spindle reverse, long spindle travel and a clear control panel. Built from top-quality seasoned castings, it offers a powerful motor and CE certification. The maximum drilling capacity in steel is 32 mm, and the maximum tapping capacity is M24. Equipped with an MK3 spindle taper, it ensures stability and quick tool changes. Ideal for both professional and hobby use.

Variant

Bench Drill for Metal CORMAK Z7016 Vario

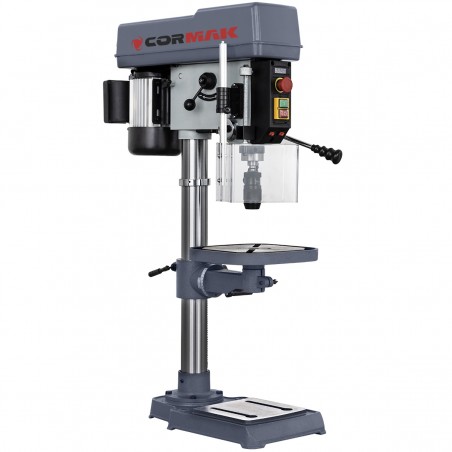

Bench Drill for Metal CORMAK Z7020 Vario

Bench Drill for Metal CORMAK WS16

Bench Drill for Metal CORMAK WS20

Bench Drill for Metal CORMAK WS16

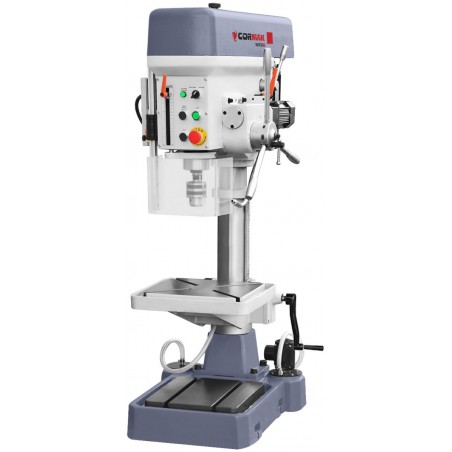

Bench Drill for Metal CORMAK WS32BC with Autofeed and Cooling

Bench Drill for Metal CORMAK Z7016A Vario

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€1,534.75

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Bench Drill CORMAK WS32 – column drilling machine for metal with tapping function

The CORMAK WS32 bench drilling machine is a solid and precise column drilling machine for metal, designed for intensive work in industrial and workshop environments. With high rigidity, impressive spindle travel and the ability to tap up to M24, this machine serves as a versatile tool for a wide range of machining operations.

Main advantages of the machine

Tapping function – automatic spindle reverse enables safe and accurate thread cutting.
Spindle travel 150 mm – allows deep drilling without repositioning the workpiece.
High rigidity – 100 mm column diameter and a cast-iron base ensure excellent stiffness and vibration damping.
Belt drive – five speed levels (280–1,875 rpm) provide precise speed adjustment for different materials.
Morse taper MK3 – allows use of a wide range of drilling tools and taps.
360° rotatable worktable – with T-slots, manually adjustable in height.
Operational safety – spindle guard with safety switch and CE certification.

Construction and technology

The CORMAK WS32 bench drilling machine for metal is made from high-grade seasoned cast iron, ensuring long-term durability and machining precision. The hardened spindle and transmission shafts are resistant to wear. A clear control panel and ergonomic component layout enhance operator comfort.

Precision and performance

The WS32 model, with its heavy-duty construction and long spindle stroke, guarantees stable operation even in demanding applications. The ability to tap up to M24 makes it ideal for machining large steel components. Smooth spindle motion and flexible speed settings enhance both drilling and tapping efficiency.

Applications

The CORMAK WS32 bench drilling machine is intended for:

machine and metal industries,
locksmith and toolmaking workshops,
maintenance departments,
technical schools and training centres.

The machine enables precise drilling, reaming and tapping in steel, cast iron and non-ferrous materials.

Standard equipment

Keyed drill chuck
Taper drift
U-type spindle guard with safety limit switch
Belt guard with safety switch

Technical data

Parameter	Value
Maximum drilling capacity (steel)	32 mm
Maximum tapping capacity (steel)	M24
Column diameter	100 mm
Spindle travel	150 mm
Distance spindle–column	265 mm
Distance spindle–table	390 mm
Distance spindle–base	745 mm
Spindle taper	MK3
Spindle speeds	280, 400, 675, 1,140, 1,875 rpm
Number of speeds	5
Table dimensions	380 × 400 mm
Base dimensions	645 × 470 mm
Machine height	1,370 mm
Motor power	1.1 kW
Power supply	400 V
Net weight	230 kg
Overall dimensions	900 × 500 × 1,400 mm

Choose precision and reliability – choose CORMAK WS32

The CORMAK WS32 bench drilling machine for metal is the perfect solution for professionals demanding performance, durability and accuracy in everyday metal machining. Order online or contact our sales consultant!

Manufacturer: Cormak
