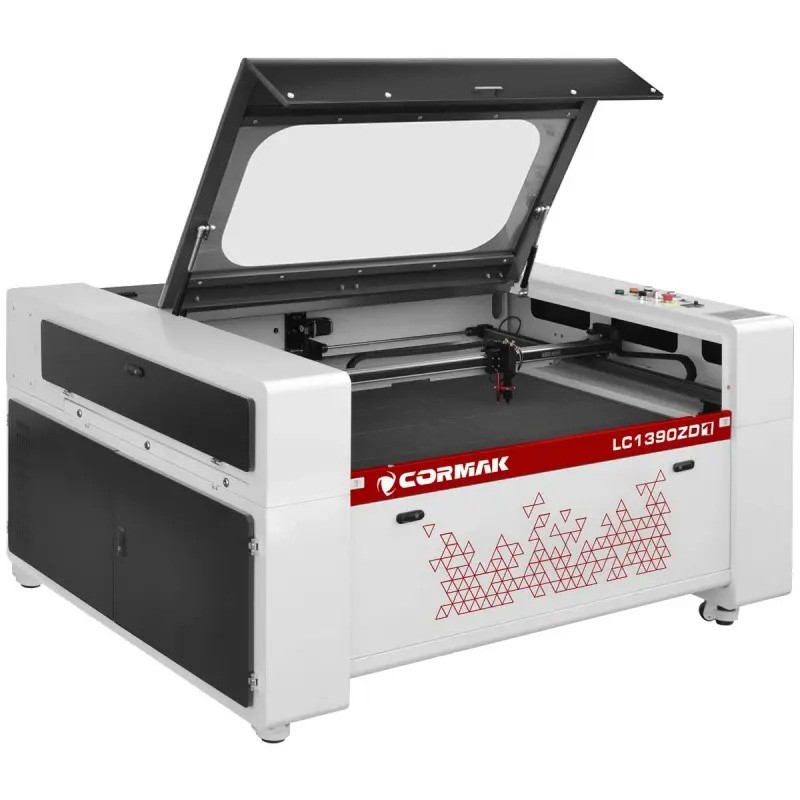

CO2 laser plotter engraving machine Laser LC1390ZD1 130W

Principle of operation of CO2 laser

The CO2 laser plotter is an advanced cutting and engraving device that uses laser technology based on CO2 gas. The main element of the plotter is a laser that emits intense laser light onto the surface of the material, which allows for precise and complex processing operations.

It is highly versatile, allowing you to cut and engrave a variety of materials, such as wood, leather, rubber, fabrics, acrylic, paper, and even thin layers of metal. CO2 laser plotters are popular in the advertising, decoration, design, and many other industries where high precision and speed are key.

These plotters are controlled by specialized software that allows the user to design and send patterns to be cut or engraved. This allows users to create intricate patterns, logos, signs, prototypes and many other designs with high precision and efficiency. CO2 laser plotters are a valuable tool for companies, design studios and hobbyists looking for modern solutions in the field of material processing, as they enable precise cutting and engraving

LASER CUTTING PROCESS

Laser cutting is a modern and widely used technique for processing materials. The cutting tool in this technique is a high-energy-density laser beam that cuts through the material.

The course of the laser cutting process

The laser cutting process is based on the phenomenon of the laser beam interacting at its focal point, where its power is the highest, causing rapid melting, evaporation, ablation and heating of the cut material to the ignition temperature. The place where the beam hits the material is washed by a fast-flowing gas, which flows along the axis of the beam's incidence and removes the melted material.

Professional liquid cooler included

It has a cooling agent, thanks to which, when the liquid reaches the alarm temperature, the built-in unit cools the cooling system of the laser tube very quickly.

CO2 laser plotter equipment LC1390ZD1

• A "honeycomb" work table is indispensable when cutting materials, its task is to extract smoke.
• Scissor table ideal for cutting materials such as plexiglass, aspet, etc.
• The lower exhaust pipe serves to extract exhaust gases.
• Waste drawer
• Electrically lowered table from program and machine position allows it to be lowered to 300 mm, enabling engraving on tall objects.
• "Red dot", its task is to precisely display the place where the laser beam works - essential for positioning.
• Integrated compressor activated only during operation, used to protect the lens from dirt and to cool the area of ​​material currently being cut.
• 130W laser head
• Professional cooler.
• USB communication also allows the machine to be connected to a portable computer, such as a notebook, via a USB port. Additionally, the plotter has an LCD display from which you can, among other things, adjust the table height.
• The USB input in the machine and the built-in memory allow you to transfer files with operating parameters directly to the device without using a computer.
• 512MB USB Flash Drive for File Transfer

Laser plotters – high precision of operation

Four-sided table access:  Four sides of material feeding, you can cut and engrave material on the largest scale.

US II-VI Optical Lenses:  American optics from American Photonics. Proven 14% transmission improvement over other optics. High strength mirrors and aspherical focusing lenses made by II-VI, USA.

High sharpness, high transmittance. The lenses can not only ensure the quality of the device, but also make the optical system work for a long time with high efficiency and low cost.

Dual Cutting and Engraving Platforms:  Includes a scissor table and a honeycomb table.

Suitable for processing : Wood, organic glass, plastic, textiles, clothing, paper, leather, rubber, plastics and other non-metallic materials.
