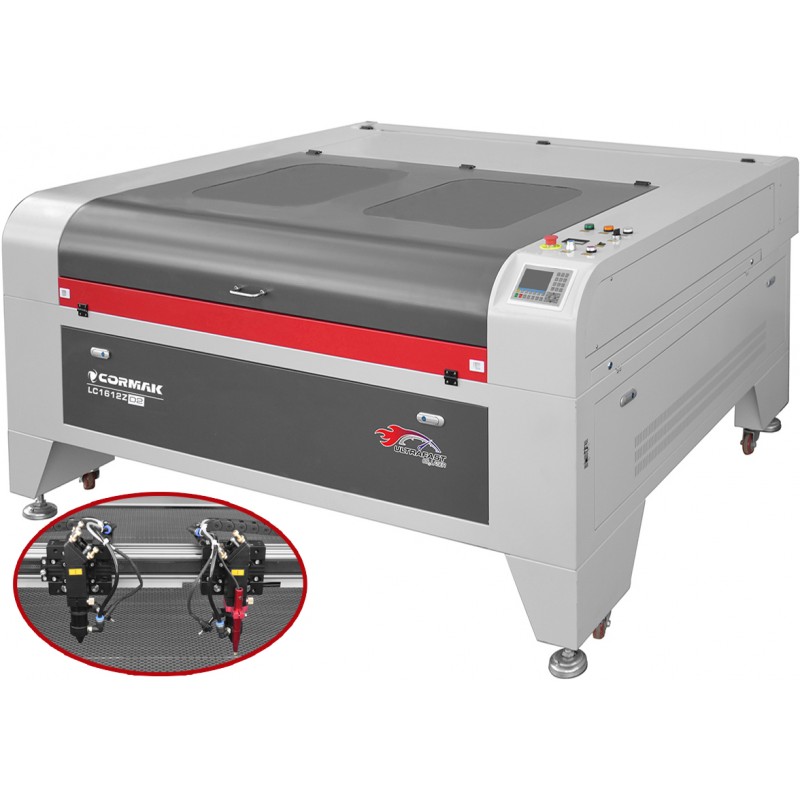

CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head

CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -
  • CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head -

Ideal for engraving, marking and cutting — from single items to large production series. Equipped with two laser heads, each with a power of 160W.

The working area of the LC1612ZD2 Laser Cutting and Engraving Machine is 1600x1200 mm.

Included with the machine: red dot pointer, electrically adjustable platform up to 300 mm, honeycomb and blade tables, lower fume extractor with waste drawer, integrated compressor activated during operation, fan and cooling system.

The key advantage of this engraver is the “through table”, allowing the machining of materials of any length, 1600 mm width and height up to 100 mm, or any width and 1200 mm length.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.

VAT included
€14,975.00

Product available on request. Please contact our sales department.

There are not enough products in stock


  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

CO₂ ULTRAFAST LASERS

CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head

The latest series of high-speed lasers for cutting and engraving — saving your time and increasing your competitiveness.

Ultrafast laser series — your guarantee of success!

  1. Up to 200% faster compared to standard models available on the market.
  2. Innovative drive system ensures significantly higher precision, especially for small, complex details.
  3. Only with us — top-quality components from trusted, leading manufacturers.
  4. Guaranteed original RECI laser tubes.

LASER CUTTING PROCESS

Laser cutting is a modern and widely used material processing technique. The cutting tool in this method is a high-energy-density laser beam that cuts through the material.

Laser cutting process sequence

The laser cutting process is based on the interaction of the laser beam at its focal point, where its power is the highest, causing rapid melting, evaporation, ablation and heating of the cut material to ignition temperature. The area where the beam hits the material is flushed with a fast-flowing gas that removes the molten material along the beam axis.

MACHINE EQUIPPED WITH AN UPGRADED CONTROLLER MODEL

  • Independent control of up to 4 axes,
  • Larger 5” TFT display,
  • 13 languages available,
  • Numeric keypad for quick parameter input,
  • External buttons for direct control of “Z” and “U” axes (significantly increases productivity),
  • Dedicated external “FOCUS” button — quick focus setup with one touch,
  • Support for larger file sizes,
  • Much higher performance compared to previous controller versions,
  • Possibility of remote control operation, similar to other CNC machines.

    • LASER TYPE CO2
    NUMBER OF LASER HEADS 2
    MAXIMUM LASER POWER 2x160W (option*: 80W, 90W, 130W, 180W)
    MAXIMUM WORKING AREA 1600 mm x any / any x 1200 mm
    POSITIONING ACCURACY ±0.01 mm
    MECHANICAL RESOLUTION 0.0254 mm
    MAXIMUM POWER CONSUMPTION 1000W
    OPERATING TEMPERATURE 15–45 ℃
    Operating system Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit)
    Input file formats PLT, AI, DST, DXF, BMP
    Compatible software CorelDraw AutoCAD Photoshop
    Drive type Stepper motors
    Communication USB
    Tube cooling CW5200 chiller
    Material cooling air
    Dimensions 2200 x 1800 x 1020 mm
    Weight 500 kg

    Professional liquid chiller included

    It contains a cooling medium that, when the liquid reaches the alarm temperature, enables the built-in compressor to quickly cool the laser tube’s cooling system.

    Features of the LASER-1612ZD2 set

    • Honeycomb table — essential for cutting materials, its purpose is efficient smoke extraction.
    • Blade table — ideal for cutting materials such as plexiglass, aspect, etc.
    • Lower fume extractor performs the exhaust function.
    • Waste drawer
    • Electrically adjustable table controlled via the program and machine panel, lowering up to 300 mm, enabling engraving on tall objects.
    • “Red dot pointer” — precisely displays the laser beam’s working point, essential for positioning.
    • Integrated compressor — activated only during operation, used to protect the lens from contamination and to cool the cutting area.
    • 2 laser heads with 160W (option*: 80W, 90W, 130W, 180W).
    • Professional chiller.
    • USB communication allows connection to a laptop or desktop via USB port. The machine also features an LCD display for adjusting table height and other parameters.
    • USB port and built-in memory enable file transfer directly to the device without a computer.
    • USB memory 512MB for transferring files.

    U.S. II-VI optical lenses

    American optics by American Photonics. Proven 14% improvement in transmission compared to other optical systems. High-strength mirrors and aspheric focusing lenses manufactured by II-VI, USA.

    High sharpness and high transmittance. The lenses not only ensure device quality but also allow the optical system to operate for a long time with high efficiency and low maintenance cost.

    Dual platforms for cutting and engraving

    Includes both blade and honeycomb tables.

    Applications

    Wood, acrylic glass, plastic, textiles, paper, leather, rubber and other non-metallic materials.

    We are a certified supplier of RECI® CO₂ tubes

    CO₂ Laser Cutter and Engraver CORMAK LC1612ZD2 – Dual Head

    *The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

    Manufacturer: Cormak

    CORMAK JERZY ZALEWSKI
    Brzeska 120, 08-110 Siedlce, Poland
