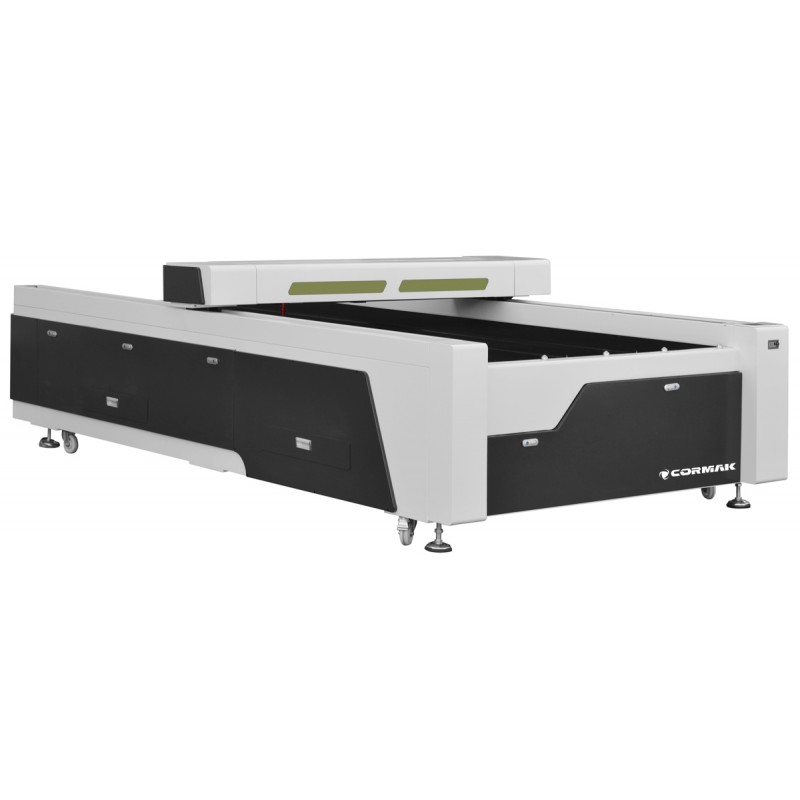

CO₂ Flatbed Laser Cutter and Engraver CORMAK LC1530EVO — large format, stable process conditions and perfect cutting edge
LC1530EVO is a CO₂ flatbed plotter designed for working with large-format sheets. The table structure and additional equipment facilitate processing of panels and series of components, while the advanced extraction and cooling system ensures stable process conditions. The result is consistent cutting and engraving quality, fewer corrections and better protection of key components (tube, optics, power supply).
We have used an optimised optical system with a stable beam geometry, ensuring uniform power even at the edges of the working field. This results in consistent cutting and engraving depth across the entire working area.
LC1530EVO is ideal for acrylic, plywood, laminates, plastics and rubber stamps. Typical applications include signs, 3D letters, packaging, diplomas, architectural models and precision engraving for personalised products.
RECI tube – quality and reliability
The machine uses a RECI CO₂ tube known for its stable power, long service life and consistent ignition. This guarantees a clean cutting edge and fewer stoppages in daily production.
LC1530EVO has been designed for continuous operation: the solid frame minimises vibration, while precise mechanics and careful cable management ensure smooth motion and repeatable results. The robust component fit, ergonomic control and integrated extraction system make daily operation easier and reduce setup time. A well-designed working area and clear markings improve operator comfort, while attention to build quality and details ensures a long lifetime of the device and its key parts (tube, optics, power supply), maintaining consistent quality over the long term.
What affects quality and service life
-
Stable cooling = stable beam power – maintaining temperature within the recommended range reduces power fluctuations and improves edge quality.
-
Efficient bottom fume extraction (with waste drawer) – fewer contaminants in the cutting zone, cleaner mirrors and lenses, lower risk of burns and residue build-up.
-
Two types of material support – knife table and honeycomb insert allow matching support to the task and material, reducing reflections and overheating at the edges.
-
Positioning aids – red dot pointer speeds up positioning and shortens setup times.
Applications
Cutting and engraving of non-metal materials (e.g. acrylic, plywood, wood, leather, plastics) in sheet or serial formats, where repeatability and edge cleanliness are required while maintaining safe operating conditions for the system.
| MAXIMUM LASER POWER |
160 W (RECI W6 tube) (option*: 60W, 80W, 90W, 130W, 180W) |
| WORKING AREA |
1500 x 3000 mm |
| DIMENSIONS |
3670 x 2150 x 1100 mm |
| POSITIONING ACCURACY |
± 0.1 mm |
| VOLTAGE |
230V |
| POWER |
1000W |
| OPERATING TEMPERATURE |
0–45 ℃ |
| OPERATING SYSTEM |
Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| INPUT FILE FORMATS |
PLT, AI, DST, DXF, BMP |
| COMPATIBLE SOFTWARE |
CorelDraw, AutoCAD, Photoshop |
| DRIVE TYPE |
Stepper motors |
| TUBE COOLING |
Chiller CW5200 |
| MATERIAL COOLING |
Air |
Professional liquid chiller included
Equipped with a cooling medium which, once the liquid reaches the alarm temperature, rapidly cools the laser tube system through the built-in compressor unit.
Features of the LASER-1530EVO set
- Honeycomb table indispensable for material cutting, designed for smoke extraction.
- Knife table ideal for cutting materials such as acrylic or aspect-type sheets.
- Dual-point lower fume extraction for efficient air removal.
- Waste drawer.
- “Red dot pointer” precisely indicates the working point of the laser beam — essential for positioning.
- Integrated compressor — activated only during operation, protects the lens from contamination and cools the material at the cutting point.
- Fume extraction fan.
- Laser head 160W (RECI W6 tube) (option*: 60W, 80W, 90W, 130W, 180W).
- Professional chiller CW5200.
- USB communication enables connection to a computer or laptop via USB port. The machine also features an LCD display allowing, among others, table height adjustment.
- USB port and built-in memory allow transferring work parameter files directly to the device without computer operation.
- 512MB USB memory for file transfer.
U.S. II-VI optical lenses
American optics from American Photonics. Proven 14% higher transmission compared to other optical systems. High-durability mirrors and aspheric focusing lenses manufactured by II-VI, USA.
High sharpness and transmission rate. These lenses not only ensure high device quality but also enable the optical system to operate efficiently over a long period with minimal maintenance costs.
SEE INSTRUCTIONAL VIDEOS
We are a certified supplier of RECI® CO2 tubes
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
