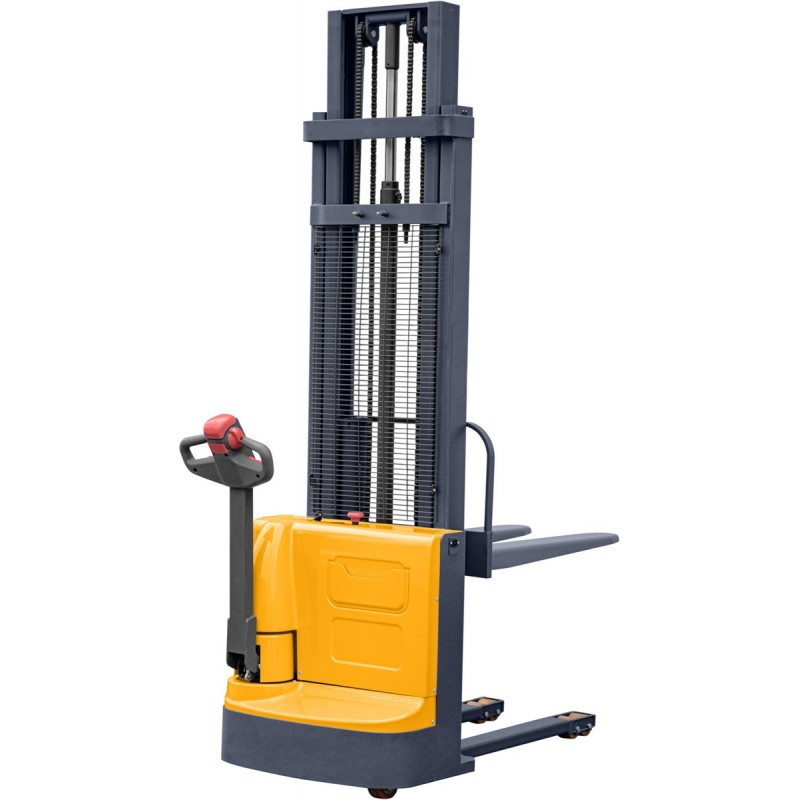

Electric Stacker Q12E35 – 1200kg Capacity, 3500mm Lift Height – Precision, Efficiency and Reliability for Heavy-Duty Warehouse Operations
The CORMAK Electric Stacker Q12E35 with a 1200 kg load capacity and 3500 mm maximum lift height is a professional-grade solution for warehouses, logistics centres, and manufacturing facilities. Equipped with a robust mast, a powerful lifting motor, and a modern electric drive system, this model ensures reliability, operator safety, and top-level productivity in daily operations.
Main advantages of the Q12E35 electric stacker
- Load capacity up to 1200 kg – perfect for handling a wide range of palletised goods.
- 3500 mm lift height – ideal for medium and high-level racking operations.
- 2 kW lift motor – fast and stable lifting even under maximum load.
- Electromagnetic brake – ensures safe stopping and precise control during operation.
- AGM battery 12V 75/110 Ah – maintenance-free power source with long runtime and short charging cycle.
- Compact dimensions – allows smooth manoeuvring in narrow aisles and tight warehouse spaces.
Design and technology
The stacker’s structure is engineered for durability, ergonomics and ease of use. The 4000 mm mast (fully raised) is made from high-strength steel profiles, ensuring rigidity and load stability. The 1150 mm long forks with 570 mm outer width are designed to fit standard Euro pallets, making handling quick and efficient.
The 0.75 kW drive motor works with an advanced control system, ensuring smooth driving both with and without load – up to 3.5 km/h loaded and 4 km/h unloaded. Polyurethane wheels reduce noise and provide excellent grip, even on sensitive or uneven floors.
Precision and performance
The CORMAK Q12E35 offers an optimal balance between performance and compact size. A turning radius of 1390 mm allows operation in narrow aisles. With a lifting speed of 140 mm/s (with load) and 200 mm/s (without load), plus a lowering speed of 120/100 mm/s, the stacker ensures smooth and controlled material handling in all warehouse environments.
The 5–7% gradeability extends its usability on ramps and slightly inclined surfaces. Its low-profile chassis with 30 mm ground clearance provides stability and reduces the risk of tipping during heavy lifting operations.
Applications
The Q12E35 electric stacker is ideal for use in:
- High-bay warehouses
- Distribution and logistics centres
- Internal transport and manufacturing lines
- Industrial production facilities
- Construction depots and technical wholesalers
Its versatility, robust design and precise control make it the perfect tool for demanding warehouse environments requiring fast cycles and high accuracy.
Standard equipment
- AGM battery 12V 75/110 Ah
- Electromagnetic brake system
- Full-visibility mast up to 3500 mm
- 1150 mm forks suitable for Euro pallets
- Drive motor 0.75 kW and lifting motor 2 kW
- Durable polyurethane wheels for quiet operation
Technical specifications
| MAX LIFTING HEIGHT |
3500 mm |
| LOAD CAPACITY |
1200 kg |
| LOAD CENTRE |
600 mm |
| FORK LENGTH |
1150 mm |
| OUTER FORK WIDTH |
570 mm |
| HEIGHT WITH LOWERED MAST |
2330 mm |
| HEIGHT WITH RAISED MAST |
4000 mm |
| LOWERED FORK HEIGHT |
85 mm |
| TOTAL WIDTH |
810 mm |
| TOTAL LENGTH |
1745 mm |
| GROUND CLEARANCE |
30 mm |
| TURNING RADIUS |
1390 mm |
| TRAVEL SPEED (with/without load) |
3.5 / 4 km/h |
| LIFTING SPEED (with/without load) |
140 / 200 mm/s |
| LOWERING SPEED (with/without load) |
120 / 100 mm/s |
| GRADEABILITY (with/without load) |
5 / 7 % |
| BRAKE TYPE |
electromagnetic |
| DRIVE MOTOR POWER |
0.75 kW |
| LIFT MOTOR POWER |
2 kW |
| BATTERY VOLTAGE / CAPACITY |
12V 75 / 110 Ah |
| WHEEL MATERIAL |
Polyurethane |
| WEIGHT |
546 kg |
