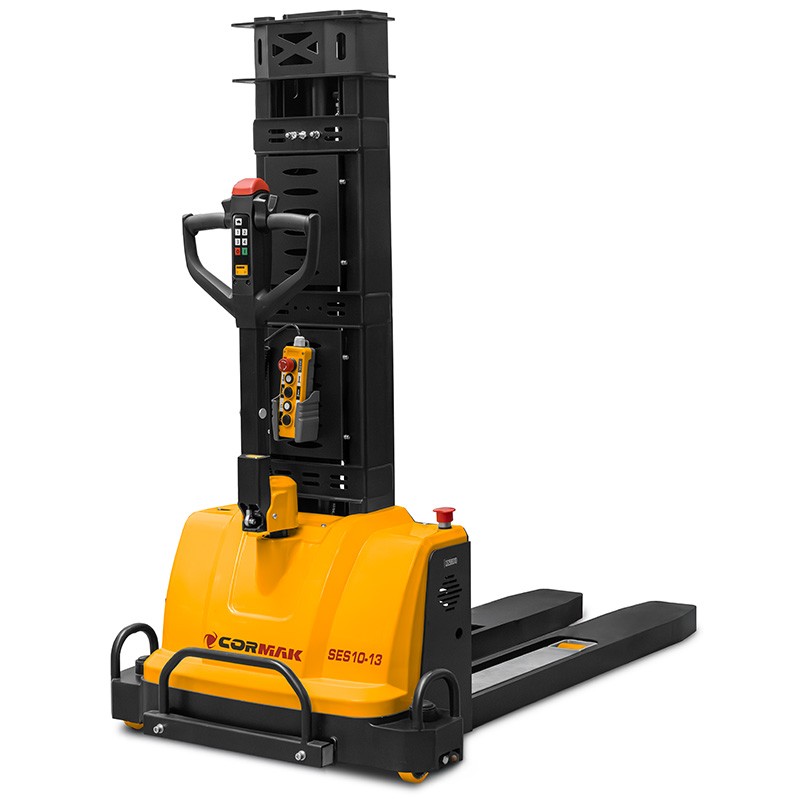

Self-Loading Pallet Truck 1000 kg / 1300 mm – Electric Pallet Lifter
The self-loading pallet truck with a load capacity of 1000 kg and lifting height of 1300 mm is a versatile and highly practical device for internal transport and independent goods loading. This model is ideal wherever a compact pallet truck with lifting function is required, capable of safely raising pallets, crates and loads onto platforms, shelving or directly into delivery vehicles.
Thanks to electric drive and electric lifting, the truck significantly reduces operator effort, speeds up work and improves ergonomics in daily warehouse operations.
Functionality and Capabilities
The device combines the features of an electric pallet truck, stacker and self-loading truck, eliminating the need for ramps, lifts or additional handling equipment. The 1000 kg load capacity allows handling of most standard pallets, while the 1300 mm lifting height enables convenient placement of goods at working level, on shelving or transport platforms.
It is an ideal solution for companies seeking a mobile, economical and safe alternative to a forklift truck in light and medium-duty work.
Self-Loading Truck for Vans and Delivery Vehicles
This 1000 kg self-loading pallet truck performs perfectly as a pallet truck for vans and delivery vehicles, enabling independent loading and unloading of pallets without the use of ramps or tail lifts. With a lifting height of 1300 mm, the truck allows safe placement of loads directly onto the vehicle load bed.
The model is compatible with popular van and light truck vehicles such as Mercedes Sprinter, Iveco Daily, Renault Master, Fiat Ducato, Peugeot Boxer, Citroën Jumper and other delivery vehicles with similar loading height.
Compact Design and Mobility
Compact dimensions, stable construction and electric lifting make the truck also ideal as a pallet truck for vans, service vehicles and for pallet transport in the field. This solution is particularly recommended for transport, service, installation and trading companies.
Main Advantages of the 1000 kg Self-Loading Truck
- Load capacity up to 1000 kg – ideal for EURO pallets and standard loads
- Lifting height 1300 mm – convenient placement of goods on shelving and platforms
- Electric drive and lifting – minimal operator effort
- Compact construction – ideal for work in confined spaces
- Precise tiller control – full control over the load
Ideal for Self-Loading and Transport
The truck has been designed for independent loading onto vans, goods lifts and working platforms. Stable construction and a low centre of gravity ensure safe operation even at maximum load.
Safety and Ergonomics
- robust mast ensuring stable lifting
- emergency STOP button
- ergonomic control handle
- quiet operation – ideal for indoor use
Applications
- warehouses and wholesalers
- large retail stores
- logistics facilities
- transport and service companies
- production and order picking
Technical Parameters
| Load capacity |
1000 kg |
| Load centre distance |
400 mm |
| Wheelbase |
980 mm |
| Front wheel |
fi 190x70 mm |
| Rear wheel |
fi 80x70 mm |
| Additional wheel |
fi 75x35 mm |
| Height with mast lowered |
1450 mm |
| Lifting height |
1000 mm |
| Height with mast raised |
2480 mm |
| Fork height lowered |
90 mm |
| Truck length |
1730 mm |
| Truck width |
920 mm |
| Fork dimensions |
195x70 mm |
| Fork length and spacing |
1220x560 mm |
| Ground clearance |
10 mm |
| Turning radius |
1180 mm |
| Travel speed |
4 km/h |
| Lifting speed |
0.06 m/s |
| Lowering speed |
0.1 m/s |
| Drive motor |
0.85 kW |
| Lifting motor |
2.2 kW |
| Battery |
48V / 25 Ah |
| Weight |
430 kg |
Why Choose This Truck?
If you are looking for a 1000 kg self-loading pallet truck that combines reliability, ease of operation and compact dimensions, this model will be the ideal choice. It is an excellent alternative to a traditional forklift truck wherever mobility and space saving are essential.
FAQ – Self-Loading Pallet Truck 1000 kg / 1300 mm
Is this a self-loading truck for vans?
Yes. The truck has been designed for independent loading and unloading of pallets into vans and delivery vehicles without the need for ramps or tail lifts.
Which vans is this self-loading truck compatible with?
The truck is suitable for popular delivery vehicles such as Mercedes Sprinter, Iveco Daily, Renault Master, Fiat Ducato, Peugeot Boxer, Citroën Jumper and other vehicles with a similar load compartment height.
Can the truck enter a van with a pallet?
Yes, the compact construction and standard fork length allow convenient entry into a van load compartment together with a pallet.
Does the truck require a loading ramp?
No. It is a self-loading truck that enables lifting the load directly to the height of the vehicle load bed.
Is the truck difficult to operate?
No. The truck features an intuitive control tiller, and both lifting and travel are electrically powered, which significantly facilitates daily operator work.
Can the truck be used in a warehouse?
Yes. The truck performs perfectly both as a van pallet truck and as an electric warehouse truck for transporting and lifting pallets.
What is the maximum load capacity?
The maximum load capacity is 1000 kg, allowing handling of most standard pallets and loads.
Can it replace a forklift truck?
In many applications, yes. It is an economical alternative to a forklift truck in light and medium-duty work, especially where mobility and limited space are important.
Can it replace a tail lift?
In many applications, yes. The 1000 kg self-loading pallet truck enables independent pallet loading, often eliminating the need to install an expensive tail lift.
Is the truck electric?
Yes. It is an electric self-loading pallet truck – both lifting and travel are electrically powered, significantly reducing operator effort.
What pallets can be handled?
The truck is designed for handling EURO pallets and standard industrial pallets up to a maximum load capacity of 1000 kg.
Can one person operate the truck?
Yes. The truck is designed for single-operator use, without the need for additional equipment or assistance from a second operator.
Is it suitable for mobile and field work?
Yes. It is an ideal truck for mobile transport, service, installation and trading companies that regularly transport pallets in vans.
