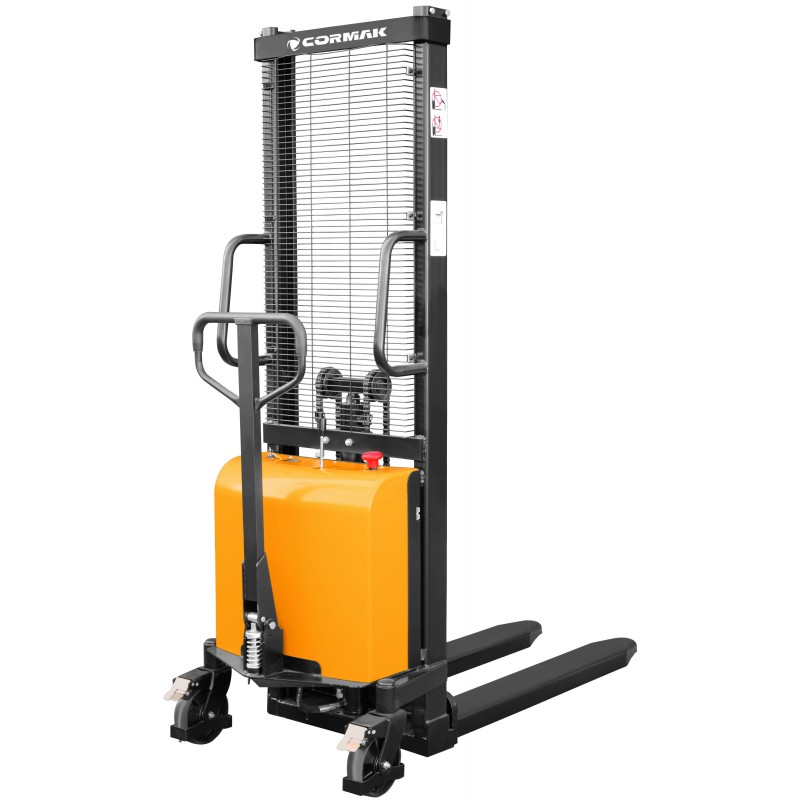

Semi-Electric Pallet Stacker B1516 – 1,500 kg capacity, lifting height up to 1,600 mm

B1516 is an advanced semi-electric pallet stacker that combines robust construction, a high load capacity of 1,500 kg and a precise electric lifting system with a lifting height of 1,600 mm. Designed for demanding industrial, warehouse and distribution environments, this model provides full load control while reducing operator effort and improving safety and efficiency in logistics operations.

Key advantages of the machine

• 1,500 kg load capacity – handling heavier loads compared to standard 1,000 kg models.
• Lifting height of 1,600 mm – ideal for low- and medium-level racking.
• Electric lifting system – ensures smooth, precise and fast operation.
• Manual travel control – facilitates manoeuvring in narrow spaces and confined aisles.
• Maintenance-free AGM battery 12V 135Ah – sealed, vibration-resistant, no electrolyte topping-up required.
• Battery protection system – safeguards against overload, discharge and overheating.
• Polyurethane rollers – low noise levels, high wear resistance and safe for industrial floors.
• No mandatory warranty inspections – genuine reduction in service costs and operational downtime.

Design and technology

The B1516 stacker has been engineered with a reinforced steel frame to ensure high rigidity and stability when operating at maximum load capacity. The lifting system is based on a reliable electric actuator powered by a 12V 135Ah AGM battery, providing long operating time and low running costs.

The lifting structure allows easy access to service components, simplifying maintenance and increasing system durability. Thanks to its compact dimensions – overall width of 800 mm – the B1516 performs exceptionally well in confined working areas, while manual travel control allows precise manoeuvring.

Performance and ergonomics

Lifting and lowering speeds of up to 120 mm/s ensure fast and smooth work cycles, resulting in time savings and improved productivity. The operator retains full control over fork movement without physical strain, enhancing user comfort and reducing the risk of overload and injury.

The battery charge level indicator allows continuous monitoring of power status, helping to prevent unexpected downtime. Ergonomically positioned controls and a low turning radius of 1,430 mm further facilitate operation in dynamic warehouse environments.

Applications

The B1516 model is used wherever there is a need for fast, safe and precise handling and storage of heavier loads:

• logistics and distribution warehouses,
• industrial and manufacturing plants,
• retail distribution centres and wholesalers,
• handling of racking systems and loading ramps,
• internal transport in cold stores and enclosed halls.

Standard equipment

• AGM battery 12V 135Ah
• Battery protection system
• Battery charge indicator
• Forks 1,150 mm
• Polyurethane wheels and rollers
• Overload valve system
• Manual travel system

Technical specifications :

Order the semi-electric pallet stacker B1516 – increase safety and work efficiency

If you are looking for a robust, efficient and ergonomic pallet stacker with a higher load capacity, the B1516 is the optimal solution for your business. Thanks to its well-engineered design and maintenance-free operation, this machine delivers long-term performance without downtime. Order online or contact a technical consultant to discover the full capabilities of the B1516.
