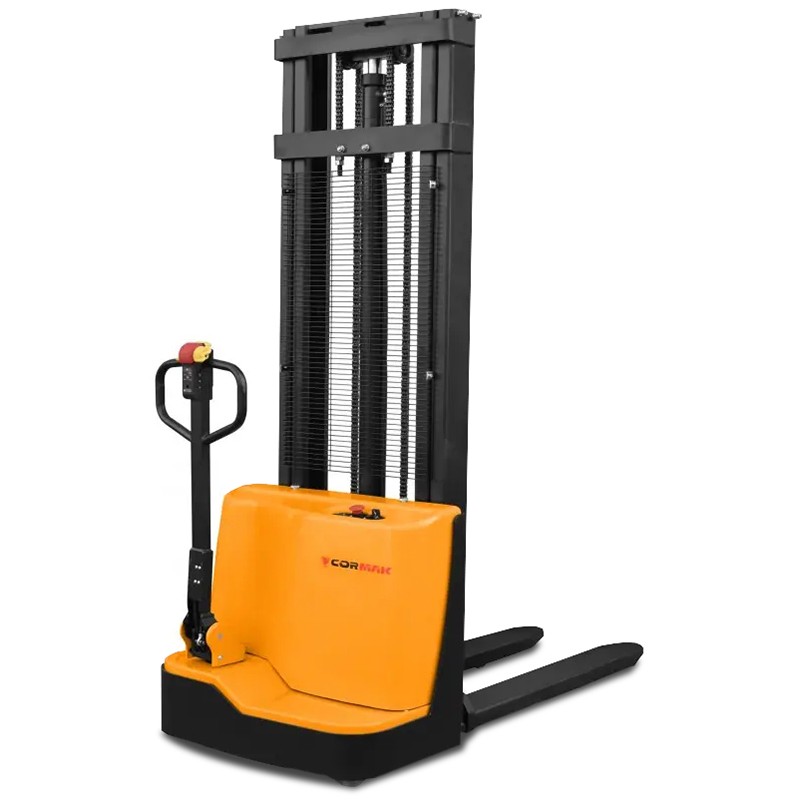

Electric Pallet Stacker Q10E33 – Precise Handling of Loads up to 1000kg

The Q10E33 electric pallet stacker is a professional material-handling machine with a 1000kg load capacity and a maximum lifting height of 3300mm. Designed for efficiency, safety, and full operator control, it is ideal for warehouses, logistics centres, and industrial facilities. Key advantages include a maintenance-free AGM battery, modern protective electronics, and a compact, ergonomic design.

Main Advantages

• Load capacity up to 1000kg – safe transport of heavy materials.
• 3300mm lifting height – ideal for high-rack warehouse operations.
• Sealed AGM battery – maintenance-free, durable, and long-lasting.
• Built-in charger – convenient charging without external equipment.
• Battery management system – protection against over-discharge and overload.
• Turtle mode – precise control in tight spaces.
• Electromagnetic brake – reliable stopping even at full load.
• Polyurethane rollers – quiet operation, low rolling resistance, and excellent durability.
• No required warranty inspections – lower maintenance costs and reduced downtime.

Construction and Technology

The Q10E33 features a robust steel chassis ensuring rigidity and stability even under full load. The polyurethane wheels provide low noise and high wear resistance, allowing operation on delicate industrial floors and in production halls.

The 0.65kW drive motor and 2kW lift motor deliver optimal performance and precise fork control. The lifting system operates smoothly without jerks, increasing load safety and operator comfort. The integrated electronic controller protects the 12V 85Ah batteries from overcharging or deep discharge.

Precision and Work Efficiency

The Q10E33 is designed for continuous daily operation. With a travel speed up to 4.0km/h (unloaded) and a turning radius of only 1390mm, it offers excellent manoeuvrability in narrow aisles. The smooth lift/lower system ensures quick and safe load handling.

Advanced control features such as turtle mode and a speed controller enable precise movements in busy environments. The integrated “belly” safety switch prevents collisions when operating close to the machine.

Applications

The CORMAK Q10E33 electric pallet stacker is ideal for:

• warehouse and wholesale pallet handling,
• high-rack storage operations,
• internal logistics in production facilities,
• loading and unloading zones in distribution centres,
• use in cold storage and enclosed areas (zero emissions).

Standard Equipment

• Maintenance-free AGM battery – 2 × 12V 85Ah
• Built-in charger
• Electromagnetic brake
• Battery protection controller
• Battery charge level indicator
• “Belly” safety switch
• Turtle driving mode
• Polyurethane wheels and rollers

Technical Parameters

Polyurethane Wheels and Rollers

Polyurethane wheels and rollers ensure quiet operation, high abrasion resistance, and excellent grip on different surfaces. They are ideal for indoor use where low noise and floor protection are required.

Choose Quality and Performance – Order the Q10E33 Today

By choosing the CORMAK Q10E33 electric pallet stacker, you invest in durability, safety, and operator comfort. The machine requires no warranty inspections, reducing maintenance costs and downtime. A perfect choice for companies that value high quality and reliability. Contact our technical consultant or place your order online today.
