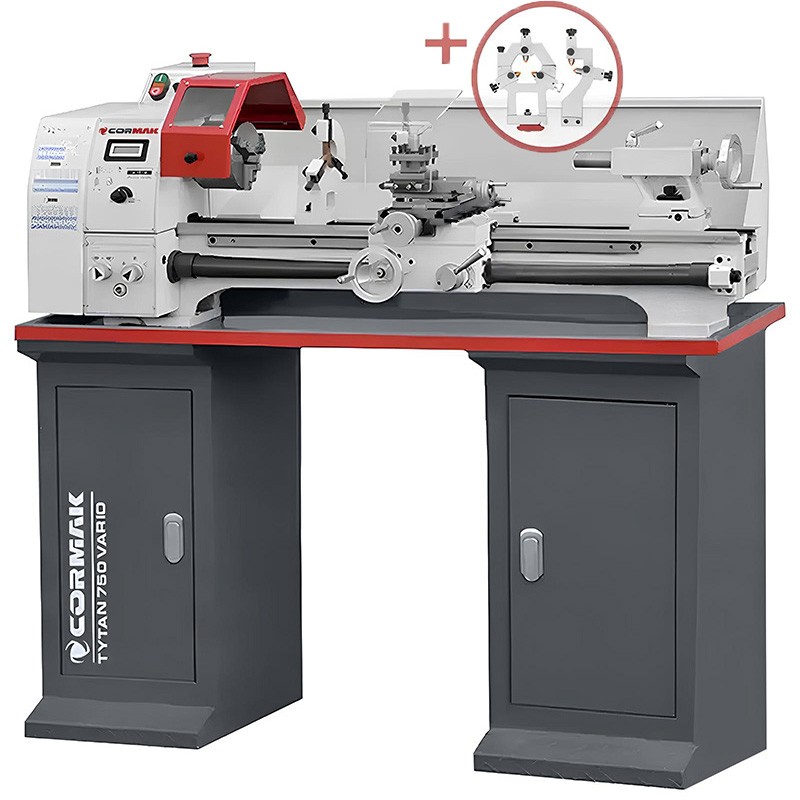

Conventional Universal Lathe CORMAK TYTAN 250x750 VARIO 230V
The TYTAN 750 VARIO 230V metal lathe features smooth spindle speed control. Working parameters: 250 × 750 mm, DC motor: 1.1kW / 230V. Designed for machining external and internal cylindrical surfaces, threading, drilling, countersinking, and reaming. Ideal for small industrial plants, workshops, or home garages.
Variant
Conventional Universal Metal Lathe CORMAK TYTAN330 330x700 with Stand, Cutting Tools and Live Centre
Conventional Universal Lathe CORMAK TYTAN 250x750 PRO 400V
Conventional Universal Metal Lathe CORMAK TYTAN330L 330x915 400V with Stand, Cutting Tools and Live Centre
Conventional Universal Lathe CORMAK TYTAN 220x750S VARIO 230V
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€1,596.25
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine description:
Universal lathe TYTAN 750 PRO (VARIO) 230V with smooth spindle speed regulation is an ergonomic machine tailored to user needs. Shortened setup time for machining parts of various dimensions increases efficiency and ease of operation.
VARIO version – electronic, stepless spindle speed control via DC motor and voltage regulator ensures excellent rotational accuracy of the chuck, resulting in a higher surface quality of machined components.
Main advantages:
- Modern DC motor with variable spindle speed control provides convenience and shortens setup time.
- LCD display showing spindle speed allows quick adjustments during cutting and threading.
- Two spindle speed ranges: low (50–1125 rpm) for machining hard steels and high (100–2250 rpm) for precise finishing operations.
- Thread cutting: metric – 18 steps (0.2–3.5 mm), inch – 21 steps (8–56 TPI); capability for both right- and left-hand threads.
- Automatic longitudinal feed with 6 speed settings (0.07–0.40 mm/rev) reduces machining time without compromising quality during long-part turning.
- Fully compliant with EU directives (CE) and DIN industrial standards.
OPTIONAL SET OF TURNING TOOLS 12 × 12 mm (11 pcs) |
OPTIONAL LIVE CENTRE MK2 |
|
|
|
Technical specifications
| 3-jaw chuck | 125 mm |
| Max. turning diameter over bed | 250 mm |
| Turning diameter over cross slide | 150 mm |
| Turning length between centres | 750 mm |
| Max. workpiece length (chuck/tailstock) | 700 mm |
| Bed width | 135 mm |
| Tool post dimensions | 65 × 65 × 20 mm |
| Max. tool size | 12 × 12 mm |
| Spindle bore | 30 mm |
| Spindle taper | MK4 |
| Spindle speed control | Stepless (L/H) |
| Spindle speed | L: 50–1125 / H: 100–2250 rpm |
| Metric threads (number and range) | (18) 0.2–3.5 mm/rev |
| Inch threads (number and range) | (21) 8–56 TPI |
| Longitudinal feeds (number and range) | (6) 0.07–0.4 mm/rev |
| Top slide travel | 70 mm |
| Longitudinal travel | 650 mm |
| Cross slide travel | 135 mm |
| Tailstock sleeve diameter | 30 mm |
| Tailstock sleeve travel | 60 mm |
| Tailstock taper | MK2 |
| Motor power S1/S6 | 1.1 / 1.32 kW / 230V |
| Dimensions L/W/H (without stand) | 1310 × 610 × 490 mm |
| Dimensions L/W/H (with stand) | 1350 × 560 × 1250 mm |
| Weight (without stand) | 165 kg |
| Weight (with stand) | 180 kg |
Standard equipment
- 3-jaw chuck (125 mm)
- Fixed and travelling steady rests
- Change gears
- Dead centres MK2 and MK4
- Left and right jaws (1 set)
- Oil gun
- Chip tray
- Keys for chuck and tool post
- Service tool kit
- Safety guards compliant with CE
- User manual
- CE Declaration of Conformity
Optional equipment
- Machine stand
- 12 × 12 mm turning tool set (11 pcs with brazed inserts)
- Live centre MK2
- Drill arbor MK2/B16
- Drill chuck B16 3–16 mm
- HSS-Co5 cobalt drill set (1–13 mm)
- Universal coolant system
- Cutting oil ES-12 (1L)
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
