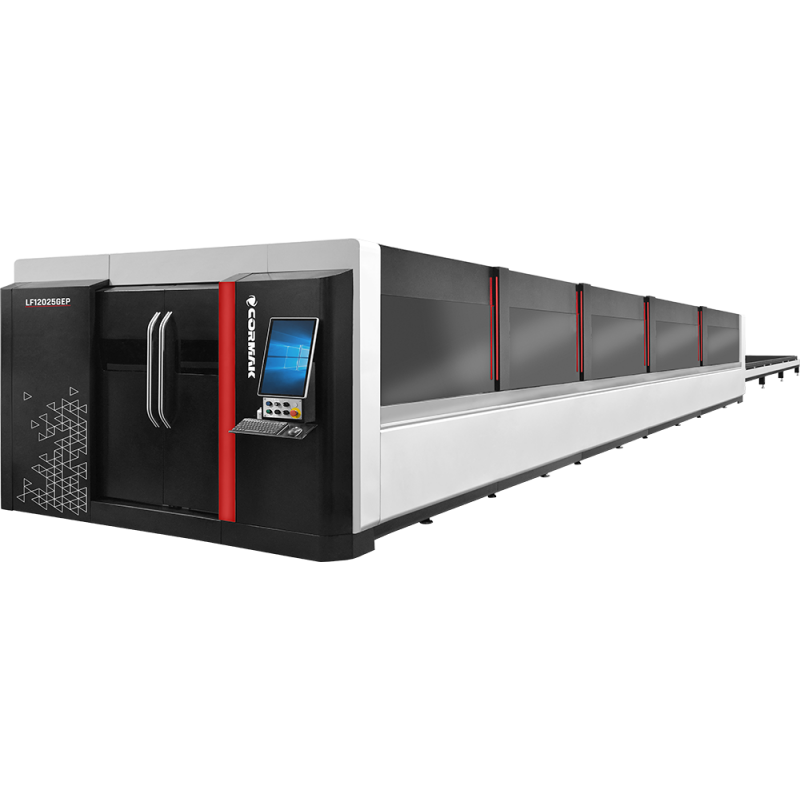

Fibre laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology but also feature many benefits that allow production expansion (up to 70%) and improved quality. FIBER technology enables cutting sheets and other materials of various thicknesses — from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres. These properties result in intensity that is 100 times higher than in CO2 systems of comparable power.
Main advantages of the laser:
- reliable optical fibre,
- no wearing parts,
- fibre laser source takes up about one-third less space,
- high energy efficiency – 100,000 h of operation,
- versatile use (special steels, mild steel, stainless steel, copper, brass, aluminium, titanium).
Fibre laser
- increases work efficiency by 80%,
- reduces maintenance costs by 70%,
- saves 80% energy,
- minimises gas consumption,
- saves 30% of floor space.
Safety and cleanliness
- fully enclosed laser housing,
- observation window with CE-certified laser safety glass,
- fumes generated during cutting are filtered inside, keeping the environment clean.
Sliding gantry made of aged aviation aluminium
The gantry structure is made of aged aviation aluminium, formed with a pressure of 4,300 tonnes, ensuring exceptional rigidity. Aviation aluminium offers many advantages: higher stiffness (greater than cast iron), low weight, corrosion and oxidation resistance, and excellent machinability.
Exchangeable working table
The exchangeable working table consists of upper and lower platforms, whose movement and exchange are controlled by the controller. The machine can complete the platform exchange within 15 seconds.
Welded bed made of rectangular profiles
The bed structure features an internal honeycomb-like design made of numerous welded rectangular tubes. Inside the tubes are stiffeners that increase bed strength and enhance guide rail rigidity and stability to effectively prevent deformation. High strength, stability and tensile resistance guarantee 20 years of operation without deformation.
Raytools cutting head
- Automatic focus adjustment – autofocus. The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The autofocus adjustment speed is ten times faster than manual adjustment.
- Extended manual adjustment range – adjustment range -10 mm to +10 mm. Accuracy of 0.01 mm allows operation with materials of various thicknesses (0–20 mm) – below 1500W power.
- Long service life. The collimating and focusing lenses have a water-cooled heat sink that lowers the cutting head temperature to extend its lifespan.
Technical parameters
| WORKING AREA |
2500x12000
|
| POWER |
1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W
|
| REPEAT POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
120 m/min |
| MAXIMUM ACCELERATION |
1.5G |
| POWER SUPPLY |
400V 50Hz |
Cutting parameters
Actual parameters may vary depending on technical conditions and materials used.
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
