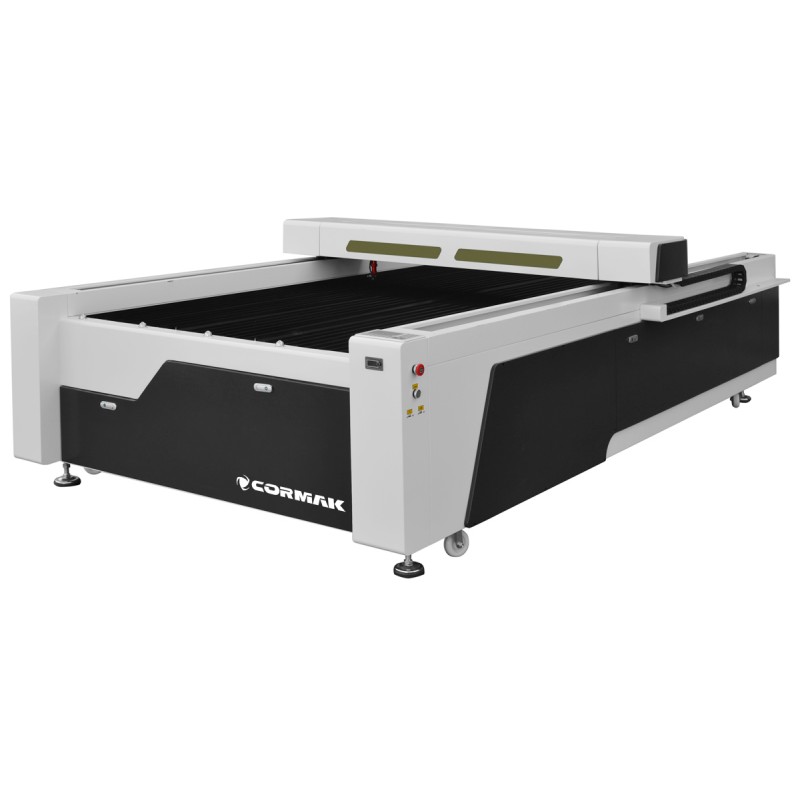

LC2040EVO WiFi CO2 Laser Plotter

LASER CUTTING PROCESS

Laser cutting is a modern and widely used technique of material processing. The cutting tool in this technique is a high energy density laser beam that cuts through the material. Laser cutting is suitable for the processing of metal, non-metal and composite materials. It is therefore quite popular.

The course of the laser cutting process

The laser cutting process is based on the effect of the laser beam at its focal point, where the beam artifact density and its power are the highest, causing rapid melting, evaporation, ablation and heating of the cut material to the ignition temperature. The place of the beam incident on the material is washed with a fast flowing gas which, while flowing along the beam incidence axis, removes the molten material. Laser cutting is one of the techniques of hot processing of materials.

Professional liquid cooler included

It has a cooling agent, thanks to which, when the liquid reaches the alarm temperature, the built-in unit cools down the cooling system of the laser tube very quickly.

Characteristics of the LASER-2040 EVO set

• Scissor table ideal for cutting materials such as: plexiglass, aspet etc.
• The two lower exhaust extractors perform the function of extraction
• Waste drawer
• "Red point" , its task is to precisely display the workplace of the laser beam - necessary for positioning.
• Integrated compressor activated only for work, used to protect the lens against dirt and to cool the currently cut area of ​​the material.
• Fan for exhaust gas extraction.
• Laser head 160W (RECI W6 tube) (option: 80W, 100W, 130W, 180W) .
• Professional cooler.
• USB communication allows you to connect the machine also to a notebook computer via the USB port. In addition, the machine has an LCD display from which you can, among others to adjust the height of the table.
• USB input in the machine and built-in memory allow you to transfer files with operating parameters directly to the device without using a computer.
• USB stick 512MB for file transfer

U.S II-VI optical lenses

American optics from American Photonics. Proven 14% improvement in transmission compared to other optics. High-strength gold-plated lenses and aspherical focusing lenses made by II-VI, USA.

High sharpness, high transmittance. The lenses can not only ensure the quality of the device, but also make the optical system work for a long time with high efficiency and low cost.

Usage

The machine can meet the demands of cutting and engraving large amount of garment fabrics, leather, wood, acrylic, paper and other materials.

We are a certified supplier of RECI® CO2 tubes
