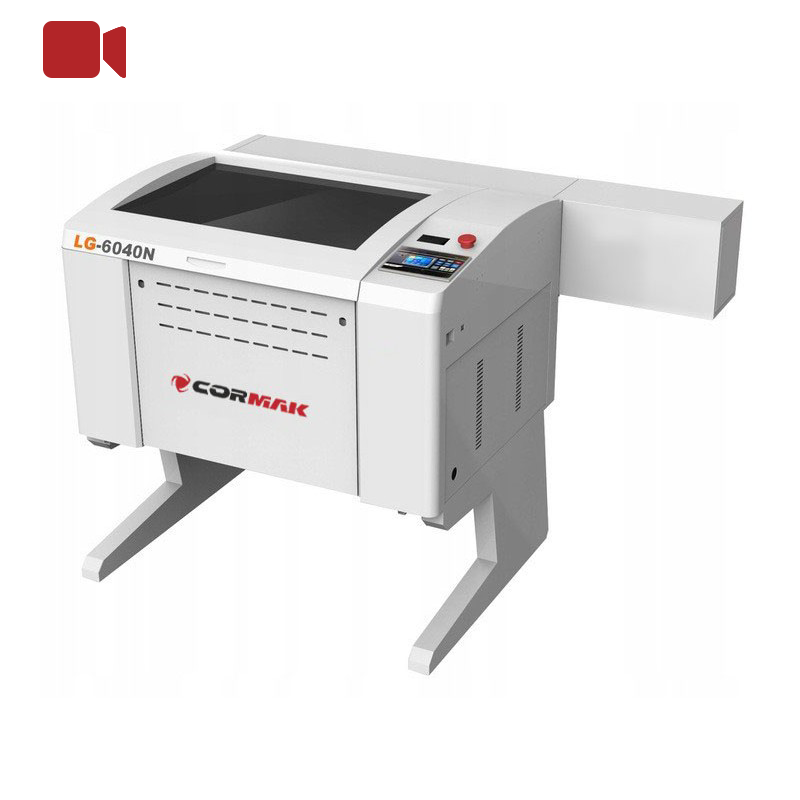

LG6040 CO2 WiFi Laser Plotter
Perfect for engraving, marking, cutting.
The working area of the laser plotter is 600×400 mm.
The price of the plotter includes, among others: a red spot, a honeycomb layout patch as well as a scissor lifting table and an extractor of fumes, a container for waste, an integrated compressor, a fan and a cooling system.
Are you a member of the VIES group?
VAT included
€3,992.50
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
The process of laser cutting
Laser cutting is a modern and widely used technique of machining materials. The cutting tool in this technique is a laser beam of high density energy, which cuts the material. Laser cutting is a great choice for machining metal, non-metal and composite materials. Thus, it is quite popular.
The course of the process of laser cutting
The process of laser cutting is based on the phenomenon of the laser beam working at its focal length, where the density and power of the beam particles are the highest, causing sudden melting, evaporation, ablation and heating of the material cut to the temperature of ignition. The place of the beam connecting with the material is cleaned with a quickly flowing gas, which removes the melted material while flowing in the axis of the moving beam. Laser cutting belongs to the hot machining techniques.
| Laser power | 90W (RECI W1 tube) (optional: 60 W) |
| Cutting area | 600×400 mm |
| Dimensions | 1360 x 850 x 950 mm |
| Cutting speed | 0–36 000 mm / min |
| Positioning accuracy | ± 0.05 mm |
| Voltage | 230V |
| Power | 1000W |
| Temperature of work | 0–45 ℃ |
| Humidity during work | 5–95% |
| Operating system | Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| Format of input files | PLT, AI, DST, DXF, BMP |
| Compatible software | CorelDraw AutoCAD Photoshop |
| Type of drive | stepper motors |
| Head cooling | water |
| Material cooling | air, gas |
II-VI Optical Systems optical lenses
American optics from American Photonics.
A proven improvement of transmission efficiency of 14% in comparison to other optical systems. High durability gold-plated lenses and focusing aspheric lenses manufactured by II-VI Optical Systems company.
High sharpness and permeability. These lenses not only ensure the high quality of the device, but also long-term efficiency and low handling costs of the optical system.
Double platforms for cutting and engraving
Knife cutting table and Honeycomb pattern table.
Application
Wood, acrylic glass, plastics, clothing, paper, skin, rubber and other non-metal materials.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
