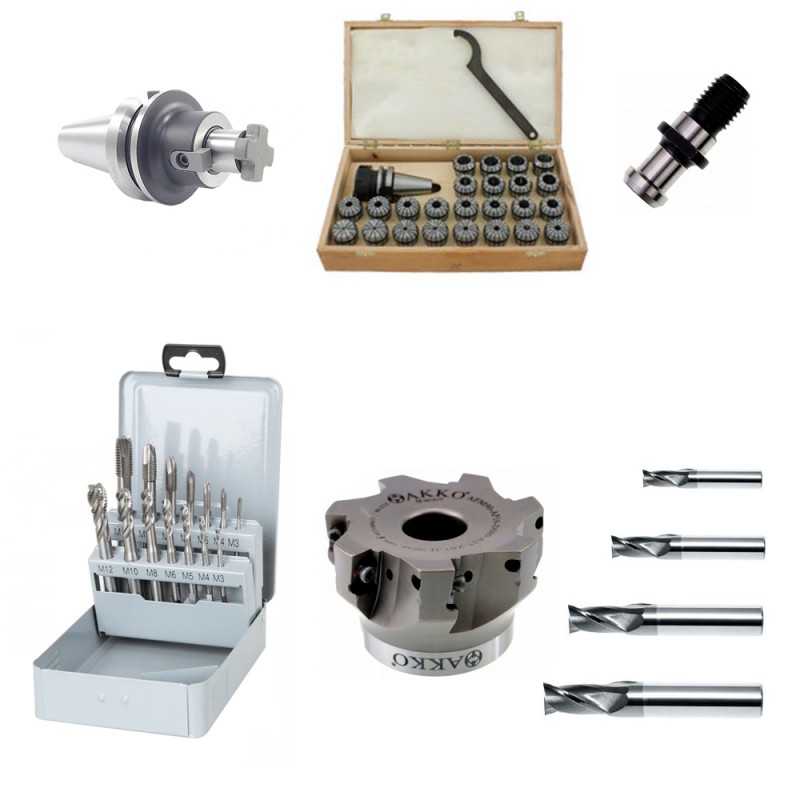

Starter Tool Set CORMAK BT40 for Machining Centres

BT40 Starter Set – Complete CNC Tool Package

BT40 Starter Set is a comprehensive tool package designed for machining centres with BT40 taper holders. It includes a BT40-ER32 collet chuck, end mills, face milling head, APKT inserts, BT40 arbor, and machine taps for M3–M12 threads. This set provides all the essential tools to start machining immediately.

Advantages of the Set:

• High-quality workmanship and durable components
• Solid and reliable construction
• Full compatibility between all components
• Convenient storage case for easy handling and transport
• Repeatable, accurate, and reliable machining performance

Applications:

The BT40 Starter Set is the perfect solution for workshops and production facilities looking to quickly and efficiently start machining or upgrade their tooling setup. With its complete package, it ensures readiness for operation from day one.

Investing in the BT40 Starter Set provides convenience, reliability, and full compatibility in a single, complete tooling package.

BT40-ER32 Collet Chuck with 18 Collets (Range 2–20 mm)

End Mills DIN 6527 (Ø6, Ø8, Ø10, Ø12)

D	d	L	l
6	6	54	10
8	8	58	12
10	10	66	14
12	12	73	16

Face Milling Head AFM90-AP16-D080-A27-Z07

APKT1604 Inserts for Steel (10 pcs)

Insert length (l) – 16.00 mm Insert thickness (s) – 4.76 mm Corner radius (re) – 0.80 mm

BT40-A27 Arbor

K 7:24	d (mm)	A (mm)	l (mm)	d1 (mm)
40	27	52	21	48

Pull Studs (2 pcs)

Size	L	b	M	L1	L2	L3	D1	D2	D3	D4	S
40	60	45	M16	4	35	28	15	10	23	17	19

Machine Taps for Through and Blind Holes M3–M12
