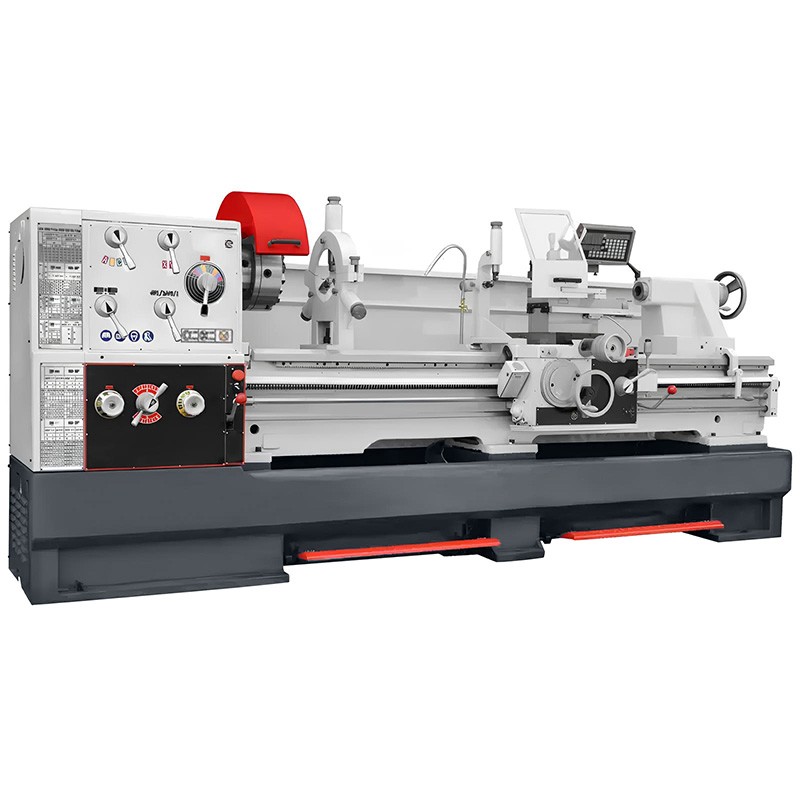

Conventional Universal Lathe CORMAK 660x2000

The CORMAK 660 x 2000 universal lathe is a heavy-duty industrial conventional lathe designed for precision metal machining in production plants, toolrooms and maintenance workshops. The construction, based on a massive hardened bed and powerful 7.5kW spindle drive, ensures high working stability, dimensional repeatability and a long machine service life even under intensive operation.

Main advantages of the CORMAK 660 x 2000 universal lathe

• Electromagnetic foot brake guarantees the highest level of safety and significantly reduces downtime, enabling the lathe to be stopped quickly and reliably.
• Rapid longitudinal and cross feeds, which significantly shorten tool travel time, increasing machining efficiency and operator comfort
• Universal application – external and internal turning, tapers, threading (metric, imperial, module, DP), drilling, broaching and polishing.
• Hardened and ground cast-iron bed with a width of 350 mm, ensuring maximum vibration reduction and high machining accuracy.
• Large Ø105 mm spindle bore and D1-8 spindle nose enable the machining of shafts and large-diameter components.
• High drive power – the 7.5/9kW spindle motor guarantees stable operation during heavy cutting operations.
• Wide thread range without the need to change change gears – saving time and providing greater production flexibility.
• 3-axis digital readout (DRO) increasing setting precision and control of the turning process.

Construction and technology

The lathe body is made from high-grade cast iron, which provides a high net weight (approx. 3,190 kg) and effective vibration damping. The headstock is fitted with a reinforced bearing system, ensuring stable operation across the full speed range from 25 to 1,500 rpm. The central feed switching system, lead screw and feed shaft enable precise threading as well as automatic longitudinal and cross feed.

The spindle gearbox, based on hardened and ground gears, ensures long-term, trouble-free operation. The ergonomic control panel allows quick adjustment of operating parameters without interrupting the machining process.

Precision and working efficiency

The CORMAK 660 x 2000 metal lathe has been designed for accurate and repeatable machining of workpieces up to 2,000 mm long. The rapid feed system significantly shortens cycle time, while the removable gap in the bed enables turning of components up to 885 mm in diameter. The thread dial allows the carriage to return quickly without losing synchronisation, which is crucial when producing precision threads.

Application

This universal lathe is used in single-piece and small-batch production, toolrooms, mechanical workshops, repair plants and maintenance departments. It is suitable wherever a robust conventional lathe is required for intensive machining of steel, cast iron and non-ferrous metals.

Standard equipment

• 3-axis digital readout
• 315 mm 3-jaw lathe chuck
• 400 mm 4-jaw lathe chuck
• 400 mm faceplate
• Fixed and travelling steady rest
• Cooling system and work light
• User manual and CE declaration

Optional equipment*

• 25 x 25 mm lathe tool set – 7 pcs
• Precision live centre MT5
• Attachment for grinding shafts and holes
• Coolants and cutting oils

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
