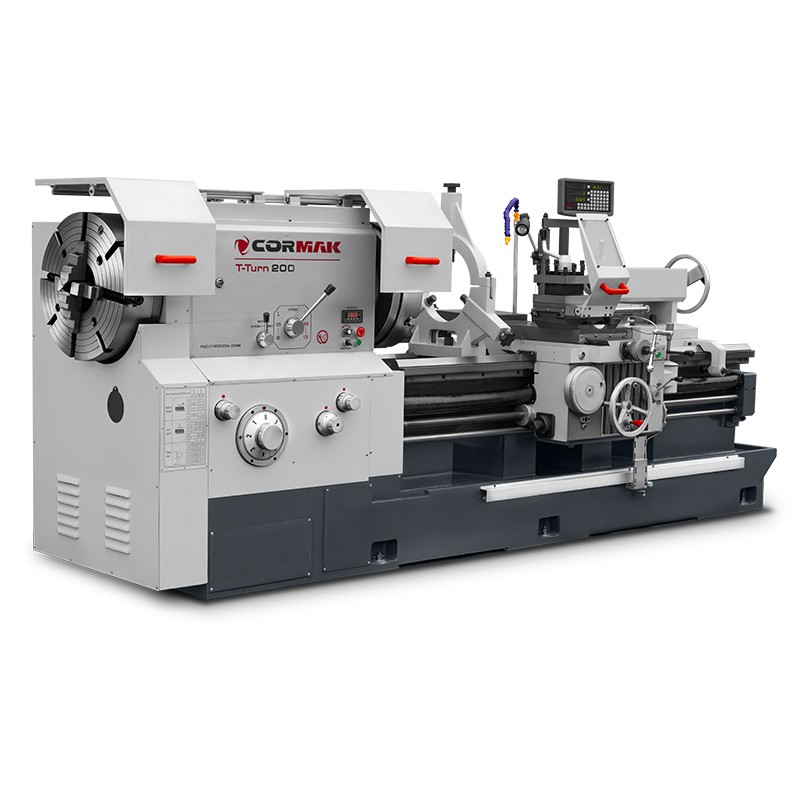

Universal Pipe Lathe CORMAK T-TURN 200 630x1500

CORMAK T-TURN 200 is a robust universal metal lathe designed for precise machining of pipes and large cylindrical components. The machine stands out with its exceptional rigidity, high torque, and an impressive 200 mm spindle bore, making it the perfect solution for industrial workshops, maintenance facilities, and production plants.

Main Advantages

• Heavy-duty cast-iron bed ensures stability and vibration damping.
• Large spindle bore Ø200 mm allows machining of pipes and shafts with large diameters.
• Variable spindle speed control enables precise adjustment to the material type and machining requirements. The high torque at low speed ensures smooth, quiet and efficient operation across the entire range of 30–500 rpm.
• High torque output – up to 2050 Nm at low spindle speeds.
• Hardened and ground guideways guarantee long-term accuracy and durability.
• Dual-chuck headstock – chucks mounted on both sides for flexible workholding of long components.
• Integrated cooling system – essential for heavy-duty machining.
• Powerful 11 kW main motor ensures reliability in demanding production cycles.

Construction and Technology

The design of the CORMAK T-TURN 200 conventional lathe is based on a rigid frame with a heavy-duty bed that absorbs vibrations and enables precise machining even under high loads. Hardened and ground gear wheels in the gearbox provide smooth and quiet operation. The spindle bearings are designed to maintain stability and strength when working with large and long-diameter pipes.

Precision and Performance

Thanks to the high-precision spindle bearings and ground guideways, the machine ensures repeatable accuracy. The spindle speed range of 30–500 rpm, combined with high torque, enables effective machining of hard materials and irregular geometries. Rapid feed speeds in the X/Z axes (3000/4000 mm/min) significantly improve productivity.

Applications

The CORMAK T-TURN 200 lathe is ideal for:

• machining pipes and sleeves with large diameters,
• manufacturing and refurbishing shafts, rotors, and flanges,
• industrial maintenance and repair departments,
• energy, gas, hydraulic, and petrochemical industries,
• heavy-duty machining and large-scale production facilities.

Standard Equipment

• 3-axis digital readout system
• 4-position tool post
• 4-jaw chuck Ø500 mm
• 4-jaw faceplate Ø520 mm
• Taper turning attachment
• Cooling system
• Operation manual

Optional Equipment*

• Quick-change tool posts
• Steadies for long workpieces
• Special pipe chucks
• Optional digital control systems
• Centralized lubrication systems

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical Specifications

Choose CORMAK Quality – Contact Us Today!

Looking for a reliable metal lathe with a large spindle bore and solid construction? CORMAK T-TURN 200 is built for high-precision and intensive industrial applications. Contact our technical advisor to get a detailed offer, availability information, and optional accessories.
