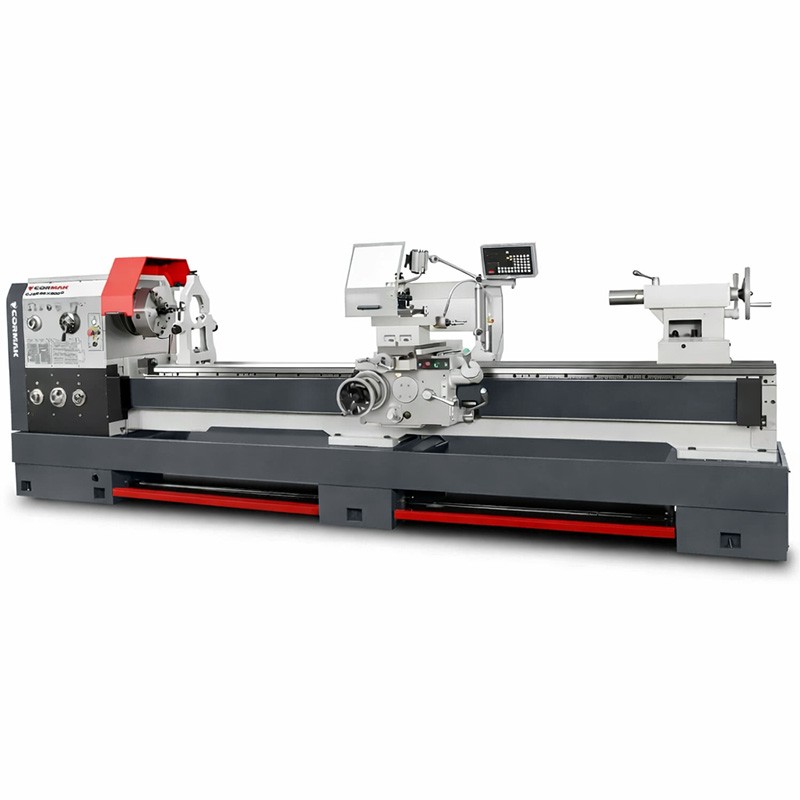

Conventional Universal Lathe CORMAK GOLIAT 660x3000

The CORMAK GOLIAT 660 lathe has been designed specifically for industrial production of single components. The basic version includes all essential additional equipment, significantly extending its range of applications.

Variant

Conventional Universal Lathe CORMAK GOLIAT 660x4000

Conventional Universal Lathe CORMAK 560x2000

Conventional Universal Lathe CORMAK GOLIAT 660x2000

Conventional Universal Lathe CORMAK 660x2000 Slow-Speed RPM

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€24,600.00

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Conventional Universal Lathe CORMAK GOLIAT 660x3000 – high precision for large-scale machining

Universal Lathe CORMAK GOLIAT 660x3000 is a professional solution for industrial plants performing turning of long, heavy and high-precision parts. With a distance between centres of 3000 mm, spindle bore of 105 mm and a massive cast-iron base, this model offers optimal rigidity and stability even under intensive use.

Main machine features

Maximum turning diameter over bed – 660 mm
Turning length – up to 2950 mm with a 3000 mm centre distance
Spindle bore 105 mm – ideal for machining shafts and pipes
3-axis digital readout – precise real-time position control
Rigid structure based on a cast-iron base – eliminates vibrations and ensures high durability
Removable bridge – enables turning of workpieces up to 870 mm in diameter
Rapid feed system – 4.5 m/min longitudinal and 1.9 m/min cross

Precision and performance

Thanks to its hardened and ground bed and solid drive system, the lathe ensures dimensional accuracy and repeatability of machining. The digital readout software supports the operator during complex machining cycles, reducing setup time and eliminating positioning errors. The ability to cut multiple thread types (metric, inch, module, DP) further expands its range of applications.

Equipment depending on the version

3-jaw chuck
4-jaw chuck
Faceplate
Fixed steady rest
Follow rest
Digital readout for 3 axes
Spindle reducing sleeve
Dead centre
Change gears for gearbox
Cooling system
24V halogen lighting
Threading dial indicator
Tool set
User manual
CE Declaration of Conformity

Technical data

Maximum turning diameter over bed	ɸ 660 mm
Maximum turning diameter over carriage	ɸ 420 mm
Maximum turning diameter over gap	ɸ 870 mm
Bridge length	240 mm
Bed width	400 mm
Maximum workpiece length	3000 mm
Maximum turning length	2950 mm
Spindle bore	ɸ 105 mm
Spindle bore diameter and taper	ɸ 113 mm 1:20
Spindle nose	Cam-lock D1-8
Spindle speeds	12 steps, 36–1600 rpm
Longitudinal feeds – types and range	65 types; 0.063–2.52 mm/rev
Cross feeds – types and range	65 types; 0.027–1.07 mm/rev
Thread types and ranges
Metric threads	1–14 mm, 22 types
Inch threads	28–2 T.P.I., 25 types
Module threads	0.5–7 mm, 18 types
D.P. threads	56–4 D.P., 24 types
Rapid longitudinal feed	4.5 m/min
Rapid cross feed	1.9 m/min
Leadscrew pitch	12 mm
Spindle height to tool surface	28 mm
Tool section	25 mm x 25 mm
Tool post swivel angle	+/- 90°
Maximum tool slide travel	145 mm
Maximum cross slide travel	310 mm
Tailstock sleeve diameter	75 mm
Tailstock taper	MT5
Tailstock quill travel	150 mm
Tailstock cross movement	+/- 15 mm
Main motor power S1/S6 and speed	7.5/9 kW, 1450 rpm 50 Hz
Machine gross weight	3790 kg
Machine dimensions	4632 mm x 975 mm x 1450 mm

Choose proven CORMAK quality

Conventional lathe CORMAK GOLIAT 660x3000 is a reliable tool for professional metalworking. It guarantees efficiency, durability and high-quality results even during long-term operation. Contact our team and order today – an investment that pays off.

Manufacturer: Cormak
