Universal Conventional Lathe CORMAK 500x1000/80

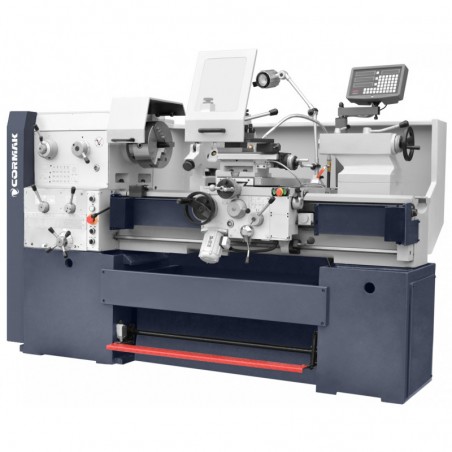

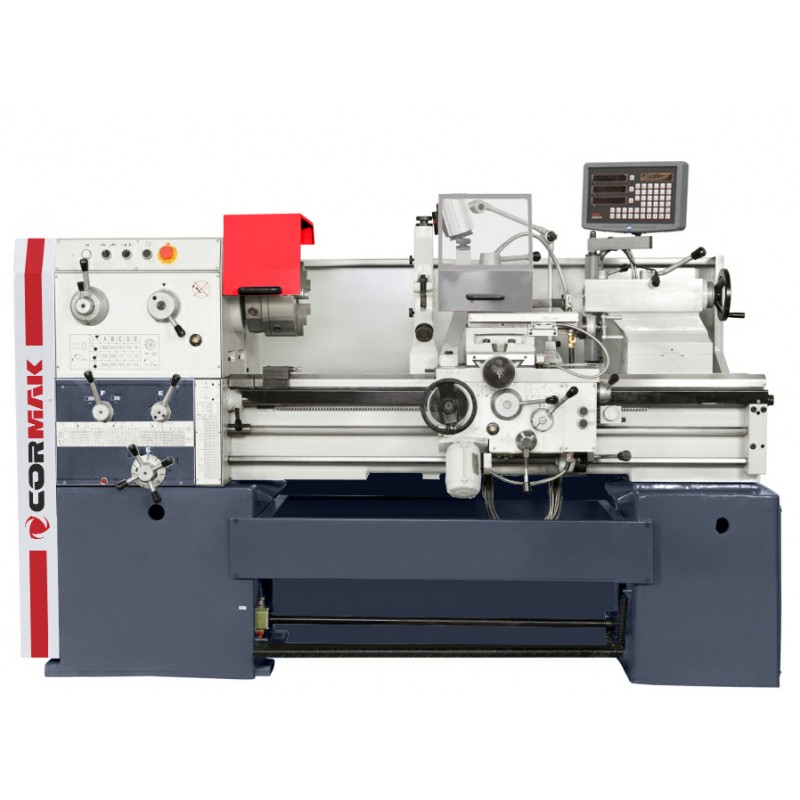

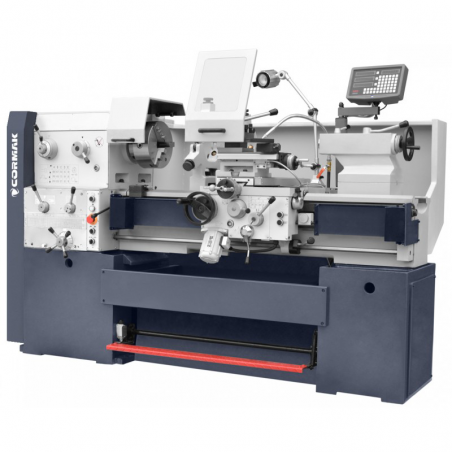

Universal conventional lathe CORMAK 500 x 1000

The universal lathe CORMAK 500 x 1000 (CJ6250Cx1000) is a solid and precise conventional metal lathe designed for professional machining in industrial plants, tool rooms, and repair workshops. Thanks to the high rigidity of the bed, modern drive system, and versatile equipment, the machine provides reliable and repeatable operation in both single-piece and series production.

Main advantages of the machine

• Induction hardened bed, resistant to twisting and vibrations – guarantee of machining accuracy.

• Removable bridge allowing machining of parts up to 630 mm in diameter.

• Modern spindle bearing with ball bearings ensuring stable operation at high speeds.

• Precise adjustment of spindle speeds and feeds – full control of process parameters.

• Accelerated longitudinal and cross feeds – speeding up operations.

• Digital readout for 3 axes facilitating dimensional control and reducing setup time.

• Extensive threading capabilities – metric, inch, module, and D.P. threads.

• Main motor 5.5 kW – high power for demanding material machining.

Construction and technology

The construction of the CORMAK 500 x 1000 lathe was designed for long-lasting operation under industrial conditions. The 330 mm wide bed is induction hardened, minimizing wear and ensuring maintenance of geometry throughout the usage period. The spindle with D1-8 CAMLOCK nose and 80 mm bore allows clamping of large parts and ensures quick chuck changeover. The central feed shifting system along with the leadscrew and feed shaft improves the threading process and increases operational safety.

Precision and work efficiency

The universal lathe CORMAK 500 x 1000 enables the execution of a wide range of turning operations while maintaining high accuracy. The precise guide system, accelerated feeds, and digital position readout shorten machining time and reduce rejects. The machine provides smooth transitions between different spindle speeds (24–1600 rpm), allowing machining of various materials – from structural steels to non-ferrous metals.

Applications

Due to its versatility, the lathe is used in:

• repair shops – for refurbishment of machine parts and equipment,

• tool rooms – for precision production of tools and fixtures,

• series production – manufacturing repeatable parts,

• training workshops – teaching operation of conventional lathes.

Standard equipment

• Digital readout for 3 axes

• Self-centering 3-jaw chuck Ø 250 mm

• Fixed steady rest

• Follow rest

• Spindle reducing sleeve

• Foot-operated safety brake

• Full-length chip guard

• Cooling system

• 24V halogen lighting installation

• Threading dial indicator

• Tool set

• EC conformity declaration

• Instruction manual in Polish

• Brand new machine with warranty

Optional equipment

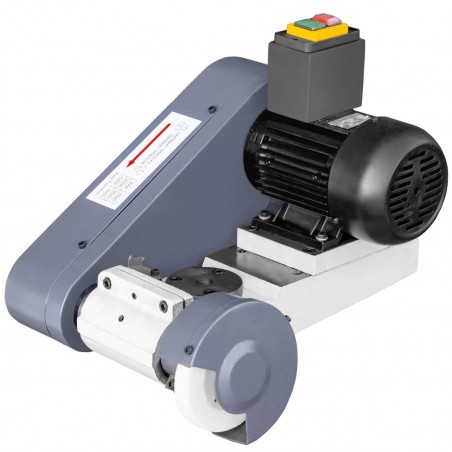

• Shaft and bore grinder

• Taper gauge

• Complete set of cutting tools

• Quick-change tool post Multifix

Technical parameters
