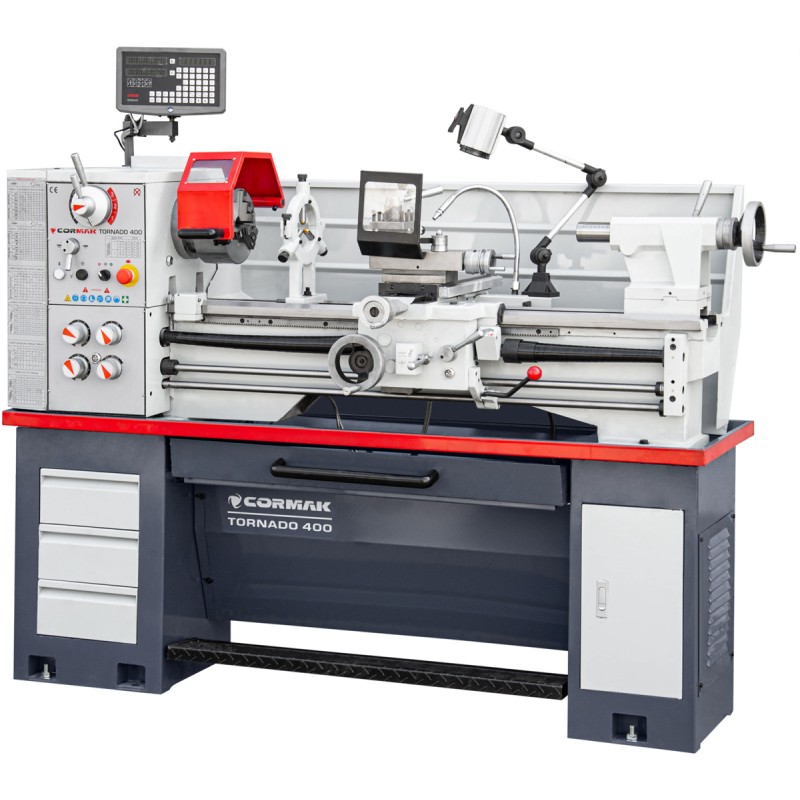

Universal lathe CORMAK TORNADO 400

NEW, IMPROVED MODEL!!!

Main advantages

• The reinforced , ribbed surface of the lathe bed provides maximum vibration reduction. Additionally, the bed is precisely ground and hardened.
• The digital readout operates in two axes of longitudinal and transverse movement of the carriage. The processed electronic signal from the optical rulers visualizes the obtained values ​​from movements along the axes on the digital screen.
• The lathe is equipped with a high-quality and reinforced spindle bearing system.
• Optimum work results are ensured by the large spindle passage of 52 mm.
• Hardened and ground gears in the spindle gearbox.
• The increased  bed width of 218 mm ensures stable and precise working conditions.
• Equipped with a lead screw and a feed shaft for threading and automatic longitudinal and transverse feed.
• Easy adjustment of spindle speed and automatic feed from the ergonomic control panel on the gears. Feed selection lock by means of a lead screw or a shaft.
• Adjustable overload clutch on the drive shaft.
• Possibility of machining a wide range of threads without having to change the change wheels in the guitar. Wide range of turned threads: metric (32) 0.4-7 mm/rev, inch (36) 4-60 TPI, modular (22) 0.4-3 mm, DP thread (28) 8-84 DP Turning right and left threads.
• Thread turning timer designed for accurate counting of threads. The function is to save time by allowing the lead screw nut to be unscrewed in a few passes and the slide to be manually and quickly returned to its original position.
• The bed has a replaceable bridge for turning larger-sized elements, e.g. a shield. This lathe model allows for machining with a maximum diameter of 520 mm with the bridge removed.
• Pull-out chip drawer and tool drawers for better and more efficient work.
• Rich standard equipment: 3-pcs. + 4-pcs. handles + inch dial.

Additionally, the set includes a set of 20 x 20 mm knives, 7 pieces, and a MK4 rotating tip.

Technical parameters:

Standard equipment:

• 2-axis digital readout (optical scale)
• 3-jaw lathe chuck 200 mm + left and right jaws (set)
• 4-jaw lathe chuck 200 mm
• Front shield 280 mm
• Steady rest
• Movable rest
• Permanent canine: MK4 – 2 pcs.
• Spindle reduction sleeve MK6/MK4
• Change wheels – 1 set
• Cooling system
• Work lights
• Lubricator
• Chuck and chuck key
• Complete set of service tools
• Safety guards compliant with CE standards
• User manual in Polish
• CE Declaration of Conformity

Optional equipment:

• MK3/B16 drill arbor
• B16 drill chuck 3-16mm
• HSS-CO5 cobalt drill set / 1-13 mm
• Emulsifying oil, cutting fluid ES-12 1L
