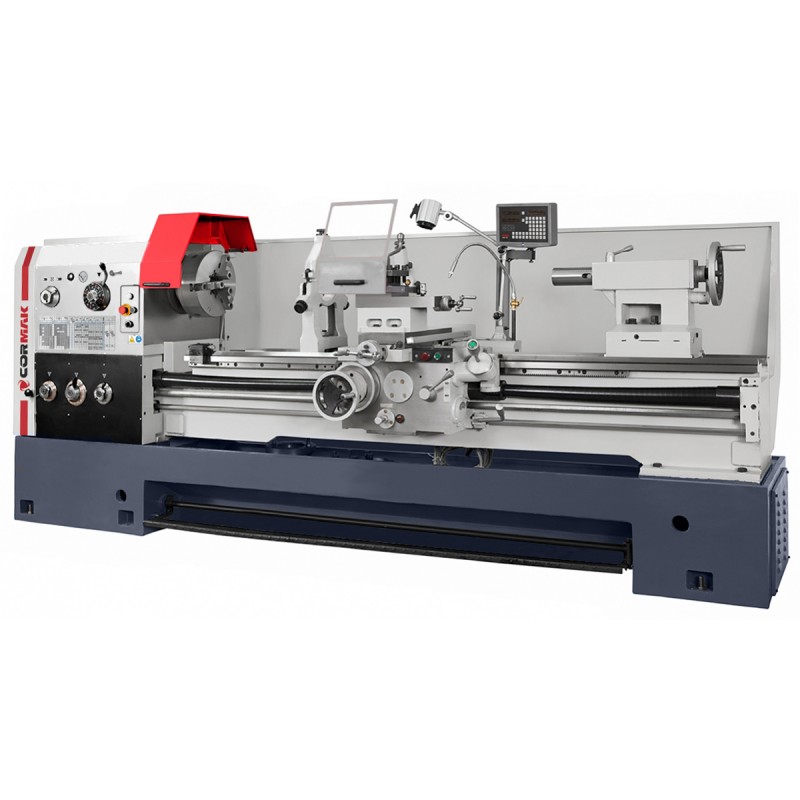

CORMAK 500x1500YB Universal Lathe SLOW RPM
Industrial universal lathe with speed adjustment from 8 rpm. Turning diameter – 500 mm, 1500 mm turning length, 85 mm spindle bore.
Variant
500x1500YC Universal Lathe
Universal lathe 500 x 2000YC + knives + turning center
Are you a member of the VIES group?
VAT included
€18,142.50
The lowest price of this product in the last 30 days before the discount was €17,678.10 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
Modern industrial universal lathe, easy in handling, equipped with a 3 axes digital readout. Useful in renovation and tool departments as well as in high quantity production.
- Wide area of application, including mechanical engineering, manufacturing, high quantity machining, training workshops, etc.
- Removable bridge allows for machining elements of large diameter
- Modern bearing of the main arbor with ball bearings
- Central system of switching feeds, a lead screw and a lead shaft for threading
- Accurate speed and feed adjustment
- Bed of the machine is torsion-resistant and vibration-free, providing basic grounds for accurate turning
Technical data
|
Swing over bed |
500 mm with an LCD readout |
|
Swing over cross slide |
300 mm |
|
Swing over bridge gap |
710 mm |
|
Turning length in bridge gap |
240 mm |
|
Centre height |
250 mm |
|
Centres distance |
1500 mm |
|
Bed |
inductively hardened |
|
Spindle speed (front, back-24 adjustment levels) |
9–1600 rpm |
|
Spindle bore diameter |
85 mm |
|
Spindle internal taper |
90 mm 1:20 |
|
Longitudinal feed range |
0.063–2.52 mm |
|
Transverse feed range |
0.027–1.07 mm |
|
Metric threading range |
0.5–224 mm |
|
Inch thread |
72–1/8 T/" |
|
Modular thread |
0.5–112 mm |
|
D.P. thread |
56–1/4 |
|
Maximum transverse cross slide travel |
320 mm |
|
Maximum top slide travel |
145 mm |
|
Maximum lathe chuck dimensions |
25×25 mm |
|
Tailstock quill tip |
150 mm |
|
Main motor power |
7.5 kW |
|
Main motor speed |
1440 rpm |
|
Approximate weight |
3300 kg |
Default equipment
- Dead centres
- Lubricator
- Handling tools
- Face plate
- 250 mm 3-jaw chuck
- 320 mm 4-jaw chuck
- SINO SDS6-3V digital readout
- Spindle reducing sleeve
Optional equipment
- Ruler for tapers
- Cylindrical and internal grinder
- Quick exchangeable tool post multifix
- Quick exchangeable cutter holder
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
