460x1500 Universal Lathe

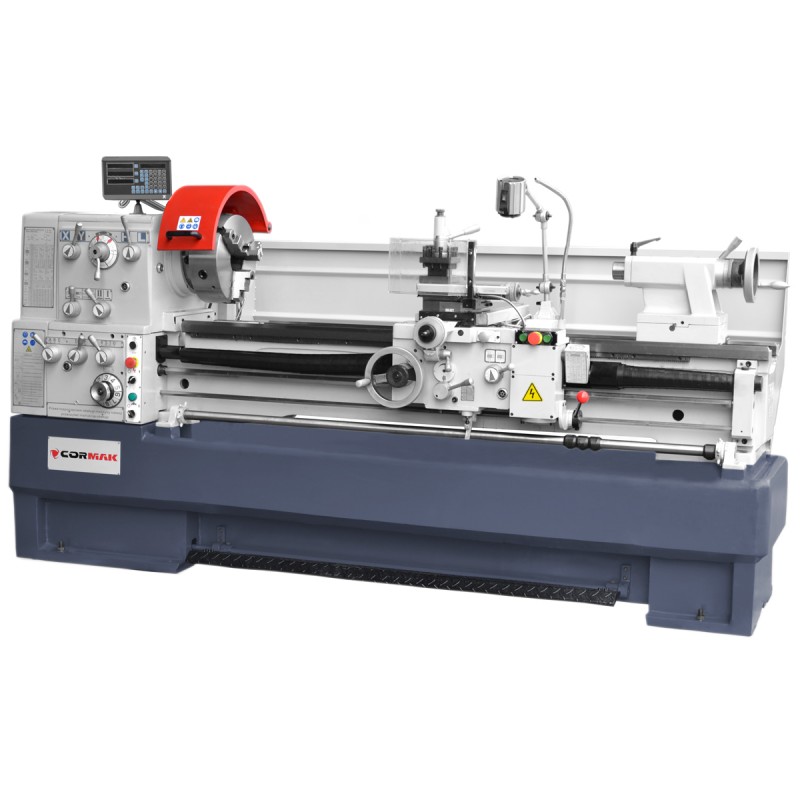

Universal Conventional Lathe CORMAK 460 x 1500 – Reliable Metal Lathe for Industry

CORMAK 460 x 1500 is a professional universal lathe designed for precise machining of metal parts in industrial plants, locksmith workshops, and tool shops. With its rigid cast iron construction, large spindle bore, and digital readout in three axes, this conventional lathe ensures stability, repeatability, and efficiency in even the most demanding applications.

Main Advantages of the Machine

• Solid cast iron bed construction, hardened and precisely ground, guarantees excellent vibration dampening and long life.
• Stable cast iron base provides secure positioning of the machine and precise operation even under heavy loads.
• Large turning length – 1500 mm allows for machining long parts in a single setup.
• Spindle bore 80 mm enables the machining of pipes and shafts with significant internal diameters.
• Digital readout in 3 axes (optical scales) – full control over the position of the carriage and the repeatability of operations.
• 250 mm 3-jaw chuck – quick mounting of parts and high clamping force.
• High-quality spindle bearings – smooth and stable operation across all speed ranges.
• 5.5 kW (S1) motor – reliable operation even in long machining cycles.
• Rapid longitudinal and transverse feed system – increases productivity and reduces cycle time.
• Replaceable bed bridge – allows for turning elements with diameters up to 690 mm.

Construction and Technology

Model CORMAK 460 x 1500 is designed for intensive use. The large-bore spindle is mounted on reinforced bearings, and the drive is provided by a multi-range gearbox with hardened and ground gears. Parameter adjustment is done from an ergonomic control panel. The ability to turn threads over a wide range (metric, inch, modular, D.P.) without the need to change change gears significantly enhances the operator's efficiency.

Precision and Work Efficiency

The machine is equipped with a lead screw and feed rod for automatic feeds and precise threading. The built-in thread gauge facilitates the reproduction of thread pitches and speeds up subsequent passes. Thanks to the digital readout system, the user has full control over positioning in three axes. This is an ideal solution for tasks requiring repeatability and precision.

Applications

The 460 x 1500 lathe from CORMAK is suitable for any workshop where precision and reliability matter:

• Maintenance and repair departments,
• Locksmith workshops and tool shops,
• Manufacturing plants,
• Technical schools and training workshops.

Technical Parameters:

Standard Equipment

• 3-axis digital readout (optical scales)
• 6 pcs. of vibration isolators
• Fixed and movable support
• Fixed center MK4
• Reducing sleeve MK7/MK4
• Change gears
• Cooling system with pump
• LED work lighting
• Grease gun, maintenance keys
• Safety guards compliant with CE standards
• Instruction manual in Polish
• CE declaration of conformity

Optional Equipment

• Set of lathe knives 25x25 mm (9 pcs. with cutting inserts)
• Precision rotary center MK4
• Wedge for turning cones
• PS125 grinding attachment
• 250 mm 4-jaw chuck + D8 driving disk
• MK4/B16 drill chuck and B16 drill holder (3–16 mm)
• Set of HSS-Co5 drills (1–13 mm)
• Coolant ES-12 – 5L

Are you looking for a conventional lathe with a large turning range and solid construction? Choose CORMAK 460 x 1500 – a precise solution for demanding tasks. Contact our technical advisor to learn about purchasing conditions and stock availability.
