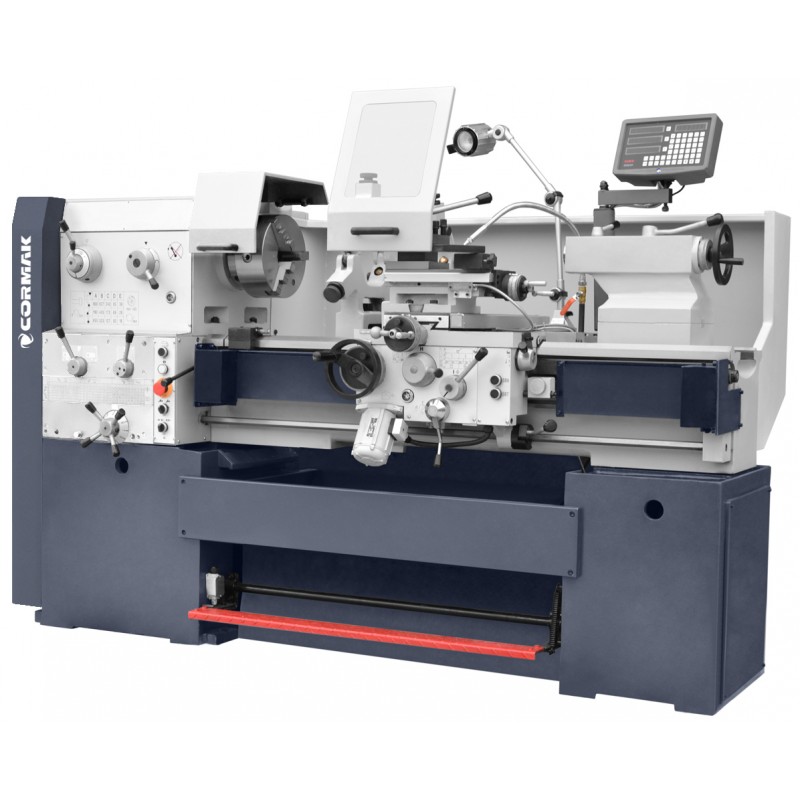

500x1000B Universal Lathe
CORMAK 500×1000B series lathe has a broad area of application, such as turning internal and external surfaces, tapers, buffing, metric, inch modular and D.P. threading, drilling.
Are you a member of the VIES group?
VAT included
€14,649.75
The lowest price of this product in the last 30 days before the discount was €14,649.75 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
Modern universal lathe, easy in handling, equipped with a multi-plated friction clutch and a 3 axes digital readout. Useful in renovation and tool departments as well as in high quantity production.
- Wide area of application, including mechanical engineering, manufacturing, high quantity machining, training workshops, etc.
- Removable bridge allows for machining elements of large diameter
- Modern bearing of the main arbor with ball bearings
- Central system of switching feeds, a lead screw and a lead shaft for threading
- Accurate speed and feed adjustment
- Bed of the machine is torsion-resistant and vibration-free, providing basic grounds for accurate turning
Technical data
|
Swing over bed |
500 mm |
|
Swing over cross slide |
325 mm |
|
Swing over bridge |
630 mm |
|
Turning length over gap bridge |
260 mm |
|
Centres distance |
1000 mm |
|
Bed |
inductively hardened |
|
Spindle bore diameter |
65 mm |
|
Spindle speed |
22–1800 rpm (15 levels) |
|
Maximum tool dimensions |
25×25 mm |
|
Longitudinal feed range |
0.072–4.038 rpm |
|
Transverse feed range |
0.036–2.019 rpm |
|
Metric thread |
0.5–28 mm |
|
Inch thread |
1–56 T.P.I. |
|
Modular thread |
0.5–3.5 mm |
|
D.P. thread |
8–56 |
|
Bed width |
305 mm |
|
Tailstock quill extension |
MK5 |
|
Digital readout |
for 3 axes |
|
Main motor power |
5.5 kW |
|
Rapid feed |
yes |
|
Approximate weight |
2200 kg |
Equipment
- Axes digital readout
- 3-jaw 250 mm lathe chuck
- 400 mm mounting face plate
- Dead centres
- Steady rest
- Follow rest
- Spindle reducing sleeve
- Cooling system
- Work lighting
- Indicator / thread gauge
- Rapid feed
- Foot safety brake
- Chips guard
- Set of handling tools
- Protection guards compliant with safety regulations
- User manual
- EC declaration of conformity
- Factory new machine under warranty
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
