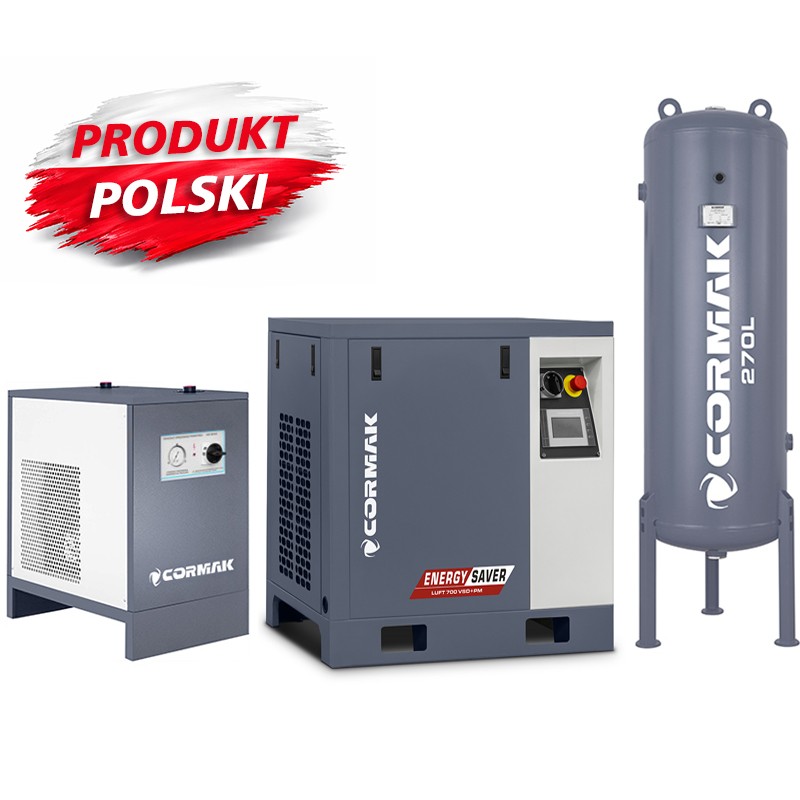

CORMAK LUFT 700 VSD+PM screw compressor – compact power for your business - ENERGY SAVER
Are you looking for a professional solution for powering pneumatic tools in a workshop, paint shop or small production line? The CORMAK LUFT 700 VSD+PM screw compressor is an ideal solution. With a power rating of 5.5kW and an impressive actual output of up to 690L/min, it provides a constant supply of compressed air required for the efficient operation of impact wrenches, blow guns and painting tools.
This model, powered by a 400V supply, has been designed for continuous operation, making it well suited to demanding applications such as smaller workshops, tyre service centres and craft businesses. Investing in a CORMAK screw compressor is a step towards significantly improved working comfort – replace noisy piston compressors and benefit from quieter, more stable operation.
The LUFT 700 VSD+PM features a reliable and dependable direct-drive transmission system that eliminates vibration and the need to adjust a belt drive. This proven solution ensures stable operation and a long service life by transferring power directly from the motor to the screw module.
The maximum pressure generated by this screw compressor is 10bar. Full control of the machine’s operating parameters is provided by an intuitive MAM-series electronic control panel, which gives access to key compressor information and increases process flexibility and control.
✅ Pressure: up to 10bar | ✅ Output: up to 690L/min | ✅ Power: 5.5kW | ✅ Supply: 400V
Energy Saver Range: A New Era of Efficiency
The Energy Saver range is an advanced series of screw compressors designed to drastically reduce operating costs. In a world where energy accounts for nearly 80% of the cost of maintaining a compressed air system, these models are becoming a standard in modern industry.
The key features that distinguish these models are:
1. Permanent Magnet Motor Technology (PM)
Most compressors in the Energy Saver range use Permanent Magnet motors. Unlike standard induction motors, they:
-
Achieve efficiency levels meeting IE4 or even IE5 standards.
-
Maintain high efficiency even at very low speeds, whereas standard motors lose efficiency outside their nominal operating range.
-
Are smaller, lighter and generate less heat.
2. Advanced Variable Speed Drive Control (VSD)
The core of the Energy Saver range is the frequency converter, also known as a variable speed drive.
-
Demand-based adjustment: The compressor does not operate in an “all or nothing” load/unload mode. When your machine requires only 30% of the available output, the compressor reduces its speed and uses proportionally less energy.
-
Elimination of idling: After filling the receiver, conventional compressors often continue operating for several minutes, consuming approximately 25–30% of their rated power without producing air. Energy Saver models almost completely eliminate this wasteful process.
3. Soft Start
Thanks to the variable speed drive, these machines start smoothly from 0Hz. This prevents sudden current surges during start-up, which:
4. Genuine Savings
In practice, using the Energy Saver range can reduce electricity costs by 30% to 50% compared with conventional fixed-speed compressors. The system also maintains highly stable network pressure, with an accuracy of 0.1bar, which is essential for precision equipment such as laser cutting machines. Longer service life: The absence of sudden pressure and temperature fluctuations extends the operating life of the screw unit.
Main Advantages of Permanent Magnet PM Motors
Permanent Magnet Motors, also known as PM motors, represent an innovative approach to electric drives and offer several significant advantages over conventional induction motors.
- Higher energy efficiency: This is one of their key advantages. PM motors do not require current to be supplied to the rotor to generate a magnetic field because the field is produced by the permanent magnets themselves. This eliminates energy losses in the rotor, including reactive power and Joule losses, resulting in significantly higher efficiency, often exceeding the requirements of the IE4 Super Premium class. High efficiency is also maintained across a wide range of loads and speeds, particularly at lower rotational speeds.
- Higher power factor: PM motors have a higher power factor, which means that they draw less current from the mains for the same useful output. This benefits the entire electrical installation by reducing network load and lowering costs associated with reactive power.
- Compact design and higher power: Thanks to the strong, constant magnetic field generated by the magnets, these motors can deliver higher power from a smaller housing. They are lighter and more compact than induction motors of comparable power, which is important in applications where space and weight matter, such as electric vehicles and robotics.
- Constant torque and high dynamic response: PM motors can generate constant torque even at low speeds and provide a fast dynamic response. Low rotor inertia enables rapid speed changes and precise control, making them ideal for applications requiring accurate positioning, such as CNC machine tools and industrial robots.
- Wide speed adjustment range: By applying magnetic field weakening strategies, these motors can operate across a very wide speed range while maintaining high efficiency.
- Improved reliability and durability: Reduced heat generation, a simpler rotor design without windings and lower mechanical loads contribute to longer and more reliable operation.
VSD Inverter – The Key to Optimising Compressor Operation
An inverter, also known as a variable speed drive, is an advanced electronic device that transforms the way screw compressors operate. It enables smooth adjustment of the compressor motor speed according to the current demand for compressed air.
Key advantages of compressors equipped with an inverter:
- Significant electricity savings: This is the principal advantage of an inverter. Conventional compressors operate at full output or are switched off, and excess air is often discharged. An inverter allows air production to be matched precisely to consumption. The compressor operates only at the power currently required, eliminating idling and losses caused by start/stop cycles. Depending on the air consumption profile, this can result in energy savings of 20–50%.
- Stable system pressure: By continuously adjusting the motor speed, an inverter compressor maintains almost perfectly constant pressure in the compressed air network, regardless of fluctuations in demand. This is essential for the correct operation of pneumatic tools and machines, prevents pressure surges and improves the precision of technological processes.
- Reduced starting currents and network loads: The inverter provides a soft motor start, eliminating the high inrush currents associated with conventional star-delta starting. This protects the electrical network against overload and extends the service life of the motor and other components.
- Extended component service life: Fewer abrupt starts and stops, together with operation under optimum load conditions, significantly reduce mechanical wear on the screw block, bearings and motor. This results in a longer overall compressor service life and lower servicing costs.
- Quieter operation: When air demand is lower, the inverter reduces the motor speed, directly lowering the compressor’s noise level. This improves working comfort in a production hall or workshop.
- Greater flexibility and adaptation to demand: An inverter compressor is particularly suitable for applications with variable compressed air demand, which is typical of most production facilities. It can operate efficiently under both low and high loads.
- Advanced control and diagnostics: Modern inverters are integrated with control panels and provide extensive functions for monitoring operating parameters, fault diagnostics, remote control and maintenance planning, giving full control over the compressed air system.
An investment in an inverter compressor quickly pays for itself through substantial energy savings and improved operating reliability. It is an ideal solution for businesses that value efficiency, durability and optimised operating costs.
Screw Module – The Heart of Your Compressor
High-grade Cormak screw compressors, such as the LUFT 700 VSD+PM, are based on technologically advanced screw modules that determine their output and reliability. By combining proven solutions with innovation, Cormak ensures that every module is refined down to the smallest detail to meet the demands of even the most intensive operation.
Key features of screw modules in CORMAK compressors:
- Modern technology and efficiency: The screw modules provide excellent performance and exceptional operating efficiency. Their design focuses on maximum output with minimum energy consumption.
- Precision and control: Advanced technical solutions allow the screw modules to provide precise control over the compressed air generation process. This results in stable pressure and optimum operation of the entire pneumatic system.
- Durability and reliability: The screw modules used in CORMAK compressors are designed for a long service life. Their robust construction and high-quality materials ensure reliable operation even under demanding industrial conditions, minimising the risk of downtime and the need for frequent repairs.
Intuitive CORMAK Control Panel – Full Control at Your Fingertips
In Cormak screw compressors such as the LUFT 700 VSD+PM, the advanced MAM-series control panel is a key component for ensuring reliability and optimising operation. Designed for effective compressed air system management, this controller enables continuous monitoring and a rapid response to all operating parameters.
What does the Cormak control panel offer?
- Comprehensive monitoring: The panel allows continuous tracking of all key compressor operating parameters, including pressure, temperature and operating status.
- Easy adjustment of settings: The intuitive interface allows the user to modify settings and operating parameters easily, adapting them to the current requirements of the system.
- Immediate notifications: The controller is programmed to respond quickly to all operating events. In the event of an irregularity, such as a fault or a required inspection, an appropriate notification is shown on the display.
**Remember!**
By choosing our offer, you receive equipment directly from an experienced compressor supplier.
Technical Specifications
|
|---|
| Motor power |
5.5kW / 7.5hp |
| Voltage |
400V/50Hz |
| Output at 0–6bar |
average 690L/min |
| Output at 6bar |
690L/min |
| Output at 8bar |
650L/min |
| Output at 10bar |
650L/min |
| Outlet connection diameter (G) |
1/2" |
| Dimensions |
800 x 520 x 740mm |
| Weight |
95kg |
IZBERG N10S Refrigerated Compressed Air Dryer
The CORMAK compressed air dryer is a professional industrial machine designed to remove moisture, water vapour and oil particles effectively from pneumatic systems. Using efficient refrigeration technology, the refrigerated dryer ensures stable operation of compressed-air-powered equipment, increasing its durability and reliability. It is an ideal solution for businesses looking for modern air treatment methods for pneumatic installations.
Main Advantages of the CORMAK Compressed Air Dryer
- Advanced refrigeration system — a two-stage process cools the air to its dew point, ensuring effective separation of moisture and oil particles.
- Stable operation in systems up to 10bar — the unit is suitable for standard industrial systems.
- High output — up to 1,500L/min, making the unit an effective solution for medium-sized and larger compressed air systems.
- Energy-efficient design — a variable-speed fan reduces power consumption to just 0.58kW.
- Automatic condensate drain valve — ensures reliable condensate discharge without operator supervision.
- Compact dimensions and easy installation — ideal for upgrading existing pneumatic systems.
- R134a refrigerant — ensures high operating efficiency.
Design and Technology
The refrigerated dryer has been designed for maximum efficiency and durability. Its main structural components include:
1. Air-to-Air Heat Exchanger
In the first stage of the process, the inlet air passes through a heat exchanger, where it is pre-cooled by the cooler air leaving the evaporator. The counterflow arrangement recovers heat and increases the energy efficiency of the entire system.
2. Refrigeration System Evaporator
In the second stage, the compressed air enters the evaporator, where it is cooled to a dew point temperature of 3°C. This causes the water vapour and oil particles contained in the air to condense.
3. Condensate Separator
After cooling, the gas and condensate mixture enters an efficient separator, where the condensate is separated and discharged automatically from the unit.
4. Fan Control System
Variable-speed fan technology intelligently adjusts the cooling intensity to the actual demand, reducing energy consumption and increasing component service life.
Operating Precision and Efficiency
Thanks to refrigeration technology, the CORMAK compressor dryer effectively removes water and oil, protecting installations against corrosion, actuator seizure and damage to pneumatic tools. A constant dew point temperature ensures consistent air quality, resulting in reliable operation of the entire pneumatic system.
Applications
The CORMAK compressor air dryer is suitable for a wide range of industrial sectors in which clean, dry air is essential for the correct operation of machinery and equipment. Typical areas of application include:
- Mechanical workshops
- Production facilities
- Food industry when filters compliant with hygiene requirements are used
- Electronics industry
- Industrial automation
- Painting systems and spray booths
- CNC equipment with pneumatic drives
Equipment
- Automatic condensate drain valve
- Built-in water and oil separator
- Variable-speed fan — automatically adjusts to operating conditions
- Electronic control system — ensures stable parameters
- Compact and durable housing resistant to industrial conditions
Technical Specifications:
IZBERG N10S Air Dryer
| Parameter | Value |
|---|
| Inlet/outlet pipe diameter (BSP) |
1" |
| Maximum working pressure |
10bar |
| Maximum inlet air temperature |
≤ 38°C |
| Dew point temperature |
3°C |
| Output |
1,500L/min |
| Power |
0.58kW |
| Supply voltage |
230V |
| Dimensions (L x W x H) |
380 x 600 x 625mm |
| Weight |
31kg |
| Refrigerant type and quantity |
R134a, 400g |
Choose Professional Air Treatment
By choosing a CORMAK refrigerated compressed air dryer, you are investing in the stability and efficiency of your pneumatic system. This machine is an essential part of every professional compressed air installation, particularly where high air cleanliness and protection of machinery against corrosion and breakdowns are required.
Do not risk losses caused by moisture in the pneumatic system — choose a CORMAK compressor dryer and gain full control over air quality!
270L COMPRESSED AIR RECEIVER WITH FITTINGS – HIGH-GRADE PRESSURE RECEIVER FOR COMPRESSED AIR INSTALLATIONS
The CORMAK pressure receiver, with a capacity of 270L and a working pressure of 11bar, is a reliable solution for storing compressed air in industrial facilities, workshops and pneumatic installations. Its robust steel construction and compliance with European Union directives make this receiver an essential component of a compressed air system. Thanks to its optimised design and high pressure resistance, it can serve both as an air storage buffer and as a component stabilising compressor operating parameters.
Main Advantages of the CORMAK 270L Pressure Receiver
- Professional pressure vessel construction – manufactured from high-grade 4mm-thick steel resistant to pressure and corrosion.
- CE marking – compliance with European safety and quality standards.
- 11bar working pressure – suitable for most pneumatic systems, including those with increased requirements.
- High capacity – 270L – ensures a stable supply to the pneumatic installation and reduces compressor switching frequency.
- Multiple connection system – five connections with diameters of 1.1/4", 2" and 1/2" allow flexible integration into different installations.
- High manufacturing quality – durable anti-corrosion coating inside and outside the receiver.
- Space-saving installation position – the vertical design saves space within the facility.
Design and Technology – Robust Construction for Demanding Applications
This compressed air receiver has been designed for intensive use in industrial environments. The body is manufactured from structural steel with a wall thickness of 4mm, ensuring resistance to pressures up to 11bar and providing long-term operation. All welds undergo rigorous quality control, while the receiver surfaces are protected by an anti-corrosion coating resistant to chemical and atmospheric factors.
The receiver is fitted with a rating plate bearing the CE mark and a notified-body number confirming its approval for use on the European market. The set includes complete technical documentation, a pressure vessel passport and material certificates.
Operating Precision and Efficiency – Stable Pressure and Optimum Compressor Operation
Thanks to its large 270L capacity, the receiver acts as an air buffer, stabilising pressure throughout the pneumatic system. This enables the even operation of compressed-air-powered equipment and significantly extends compressor service life by reducing the number of switching cycles. Its vertical design allows compact installation, which is particularly important in facilities with limited space.
A correctly selected compressor receiver minimises pressure drops and prevents pneumatic system overloads, improving the efficiency and safety of the entire installation.
Applications – Versatility for Industrial and Workshop Use
CORMAK pressure receivers are widely used across various industrial sectors, as well as in vehicle workshops, production facilities, construction companies and central compressed air installations. Their capacity and pressure resistance make them suitable as:
- a compressor air receiver – for storing compressed air in pneumatic supply systems,
- a compressor receiver – as a pressure buffer reducing compressor operating frequency,
- a compressed air receiver – for continuously supplying pneumatic machinery and equipment,
- a component in industrial automation and painting systems,
- a basic component of pneumatic control systems.
Standard Equipment
- Connection openings: 5 – diameters 1.1/4", 2", 1/2"
- Rating plate with CE mark
- Notified-body number
- Complete technical documentation and pressure vessel passport
- Internal and external anti-corrosion coating
Receiver fittings:
- 1 x ½" plug
- Pressure gauge + 1/2" reducer
- ½" tee
- 1 1/4"–3/4" inlet/outlet
- ½" water drain valve
Warning!!!
The fittings do not include a safety valve, which must be purchased separately.
