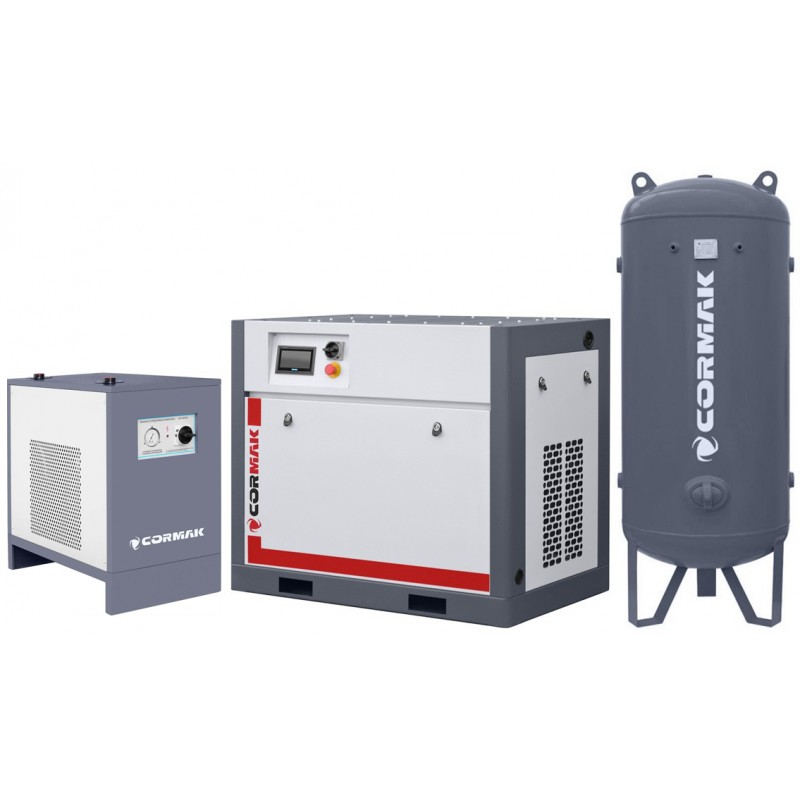

Screw Compressor Set CORMAK THEOR 15 INVERTER – 11kW with CORMAK IZBERG N30S Air Dryer and 1000L Vertical Air Tank
The set includes the THEOR 15 INVERTER screw compressor equipped with an inverter, a vertical 1000L compressed-air tank, and the CORMAK IZBERG N30S air dryer. The screw compressor from the CORMAK THEOR series features state-of-the-art pneumatic solutions combined with high-quality materials and components. Low operating costs, ease of use, ergonomic and durable construction, and high performance ensure efficient and trouble-free operation.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€6,747.50
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
200,00 PLN
Main advantages:
- INVERTER – The stepless compressor speed regulation system is the most economical control method. The main advantage is lower energy consumption compared to traditionally controlled compressors and the ability to maintain constant set pressure.
- strong, compact screw-compressor construction from a European manufacturer
- automation based on modern, proven high-quality components ensuring safe and efficient operation
- specially designed cooler providing optimal working conditions even under high load
- cooler connected to the module via high-quality hydraulic hoses
- technology applied allows significant energy savings
- special air outlet design for more efficient operation
- the compressor is equipped with a durable, high-performance pump
- unique filtration system with triple separation ensuring effective operation
- the compressor uses a reliable and robust direct-drive system between the motor and screw mechanism (via a claw coupling), ensuring: high effective performance, better vibration reduction, and eliminating the need for adjustment required in traditional belt-drive systems
- low noise level thanks to a specially designed sound-insulated casing (sound-absorbing panels)
Technical parameters THEOR 15 INVERTER
| Motor power | 11 kW |
| Voltage | 400V/50Hz |
| Capacity |
At 6 bar – 1380 L/min At 8 bar – 1150 L/min At 10 bar – 1030 L/min |
| Dimensions | 1180 x 750 x 1000 mm |
| Weight | 325 kg |
Technical parameters N30S
| AIR INLET/OUTLET PIPE DIAMETER (BSP) | 1 1/2" |
| OPERATION IN PRESSURISED SYSTEMS | UP TO 10 BAR |
| INLET TEMPERATURE | ≤38°C |
| DEW POINT TEMPERATURE | 3°C at working overpressure |
| CAPACITY | 3800 L/min |
| POWER | 1.37 kW |
| VOLTAGE | 230 V |
| DIMENSIONS (L x W x H) | 850 x 480 x 480 mm |
| WEIGHT | 95 kg |
| TYPE AND AMOUNT OF REFRIGERANT | R410a, 900 g |
1000L tank parameters:
| Weight (kg): | 230 |
| Connections: | 8 |
| Connection sizes: | 1/2", 2" |
| Size: | 222.7 x 85 cm |
| Tank capacity (L): | 1000 |
| Working pressure (bar): | 11 |
| Diameter (mm): | Ø 850 |
| Height (mm): | 2250 |
Set of fittings includes:
- side top 1 1/2" → 1" → 3/4"
- side bottom 1 1/2" → 1" → 3/4"
- top plug 3/4"
- bottom valve 1/2" + reduction 3/4" → 1/2"
- nipple 1/2"
- tee 1/2"
- pressure gauge + reduction 1/2" → 1/4"
Attention!!!
the safety valve is not included in the tank fittings and must be purchased separately.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
