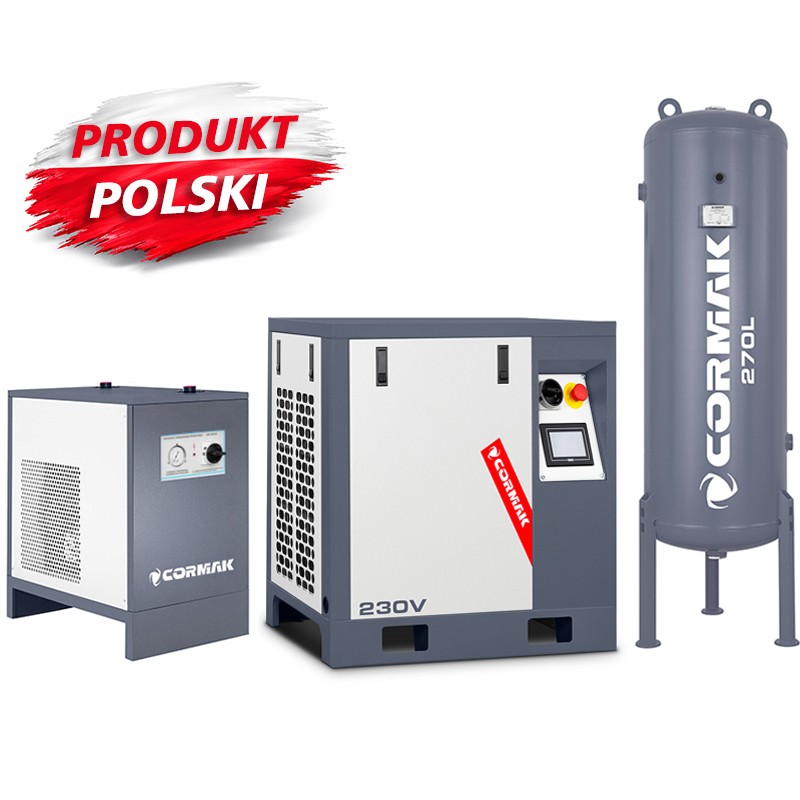

Screw Compressor with Inverter, N10S Dryer and 270L Vertical Tank CORMAK LUFT 400 380L/min 3.0kW 230V

Screw Compressor 230 V

Screw Compressor CORMAK LUFT 400 – compact power for your business

Are you looking for an efficient and reliable compressor suitable for smaller workshops, service points, or light industrial applications, while requiring single-phase power supply? The CORMAK LUFT 400 screw compressor is the ideal solution. With a power output of 3.0 kW and an impressive actual air delivery of up to 400 L/min, it ensures a continuous supply of compressed air necessary for the efficient operation of impact wrenches, blow guns, and spray-painting tools.

This model, powered by 230V/50Hz, is designed for continuous operation, making it ideal for demanding applications such as smaller workshops, tyre service centres, and craft industries. Investing in a CORMAK screw compressor significantly improves working comfort—say goodbye to noisy piston compressors and enjoy quieter, more stable operation.

The LUFT 400 features a reliable and proven direct-drive transmission system, eliminating vibrations and the need for belt tension adjustment. This solution ensures stable performance and long service life by providing direct power transfer from the motor to the screw module.

The maximum pressure generated by this screw compressor is 10 bar. Full control over operating parameters is provided by an intuitive MAM-series electronic control panel, giving access to key compressor data and increasing flexibility and control over processes.

✅ Pressure: up to 10 bar | ✅ Capacity: up to 400 L/min | ✅ Power: 3.0 kW | ✅ Power supply: 230V

CORMAK screw compressors: when you expect top quality and performance!

Looking for solutions that exceed standard market expectations? CORMAK screw compressors are synonymous with innovation and reliability, designed for the most demanding applications.

• Innovative design: These compressors are based on advanced engineering and precision manufacturing. Robust construction combined with modern components ensures long-term, trouble-free operation in demanding environments.
• Efficiency optimisation: Thanks to inverter technology and intelligent control algorithms, the LUFT 400 dynamically adjusts energy consumption to current compressed air demand, significantly reducing operating costs while maintaining maximum efficiency.
• Proven drive system: The LUFT 400 uses a reliable direct-drive system that minimises load on the screw block and motor, ensuring efficient operation and extended service life.
• Quiet operation and comfort: Designed with attention to detail, these compressors feature exceptionally low noise levels. Effective sound insulation and vibration reduction systems provide a comfortable working environment.
• Intelligent control: The intuitive MAM-series electronic control panel enables precise parameter monitoring, service planning, and fast diagnostics, ensuring system stability and protection of key components.
• Adaptability to requirements: Compressors can be configured with additional air treatment systems (option*), allowing precise adaptation to specific industry requirements.
• Dynamic working pressure: Automatic pressure regulation ensures that the compressor delivers exactly the required amount of compressed air at any given moment.
• Sustainability: Energy-efficient technologies reduce operating costs and environmental impact, while optional heat recovery systems (option*) allow maximum use of generated energy.

CORMAK: Technology that drives your success!

Main advantages of PM permanent magnet motors

Permanent Magnet Motors (PM motors) represent an innovative approach to electric drive systems, offering a number of significant advantages over traditional induction motors.

• Higher energy efficiency: One of the key benefits of PM motors. They do not require electrical current to be supplied to the rotor to generate a magnetic field, as it is created by the permanent magnets themselves. This eliminates rotor losses (reactive power loss and Joule losses), resulting in significantly higher efficiency, often exceeding IE4 Super Premium efficiency class requirements. High efficiency is maintained across a wide range of loads and speeds, especially at lower rotational speeds.
• Higher power factor: PM motors feature a higher power factor, meaning they draw less current from the electrical network for the same usable output power. This benefits the entire electrical installation by reducing network load and lowering costs associated with reactive power.
• Compact design and higher power density: Thanks to the strong, constant magnetic field generated by the magnets, these motors deliver higher power in a smaller housing. They are lighter and more compact than induction motors of comparable output, which is crucial in applications where space and weight matter.
• Constant torque and high dynamics: PM motors can generate constant torque even at low speeds and offer fast dynamic response. Low rotor inertia allows rapid speed changes and precise control, making them ideal for applications requiring accurate positioning, such as CNC machines and industrial robotics.
• Wide speed control range: Through the use of magnetic field weakening strategies, these motors can operate over a very wide speed range while maintaining high efficiency.
• Increased reliability and durability: Lower operating temperatures, simpler rotor construction (no windings), and reduced mechanical stress result in longer service life and higher reliability.

Inverter / Variable Frequency Drive – the key to compressor optimisation

The inverter (also known as a variable frequency drive) is an advanced electronic device that revolutionises the operation of screw compressors. Its use allows smooth control of the compressor motor speed depending on current compressed air demand.

Key advantages of inverter-driven compressors:

• Significant energy savings: This is the greatest advantage of inverter technology. Traditional compressors operate at full capacity or shut down, often venting excess air. The inverter precisely matches air production to consumption, eliminating idle running and losses caused by frequent start/stop cycles. This can result in energy savings of 20–50%, depending on the air demand profile.
• Stable system pressure: Thanks to smooth motor speed control, the inverter compressor maintains nearly constant pressure in the compressed air network, regardless of demand fluctuations. This is essential for the correct operation of pneumatic tools and machines, prevents pressure surges, and increases process precision.
• Reduced inrush currents and network load: The inverter provides soft motor start-up, eliminating high current peaks associated with traditional star-delta starting. This protects the electrical network and extends the service life of the motor and other components.
• Extended component lifespan: Fewer sudden starts and stops, combined with operation under optimal load conditions, significantly reduce mechanical wear of the screw block, bearings, and motor, resulting in longer compressor life and lower maintenance costs.
• Quieter operation: When air demand is lower, the inverter reduces motor speed, directly lowering noise emissions and improving workplace comfort.
• Greater flexibility and adaptability: Inverter compressors perform exceptionally well in applications with variable air demand, which is typical for most production facilities.
• Advanced control and diagnostics: Modern inverters are integrated with control panels, offering extensive monitoring, fault diagnostics, remote control, and maintenance planning functions.

Investing in an inverter-driven compressor pays back quickly through significant energy savings and increased operational reliability. It is an ideal solution for companies that value efficiency, durability, and optimised operating costs.

Screw module – the heart of your compressor

High-quality CORMAK screw compressors, such as the LUFT 400 model, are based on technologically advanced screw modules that define their performance and reliability. By focusing on proven solutions and continuous innovation, CORMAK ensures that each module is refined down to the smallest detail to meet the demands of intensive operation.

Key features of screw modules in CORMAK compressors:

• Modern technology and efficiency: Screw modules guarantee excellent performance and exceptional operating efficiency, focusing on maximum output with minimal energy consumption.
• Precision and control: Advanced technical solutions enable precise control over the compressed air generation process, resulting in stable pressure and optimal performance of the entire pneumatic system.
• Durability and reliability: Screw modules used in CORMAK compressors are designed for long service life. Robust construction and high-quality materials ensure reliable operation even in demanding industrial environments, minimising downtime and maintenance requirements.

By choosing a CORMAK compressor, you invest in technology built on years of industry experience and continuous innovation, resulting in increased efficiency and productivity for your business.

Intuitive CORMAK control panel – full control at your fingertips

In CORMAK screw compressors such as the LUFT 400 model, a key element ensuring reliability and optimised operation is the advanced MAM-series control panel. Designed for effective compressed air system management, this controller enables continuous monitoring and rapid response to all operating parameters.

What does the CORMAK control panel offer?

• Comprehensive monitoring: The panel allows continuous tracking of all key operating parameters, such as pressure, temperature, and operating status.
• Easy parameter adjustment: Thanks to its intuitive interface, users can easily modify settings and operating parameters to match current system requirements.
• Instant notifications: The controller is programmed to respond quickly to operational events. In case of irregularities such as faults or service requirements, appropriate notifications are displayed.

The CORMAK control panel guarantees peace of mind and efficiency, enabling precise management of the compressed air system.

COMPLETE TECHNICAL DOCUMENTATION

Ensure peace of mind during technical inspections.

When purchasing this compressor, you receive complete technical documentation enabling compliant operation of the pressure system. Please note that proper registration and compliance with applicable regulations are mandatory.

Documentation includes:

• Declaration of conformity,
• Pressure vessel certificate with technical drawing,
• Safety valve certificate.

**Important!**

Refrigerated compressed air dryer IZBERG N10S

The CORMAK compressed air dryer is a professional industrial device designed for effective removal of moisture, water vapour, and oil particles from pneumatic systems. Using efficient refrigeration technology, the dryer ensures stable operation of compressed-air-powered equipment, increasing durability and reliability. It is an ideal solution for companies seeking modern air treatment methods for pneumatic installations.

270 L COMPRESSED AIR RECEIVER WITH ACCESSORIES – HIGH-QUALITY PRESSURE VESSEL FOR COMPRESSED AIR SYSTEMS

The CORMAK pressure vessel with a capacity of 270 litres and a working pressure of 11 bar is a reliable solution designed for compressed air storage in industrial plants, workshops, and pneumatic installations. The robust steel construction, compliance with European directives, and CE certification make this air receiver an essential component of any compressed air system. Thanks to its optimised design and high pressure resistance, the vessel can function both as a storage buffer and as a stabilising element for compressor operating parameters.

Main advantages of the CORMAK 270 L pressure vessel

• Professional pressure-rated construction – manufactured from high-grade steel with a wall thickness of 4 mm, resistant to pressure and corrosion.
• CE marking – compliance with European safety and quality standards.
• Working pressure of 11 bar – suitable for the majority of pneumatic systems, including those with increased requirements.
• High capacity – 270 litres – ensures stable air supply and reduces compressor start-up frequency.
• Multi-connection system – five connection ports with diameters of 1.1/4", 2", 1/2" allow flexible integration into various installations.
• High manufacturing quality – durable anti-corrosion paint coating inside and outside the vessel.
• Vertical installation – space-saving design suitable for facilities with limited floor area.

Design and technology – robust construction for demanding applications

This compressed air receiver has been designed for intensive use in industrial environments. The body is made of structural steel with a 4 mm wall thickness, ensuring resistance to pressures up to 11 bar and long service life. All welds undergo strict quality control, and the vessel surfaces are protected with an anti-corrosion coating resistant to chemical and atmospheric factors.

The vessel is equipped with a nameplate bearing the CE mark, confirming compliance for operation within the European market. The set includes complete technical documentation, a pressure vessel passport, and material certificates.

Precision and operational efficiency – stable pressure and optimised compressor operation

Thanks to its large 270-litre capacity, the receiver acts as an air buffer, stabilising pressure throughout the pneumatic system. This ensures uniform operation of compressed-air-powered equipment and significantly extends compressor service life by reducing the number of start-stop cycles. The vertical design allows compact installation, which is particularly important in facilities with limited space.

A properly selected air receiver for the compressor minimises pressure drops and prevents system overload, resulting in improved efficiency and safety of the entire pneumatic installation.

Applications – versatility in industrial and workshop environments

CORMAK pressure vessels are widely used across various industrial sectors, as well as in automotive workshops, manufacturing plants, construction companies, and central compressed air installations. Due to their capacity and pressure resistance, they are suitable as:

• air tank for compressors – compressed air storage in pneumatic supply systems,
• pressure buffer vessel – reducing compressor operating frequency,
• compressed air storage tank – continuous supply for pneumatic machines and tools,
• an installation component in industrial automation and painting systems,
• a core element of pneumatic control systems.

Standard equipment

• Connection ports: 5 pcs – diameters 1.1/4", 2", 1/2"
• CE-marked nameplate
• Complete technical documentation and pressure vessel passport
• Internal and external anti-corrosion coating

Accessories included with the vessel:

• 1 × 1/2" plug
• Pressure gauge with reduction to 1/2"
• 1/2" tee fitting
• Inlet–outlet adapter 1.1/4"–3/4"
• 1/2" condensate drain valve

Important!

The safety valve is not included in the accessory set and must be sourced separately.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
