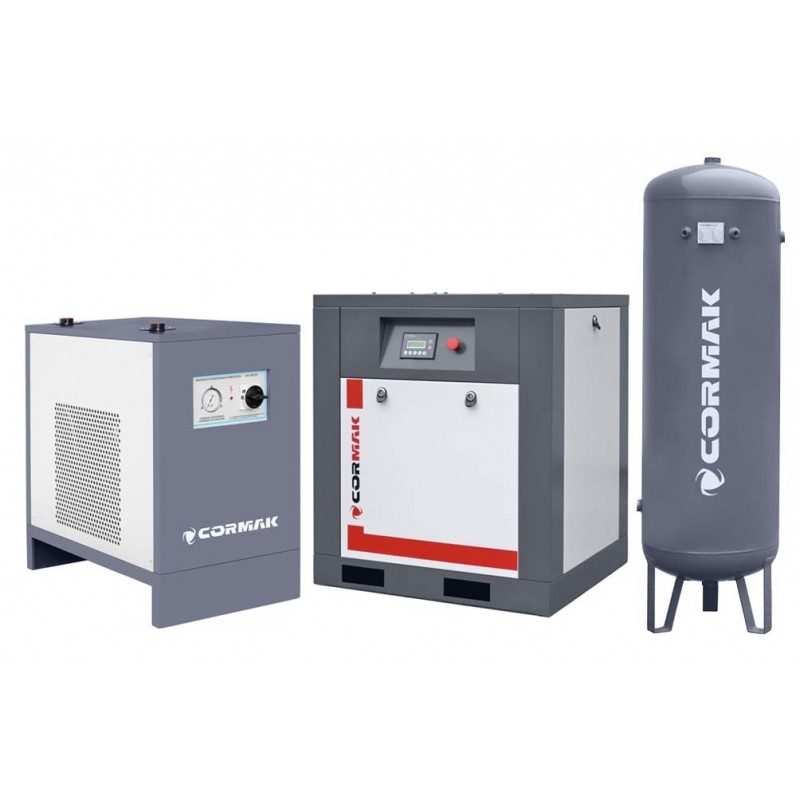

Screw Compressor with IZBERG N10S Dryer and 300L Vertical Tank CORMAK THEOR 10 750L/min 7.5kW

Screw Compressor with IZBERG N10S Dryer and 300L Vertical Tank CORMAK THEOR 10 750L/min 7.5kW -
  • Screw Compressor with IZBERG N10S Dryer and 300L Vertical Tank CORMAK THEOR 10 750L/min 7.5kW -

The set includes the THEOR 10 screw compressor, a vertical 300L compressed-air tank and the CORMAK IZBERG N10S air dryer. The screw compressor from the CORMAK THEOR series features state-of-the-art pneumatic solutions combined with high-quality materials and components. Low operating costs, ease of use, ergonomic and durable construction, and high performance ensure efficient and trouble-free operation.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.

VAT included
€4,100.00
access_time Shipping time: 7 working days after receipt of payment

Product available on request. Please contact our sales department.

There are not enough products in stock


  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Main advantages:

  • strong, compact screw-compressor construction from a European manufacturer
  • automation based on modern, proven high-quality components ensuring safe and efficient operation
  • specially designed cooler providing optimal working conditions even under high load
  • cooler connected to the module via high-quality hydraulic hoses
  • technology applied allows significant energy savings
  • special air outlet design for more efficient operation
  • the compressor is equipped with a durable, high-performance pump
  • unique filtration system with triple separation ensuring effective operation
  • reliable and robust drive-transfer system using a belt transmission, ensuring high effective performance
  • low noise level thanks to a specially designed sound-insulated casing (sound-absorbing panels)
  • electronic control from the MAM series allowing parameter settings incl.: service interval periods, power-loss alarms, phase-sequence change, phase failure, overheating, others, Master/Slave mode operation, possibility to connect up to 16 devices in a pneumatic network, remote control via computer, and more

Technical parameters THEOR 10

Motor power 7.5 kW
Voltage 400V/50Hz
Dimensions 800 x 700 x 930 mm
Weight 185 kg
Output 0–6 bar – average 790 L/min

At 6 bar – 750 L/min

At 8 bar – 750 L/min

At 10 bar – 730 L/min
Outlet connection diameter (G) 1/2"

Technical parameters N10S

AIR INLET/OUTLET PIPE DIAMETER (BSP) 1"
OPERATION IN PRESSURISED SYSTEMS UP TO 10 BAR
INLET TEMPERATURE ≤38°C
DEW POINT TEMPERATURE 3°C at working overpressure
CAPACITY 1500 L/min
POWER 0.58 kW
VOLTAGE 230 V
DIMENSIONS (L x W x H) 380x600x625 mm
WEIGHT 31 kg
TYPE AND AMOUNT OF REFRIGERANT R134a, 400 g

300L tank parameters:
Weight (kg) 110
Connections 7
Connection sizes 1/2", 1", 2"
Size 204.6x50 cm
Tank capacity (L) 300
Working pressure (bar) 11
Wall thickness (mm) 4
Diameter (mm) Ø 500
Height (mm) 2046

Tank fittings:

  • 1 plug ½”
  • Pressure gauge + reducer to 1/2|”
  • ½” tee
  • Inlet–Outlet 1/1.4–3/4”
  • ½” water drain valve
  • ½” hose quick coupling

Attention!!!

the safety valve is not included in the tank fittings and must be purchased separately.

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
