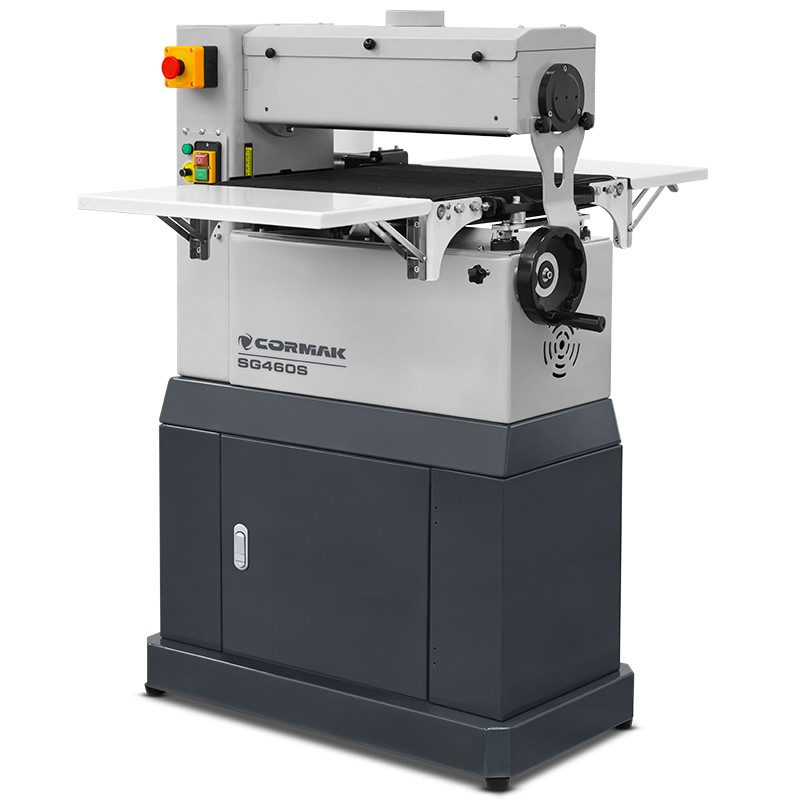

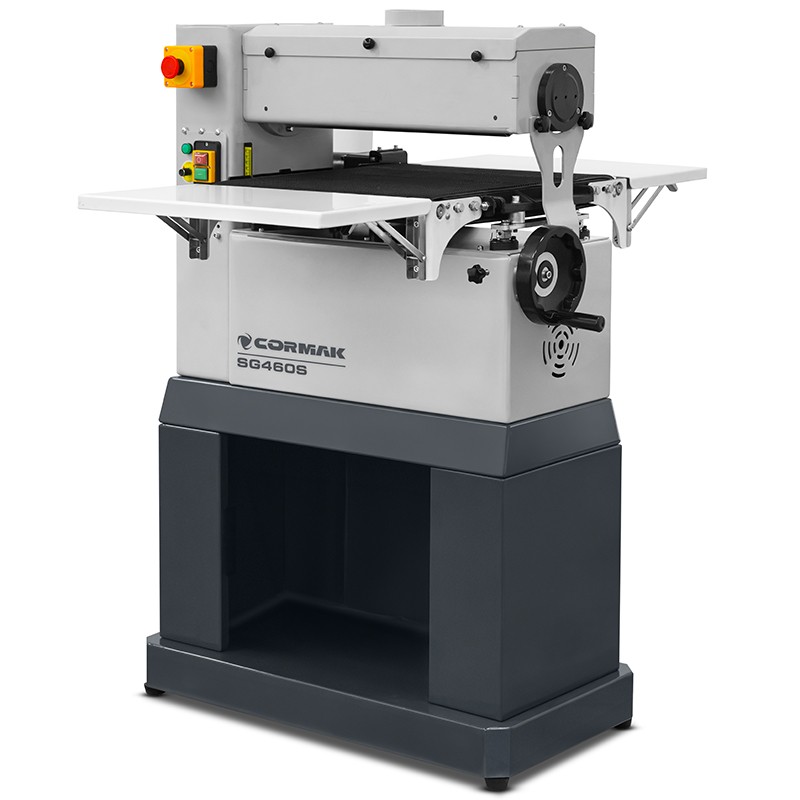

Drum and Wide Belt Sander CORMAK SG460S 400V – Metal Deburring and Finishing Machine with 460mm Working Width
The CORMAK SG460S 400V drum sander for metal is an advanced through-feed machine designed for precise surface finishing of metal components. With its sanding drum and 460mm working width, this model is ideal for series production and for workshops requiring consistent, high-quality surface finishes.
Main advantages of the machine
- Sanding drum with a 120mm diameter ensures uniform sanding without burning or scratching the workpiece.
- Conveyor belt system provides smooth feed and stable workpiece positioning beneath the sanding unit.
- Variable feed speed control from 0–4.0m/min allows perfect adjustment to material type.
- Dust extraction system with Ø100mm outlet ensures efficient removal of dust, improving workplace cleanliness and machine longevity.
- Robust industrial design – 148kg machine weight ensures excellent stability even under intensive use.
Construction and technology
The SG460S model is designed for stability, precision and durability. The main frame, made of heavy-duty steel, guarantees resistance to vibration and deformation. The 3.0kW main motor drives the sanding roller at 2800rpm, enabling efficient stock removal and burr elimination even from hard steels.
The 60W feed motor works with variable speed control, giving the operator precise command over the sanding process. The large 465mm belt width allows processing of wider components in a single pass, reducing total operation time.
Precision and performance
The machine offers precise thickness control for workpieces from 5mm to 80mm. A sanding belt speed of 14m/s ensures excellent surface quality without overheating or discolouration. The roller diameter and 465mm working length provide uniform contact pressure and a consistent finish across the entire surface.
Standard equipment
- 120mm sanding drum
- 465mm conveyor belt
- 3.0kW main motor
- 60W feed motor
- Ø100mm dust extraction port
- Adjustable table height
Optional equipment
- Metal dust extraction unit
- Abrasive belts in various grits
- Automatic material feeding system
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
Technical data
| Main motor [kW] |
3.0 |
| Voltage [V] |
400 |
| Sanding roller speed [rpm] |
2800 |
| Sanding belt size [mm] |
2760 × 75 |
| Conveyor belt size [mm] |
1120 × 450 |
| Worktable size [mm] |
460 × 465 |
| Dust outlet diameter [mm] |
100 |
| Feed speed (variable) [m/min] |
0–4 |
| Max. workpiece height [mm] |
80 |
| Min. workpiece height [mm] |
5 |
| Max. workpiece width [mm] |
460 |
| Sanding drum size [Ø × mm] |
120 × 465 |
| Feed motor power [W] |
60 |
| Machine dimensions [mm] |
880 × 720 × 1230 |
| Weight (net) [kg] |
148 |
Invest in the CORMAK SG460S deburring and sanding machine to enhance both surface quality and productivity in your workshop. Check availability in our online store or contact our technical advisor for details.
