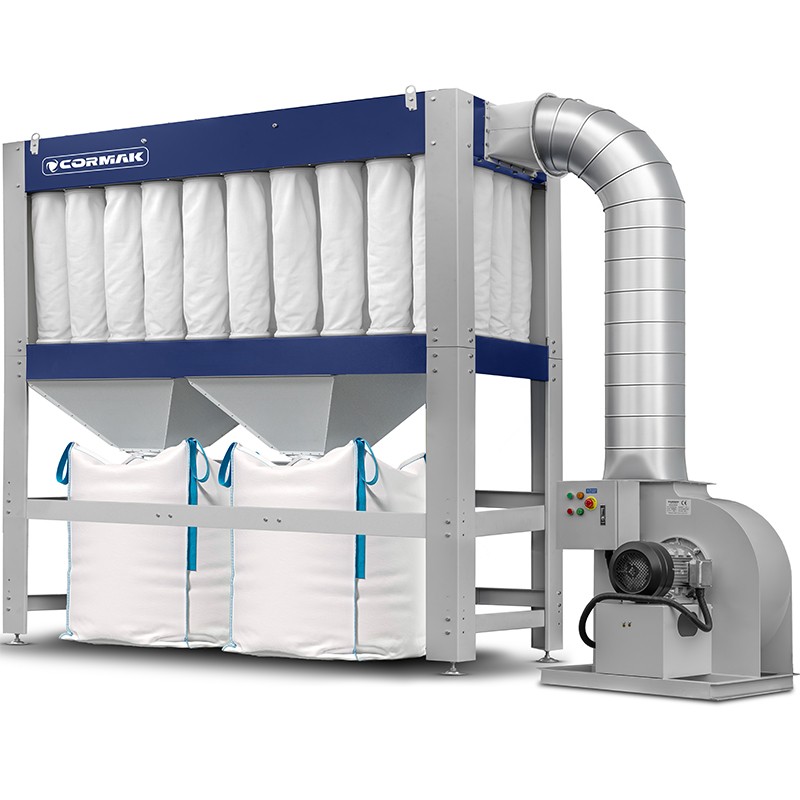

Professional Industrial Dust Extractor DCV11000BB BIG-BAG – Maximum Efficiency and Safety
The DCV11000BB BIG-BAG is a modern industrial dust extractor designed for intensive use in woodworking shops and production facilities. The device stands out due to the use of two high-capacity BIG-BAG bags, significantly enhancing waste management efficiency. Equipped with advanced filtration and safety systems, it ensures effective extraction of chips, dust, and shavings even during prolonged operation.
Main Advantages of the Machine
Construction and Technology
The DCV11000BB features a reinforced 11 kW motor and a precisely balanced impeller, providing stable, trouble-free operation and a high suction capacity of 12,000 m³/h. The housing is designed with acoustic insulation and maximum sealing of the suction system, resulting in cleaner and warmer air in the workplace.
Precision and Work Efficiency
With 50 polyester filters effective up to 5 microns and the option to install an additional HEPA filter, the device guarantees safe and thorough air purification. The high suction velocity (28–32 m/s) enables efficient removal of shavings and chips from multiple workstations simultaneously.
Applications
The DCV11000BB BIG-BAG model is an ideal solution for:
-
Woodworking shops
-
Furniture factories
-
Operators of panel saws, edge banders, and sanders
-
Other installations requiring a central dust extraction system
Standard Equipment
| Technical Parameters | |
|---|
| Power Supply Voltage |
400 V |
| Power |
11 kW |
| Motor Speed |
3000 rpm |
| Filter Type |
Polyester |
| Filter Dimensions |
Φ160 x 935 mm |
| Number of Filters |
50 pcs |
| Inlet Diameter |
350 mm |
| BIG-BAG Volume |
1.25 m³ |
| Capacity |
12,000 m³/h |
| Dimensions (W x L x H) |
3600 x 1160 x 4060 mm |
| Gross Weight |
790 kg |
The DCV11000BB BIG-BAG is an advanced central dust extraction system that, thanks to the latest technological and filtration solutions, is an excellent investment in the cleanliness, safety, and efficiency of your facility. Contact us for a personalized offer and to implement a dust extraction system tailored to your production needs.
