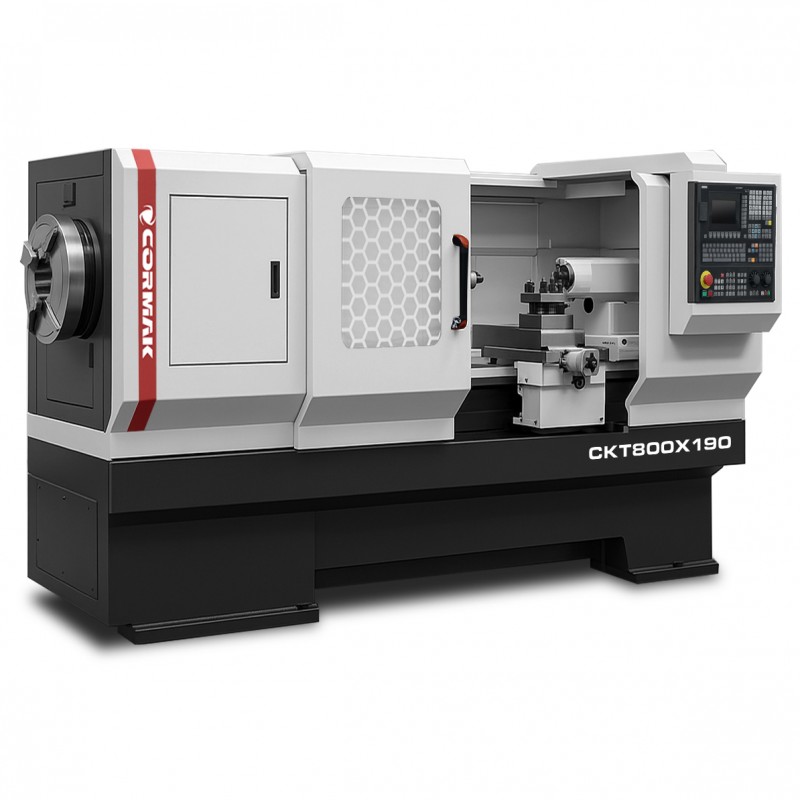

CORMAK CKT800x2000 PIPE TURNING MACHINE 130 MM SIEMENS SINUMERIK
The Cormak tube lathe has been designed for the precise and efficient machining of large diameter and long workpieces. It is capable of turning workpieces with diameters up to 800 mm and has a spindle clearance of 130 mm, allowing efficient machining of tubes and bushings used in the oil, gas, hydraulic and construction industries.
The use of two-sided spindle holder system ensures secure clamping of long workpieces, resulting in high accuracy and work safety. Solid construction, efficient drive and intuitive operation guarantee reliable machine operation even under the most demanding industrial conditions.
Are you a member of the VIES group?
VAT included
€42,373.50
The price has not changed
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical parameters
| CENTER DISTANCE | 1500 mm |
| MAXIMUM TURNING DIAMETER | 800 mm |
| MAXIMUM ELEMENT LENGTH | 420 mm |
| SPINDLE SPEED | 130 mm |
| TOOLS 4 OPTIONS | 6,8 |
| SPINDLE SPEED | 22-108,60-300,240-800 RPM |
| MAXIMUM X/Z AXIS FEED | 420/1350 |
| X/Z AXIS ACCELERATE FEED RATE | 4/8 m/min |
| X/Z AXIS REPEATABILITY | 0.012/0.02; 0.025 mm |
| TAILSTOCK SLEEVE DIAMETER | 100 mm |
| MAXIMUM TAILSTOCK SLEEVE TRAVERSE | 250 mm |
| TAILSTOCK SLEEVE TIP | MT5 |
| MOTOR POWER | 11 kW |
| WEIGHT | 4500 kg |
| DIMENSIONS | 4307 x 2040 x 1855 mm |
Available equipment
- SINUMERIK 808D control in Polish
- 2 x manual 4-jaw lathe chuck 520 mm
- 4-position tool head
- set of soft jaws
- manual tailstock
- cooling system
- automatic lubrication system for gears and guides
- halogen lighting 24V
- user manual in Polish
- CE declaration of conformity
Optional equipment
- spindle passage 220 mm
- 4-tool post
- handwheels
- 3-jaw chuck 400 mm
- chuck + hydraulic tailstock
- control: FANUC, , SIEMENS 828D
- steady rest + moving rest
CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF
We offer professional CNC controls from renowned brands Siemens and Fanuc, which provide precision, efficiency and ease of use. Our solutions are ideal for both smaller workshops and demanding industrial applications.
Siemens Sinumerik 808D – compact CNC control for basic applications
Siemens Sinumerik 808D is a modern, economical CNC control dedicated to entry-level lathes and milling machines. The system was designed with small and medium-sized enterprises in mind, offering:
- Intuitive operation – a simple interface based on a graphic screen that makes it easy to program and configure the machine.
- High reliability – a durable design resistant to difficult working conditions in the workshop.
- Wide compatibility – adapted to machines with basic technological requirements.
- A perfect solution for beginner CNC users who want to start working on a modern control system.
Siemens Sinumerik 828D – advanced control for demanding applications
Sinumerik 828D is a professional CNC control designed to work with milling machines and lathes requiring greater precision and efficiency. Its key features include:
- High computing power – fast data processing enables dynamic and accurate machining.
- Extensive technological functions – advanced machining cycles, interpolation and tool path optimization functions.
- Solid, compact design – designed to work in difficult industrial conditions.
- Easy integration with automation – expandable with additional modules and production process control options.
- Compatibility with CAD/CAM – seamless cooperation with design software and production management systems.
This is an excellent choice for companies looking for efficient and reliable CNC control for more complex machining operations.
