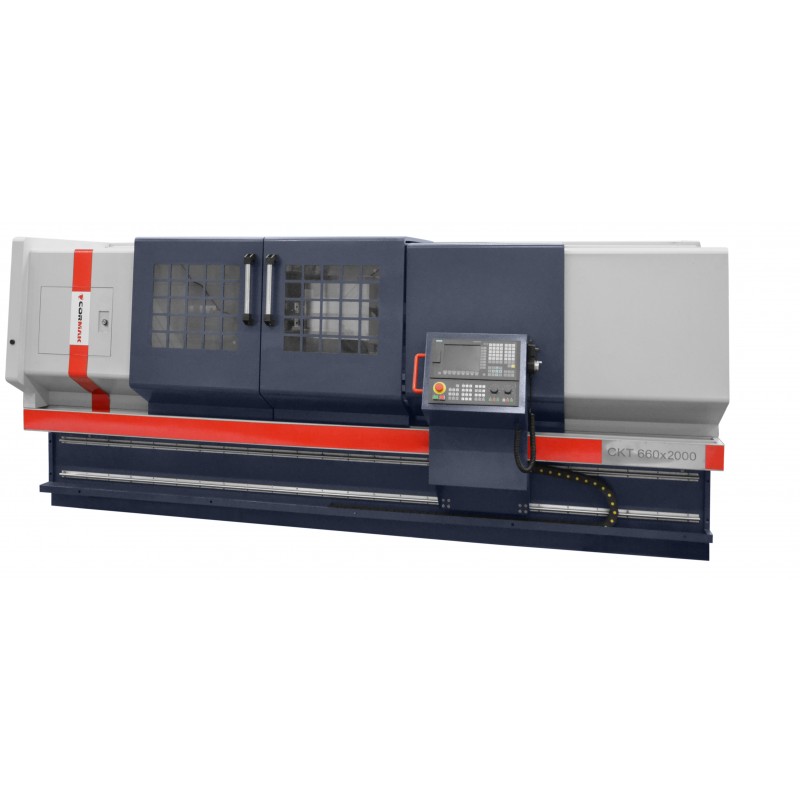

CNC Lathe 660x2000
Our CKT660x2000 CNC Lathe is a reliable tool for professionals and novices in series and unit production. This series of heavy-duty lathes is designed for efficient cutting with high accuracy. Thanks to its wide guideways and rigid design, the machine guarantees stability, turning precision and high repeatability of machining.
Variant
CNC Lathe 660x1500
CNC lathe 660x3000
Are you a member of the VIES group?
VAT included
€44,335.35
The lowest price of this product in the last 30 days before the discount was €44,335.35 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
CNC lathe CKT660x2000: Precision and Productivity in One Solution
Key Features:
- Stability and Precision: Thanks to its wide guideways and rigid design, our lathe provides the stability that is crucial for precision turning of workpieces of different shapes.
- Performance at a High Level: The CKT660x2000 series of heavy-duty lathes is designed for efficient cutting, making it ideal for series and small batch production
- Turning Features for Multiple Applications: The machine can turn external surfaces, internal surfaces, spherical surfaces and threads, making it a versatile tool in the production workshop.
When you invest in the CKT660x2000 CNC Lathe, you are investing in the precision, productivity and reliability needed to meet even the most demanding machining needs.
Technical specifications of the CNC 660x2000 lathe
| CONTROL |
Sinumerik 808 ad |
|
|
2000 mm |
|
TURNING DIAMETER ABOVE THE BED |
660 mm |
|
DIAMETER OF TURNING OVER SLIDE |
450 mm |
|
SPINDLE END |
A2-11 |
|
SPINDLE PASSAGE |
86 mm |
|
TOOL HOLDER |
4 positions with head cooling |
|
SPINDLE ROTATION |
15-1000 rpm |
|
MAXIMUM TRAVEL OF X-AXIS |
380 mm |
| ACCELERATED FEED RATE X/Z AXIS |
6/8 m/min |
|
TAILSTOCK PIN DIAMETER |
75 mm |
|
MAXIMUM TAILSTOCK QUILL TRAVEL |
250 mm |
|
TAILSTOCK QUILL CONE |
MK5 |
|
NUMBER OF TOOLS |
8 |
|
MOTOR POWER |
12 kW |
|
DIMENSIONS |
4600x1800x1900 mm |
|
WEIGHT |
5200 kg |
Available equipment of the CNC 660x2000 lathe
- SINUMERIK 808D control system in Polish
- SIEMENS servo drives
- hydraulic 3-jaw lathe chuck
- 4-position turret with cooling
- set of soft jaws
- hydraulic tailstock
- fixed support
- cooling system
- automatic lubrication system for gears and guides
- 24V halogen lighting
- DTR-ka in Polish
Optional equipment for CNC lathe 660x2000
- available controls SINUMERIK 828, Fanuc, GSK
- mobile support
- hydraulic chuck
- hydraulic tailstock
- fixed support
- tool probe
- chip conveyor
- additional soft jaws
- hard jaws
- sleeve holders
- workpiece gripper
- bar feeder
- tool holders
- CAD/CAM softwa
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
