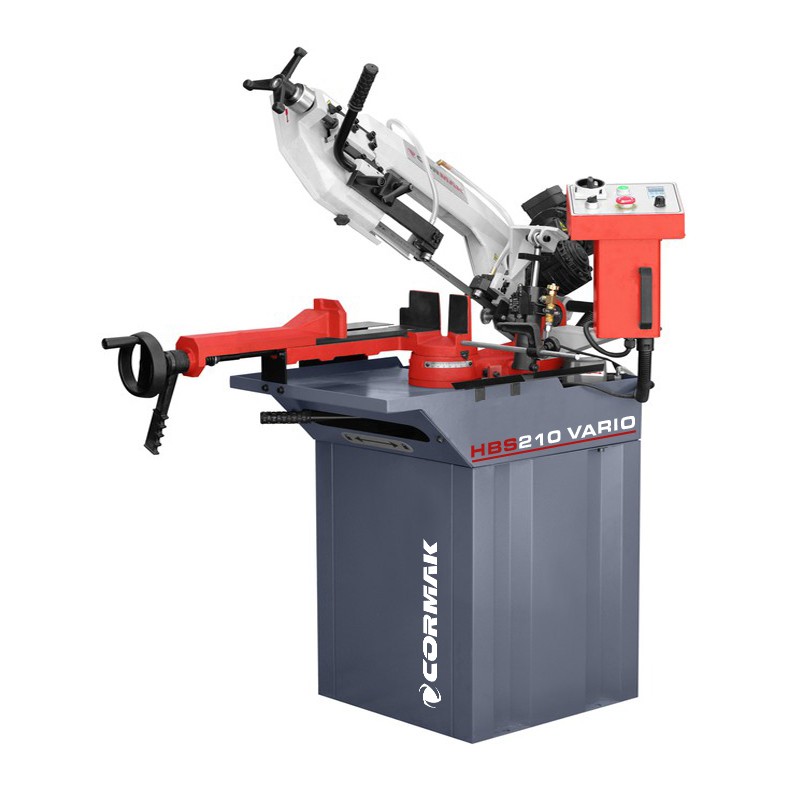

CORMAK HBS210 VARIO metal cutting machine + 2 M42 saws + 5L Emulsol + ZW580

Machine description

Horizontal band saw for metal with swivelling arm allows cutting in perpendicular to the axis of material cut and at any angle from 0º to  60º. The drive from the electric motor to the wheel driving the cutting band is transmitted with a motor with a MECHANICAL transmission (not belt). The cutting band is tensioned on two cast iron wheels with a hand tightener and guided by a set of roller bearings.

Element cut can be fed manually or by any feeding device, meanwhile the tool feed is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Appropriate speed of arm lowering is obtained due to the valve controlling oil flow between hydraulic cylinder chambers. Band guides are equipped with a set of roller bearings. This has a huge impact on the band guiding, its life, cut straightness, cutting accuracy and quality.

Appropriate machining speed (band travel speed) is achieved by changing the position of a button on the control panel. Particular kinds and types of materials require particular cutting speeds. Rigid arm is made of SHAPED CAST IRON. Control panel is placed by the arm.

The base is designed as a rigid welded body of steel sheets. Inside is a separate flood coolant container with an electropump. The shape of the base upper part constitutes a tank for flood coolant draining and chips produced during cutting. Cast iron workbench is attached to the base, with a swivel arm and control panel on separate arm. The main cutting move in the cutting process is moving the cutting band and the arm lowering feed. The arm lowering speed (the cutting speed) is adjusted with the hydraulic cylinder.

The feed speed is controlled by the control panel. Smooth speed adjustability in the range of 0–90 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.

Additionally

•     2 M42 saw blades
•     5L Emulsol
•     ZW580 magnetic chip collector
