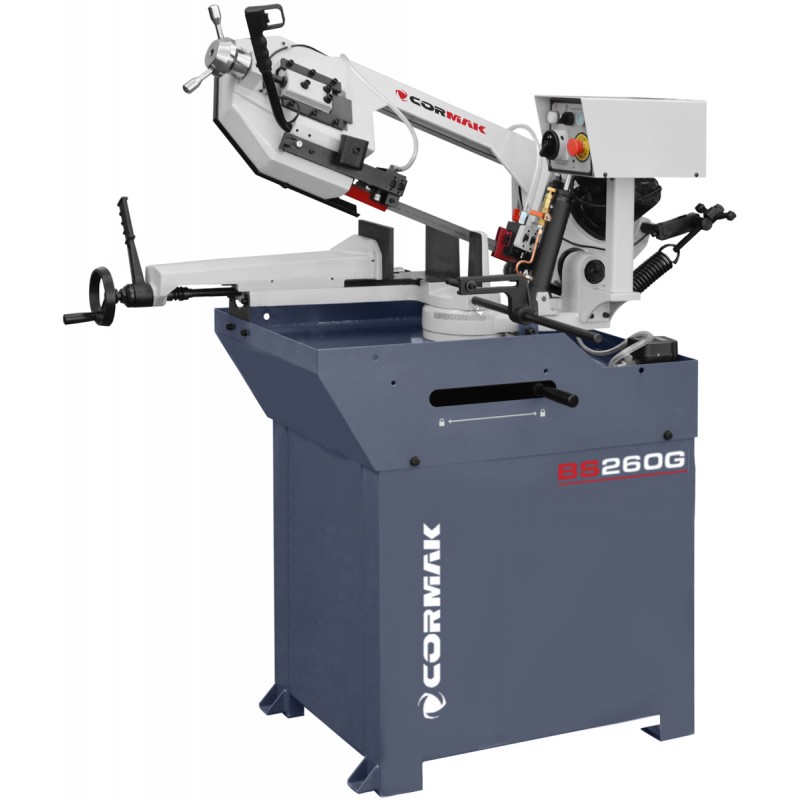

BS260G Metal Band Saw 27mm
The CORMAK BS 260G band saws, due to being equipped with a hydraulic cylinder, a cooling and an arm swivelling up to 60°, together with blades from renowned German Röntgen company, are used commonly in ironworking where precision, quality and cutting speed are important.
Are you a member of the VIES group?
VAT included
€1,845.00
The lowest price of this product in the last 30 days before the discount was €1,845.00 gross
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Horizontal band saw with a swivelling arm for cutting metals, allows for cutting in plane perpendicular to the axis of material cut and at any angle from 0 to 60º. Material for cutting can be fed manually or by any mechanical feeding device, with automatic tool feed. Band guides are equipped with dedicated carbide plates and bearings. This has a huge impact on band guiding, its durability, cut straightness, cutting accuracy and quality.
Machine's arm is made of profiled CAST IRON. Control panel is located by the arm. The drive from the electric motor directed to the cutting band driving wheel is transmitted by a motor with worm drive. The cutting band is tensioned on two cast iron wheels with a manual tightener and guided by adjustable rolling and linear set of carbide guides. A separate flood coolant container with an electropump is inside. The arm lowering speed (the cutting speed) is adjusted with a hydraulic cylinder. The feed speed is controlled by the control panel. There are 2 cutting band speeds to choose from: 36 and 72 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.
Technical data
| Cutting band saw dimensions |
2455×27×0.9 mm |
|
Band tension |
mechanical (manual) |
|
Band speed |
36, 72 m/min |
|
Feed speed |
0–50 m/min (stepless feed) |
|
Arm lowering control |
stepless – hydraulic cylinder |
|
Vice base height |
900 mm |
|
Power supply |
3-phase 400V |
|
Motor power |
1.1 kW |
|
Weight |
216 kg |
|
Warranty |
12 months |
|
Manual |
yes |
|
CE declaration |
yes |
| Angle |
|
|
|
|
0º |
ø230 |
260×150 |
225×225 |
|
45º |
ø165 |
180×130 |
165×165 |
|
60º |
ø105 |
100×90 |
110×110 |
*Please note that machine is sold without CEE connector by default, since there are many different types of it. If you would like to receive it with the machine, please write it to the seller before making a purchase/during order proceeding.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
See online videos
Related categories
You might also like
Reviews
Jestem zadowolony
Jestem zadowolony z zakupu. Przecinarka jest naprawdę mocna. Nie staje na cięciu grubszych detali.
Zakup udany
Przecinarka dobrze wykonana. Zakupiłem ją z magnetycznym zbieraczem wiórów i chłodziwem. Szybka wysyłka
Ekstra przecinarka
Solidna przecinarka. Nie trzęsie się. Cięcie jest proste. Fajnie, że można kupić maszynę + oprzyrządowanie.
