Screw Compressor with Inverter, IZBERG N20S Dryer and 1000L Vertical Tank CORMAK THEOR 15 10bar

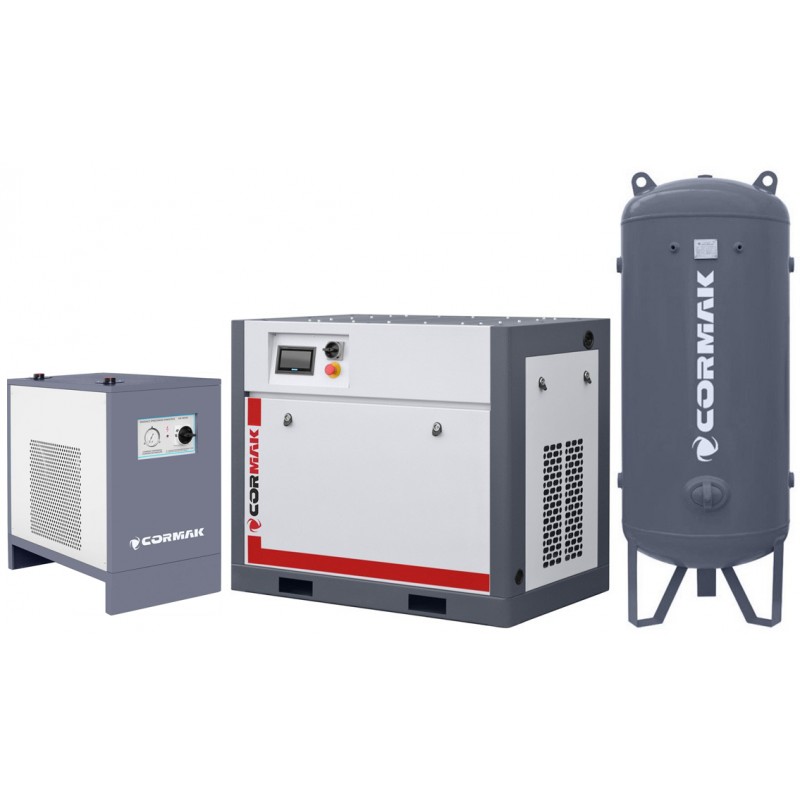

The set includes the THEOR 15 INVERTER screw compressor equipped with an inverter, a vertical 1000L compressed-air tank and the CORMAK IZBERG N20S air dryer. The screw compressor from the CORMAK THEOR series features state-of-the-art pneumatic solutions combined with high-quality materials and components. Low operating costs, ease of use, ergonomic and durable construction, and high performance ensure efficient and trouble-free operation.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€6,475.00

access_time Shipping time: 7 working days after receipt of payment

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
200,00 PLN

Main advantages:

INVERTER – The stepless compressor speed control system is the most economical regulation method. Its main advantage is lower energy consumption compared to traditionally controlled compressors and the ability to maintain constant set pressure.
strong, compact screw-compressor construction from a European manufacturer
automation based on modern, proven high-quality components ensuring safe and efficient operation
specially designed cooler providing optimal working conditions even under high load
cooler connected to the module via high-quality hydraulic hoses
technology applied allows significant energy savings
special air outlet design for more efficient operation
the compressor is equipped with a durable, high-performance pump
unique filtration system with triple separation ensuring effective operation
the compressor uses a reliable and robust direct-drive system between the motor and screw mechanism (via a claw coupling), ensuring: high effective performance, better vibration reduction, and eliminating the need for adjustment required in traditional belt-drive systems
low noise level thanks to a specially designed sound-insulated casing (sound-absorbing panels)

Technical parameters THEOR 15 INVERTER

Motor power	11 kW
Voltage	400V/50Hz
Capacity	At 6 bar – 1380 L/min At 8 bar – 1150 L/min At 10 bar – 1030 L/min
Dimensions	1180 x 750 x 1000 mm
Weight	325 kg

Technical parameters N20S

AIR INLET/OUTLET PIPE DIAMETER (BSP)	1"
OPERATION IN PRESSURISED SYSTEMS	UP TO 10 BAR
INLET TEMPERATURE	≤38°C
DEW POINT TEMPERATURE	3°C at working overpressure
CAPACITY	2800 L/min
POWER	0.58 kW
VOLTAGE	230 V
DIMENSIONS (L x W x H)	420x700x690 mm
WEIGHT	37 kg
TYPE AND AMOUNT OF REFRIGERANT	R134a, 550 g

1000L tank parameters:

Weight (kg):	230
Connections:	8
Connection sizes:	1/2", 2"
Size:	222.7 x 85 cm
Tank capacity (L):	1000
Working pressure (bar):	11
Diameter (mm):	Ø 850
Height (mm):	2250
