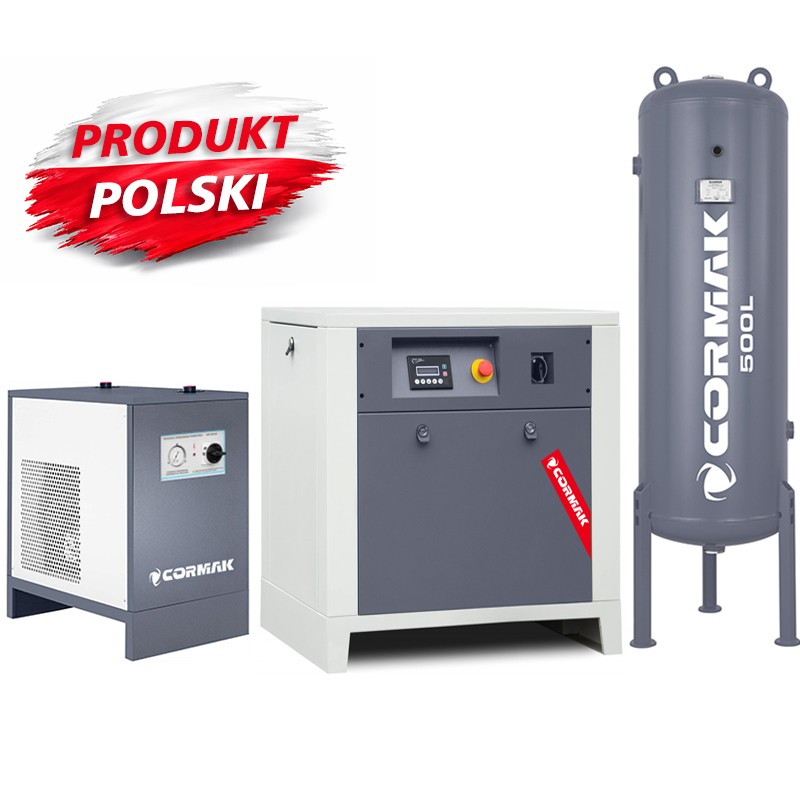

CORMAK LUFT 1000 Screw Compressor – Power and Precision for Your Business
Looking for a professional solution to power pneumatic tools in your workshop, paint shop, or small production line? The CORMAK LUFT 1000 Screw Compressor is the ideal choice. With 7.5 kW power and an impressive real output of up to 990 L/min, it ensures a continuous air supply for efficient operation of impact wrenches, blow guns, and spray tools.
This model is designed for continuous operation, making it perfect for demanding environments such as tyre services, automotive workshops, and light manufacturing facilities. Investing in a CORMAK screw compressor means improving workplace comfort – say goodbye to noisy piston compressors and enjoy quieter, smoother, and more stable operation.
The LUFT 1000 features a direct drive system for superior efficiency and reduced power loss compared to belt-driven models. This innovative design ensures optimal motor power utilisation, resulting in greater output and lower energy consumption.
The maximum operating pressure of this screw compressor is 10 bar. An intuitive MAM series electronic control panel provides full control over working parameters and key operational data, increasing flexibility and process management efficiency.
✅ Pressure: up to 10 bar | ✅ Output: up to 990 L/min | ✅ Power: 7.5 kW
CORMAK Screw Compressors – When You Expect the Highest Quality and Efficiency
Looking for solutions that go beyond market standards? CORMAK screw compressors represent innovation and reliability, created for the most demanding industrial applications.
- Innovative design: Our compressors are based on advanced engineering and European precision craftsmanship. The solid construction combined with modern components guarantees long-lasting, trouble-free operation in all conditions.
- Quiet and comfortable operation: Designed with attention to detail, CORMAK compressors feature exceptionally low noise levels. Effective soundproofing and vibration reduction systems ensure a comfortable working environment, improving operator focus and wellbeing.
- Smart control: The intuitive MAM electronic control panel is the command centre of your compressor. It allows precise monitoring, maintenance scheduling, and quick diagnostics – ensuring system stability and component protection.
- Adaptability: Every application is unique. CORMAK compressors can be configured with additional air treatment systems, making it easy to tailor them to your industry’s specific requirements.
- Dynamic working pressure: Automatic pressure regulation ensures that the compressor delivers only the required amount of air at any given time – maximising energy efficiency and minimising losses.
- Sustainable technology: We are committed to eco-friendly solutions. Energy-efficient technologies reduce operating costs and environmental impact, while the optional heat recovery system enables maximum energy utilisation.
CORMAK: Technology that drives your success!
Main Advantages of the 7.5 kW Induction Motor
- Stable pressure: Maintains constant pressure in the pneumatic system, ensuring consistent operation of tools and machinery. Prevents pressure fluctuations and increases process precision.
- Extended component lifespan: Smooth operation reduces mechanical stress on the screw block, bearings, coupling, and motor. This results in longer compressor life and lower maintenance costs.
- Quiet operation: The specially designed enclosure with sound-insulating panels keeps noise levels low, improving workplace acoustic comfort.
- Flexibility and adaptability: Efficiently handles varying air demand throughout the day or week – ideal for workshops and production environments with fluctuating workloads.
- Advanced diagnostics and control: The integrated control panel offers comprehensive monitoring, fault diagnostics, remote access, and maintenance scheduling – ensuring full system optimisation.
Combining proven induction motor reliability with intelligent electronic control, the LUFT 1000 compressor delivers efficient, economical, and flexible compressed air generation for modern industrial needs.
Screw Module – The Heart of Your Compressor
High-quality CORMAK screw compressors, such as the LUFT 1000 model, are built around advanced screw modules that determine their performance and reliability. By combining proven engineering with innovative solutions, CORMAK ensures that each module is precisely crafted to meet the demands of continuous, intensive operation.
Key features of CORMAK screw modules:
- Modern technology and efficiency: The screw module guarantees top-level performance and efficiency, designed for maximum output with minimal energy use.
- Precision and control: Advanced design allows for accurate control of the air compression process, maintaining stable pressure and optimal performance across the pneumatic system.
- Durability and reliability: The screw modules are engineered for long service life, using high-quality materials and precision machining to ensure consistent performance under industrial conditions.
By choosing a CORMAK compressor, you invest in technology backed by years of engineering experience and a commitment to innovation – increasing productivity and reliability in your operations.
Intuitive CORMAK Control Panel – Complete Control at Your Fingertips
In CORMAK screw compressors like the LUFT 1000, a key element of reliability and optimisation is the advanced MAM series control panel. Designed for efficient compressed air management, it enables real-time monitoring and precise adjustment of working parameters.
What does the CORMAK control panel offer?
- Comprehensive monitoring: Real-time display of essential operating data, including pressure, temperature, and compressor status.
- Easy configuration: User-friendly interface for adjusting settings and parameters to meet the system’s current air demand.
- Instant alerts: Automatically notifies the operator of service needs, faults, or system irregularities to ensure continuous uptime.
The CORMAK control system guarantees stability, efficiency, and complete control of your compressed air network.
Complete Documentation Included
Peace of mind with certified technical documentation.
Every CORMAK compressor comes with full technical documentation, ensuring smooth registration and compliance with industrial safety standards.
Documentation includes:
- Declaration of conformity
- Pressure vessel certificate with technical drawing
- Safety valve certificate
- User manual (English version)
Note: Each unit is supplied directly from CORMAK with complete documentation and quality certification.
Technical Specifications:
LUFT 1000 Screw Compressor
| Motor power |
7.5 kW |
| Voltage |
400 V / 50 Hz |
| Output 0–6 bar |
990 L/min |
| Output at 6 bar |
950 L/min |
| Output at 8 bar |
950 L/min |
| Output at 10 bar |
930 L/min |
| Outlet connection (G) |
½" |
| Dimensions (L × W × H) |
810 × 610 × 850 mm |
| Weight |
160 kg |
Refrigeration Air Dryer IZBERG N10S
The CORMAK Air Dryer is a professional industrial unit designed for effective removal of moisture, water vapour, and oil particles from pneumatic systems. Using advanced refrigeration technology, the IZBERG N10S dryer ensures stable operation of all air-powered equipment, extending their service life and reliability. It’s a perfect solution for companies that demand clean, dry, and efficient compressed air.
Main Advantages of the CORMAK Air Dryer
- Advanced refrigeration system — a two-stage air cooling process guarantees efficient separation of water and oil condensate.
- Stable operation up to 10 bar — suitable for use in all standard industrial air systems.
- High capacity — up to 1500 L/min, ideal for small and mid-sized compressed air installations.
- Energy-saving design — the variable-speed fan reduces energy use to as little as 0.58 kW.
- Automatic condensate drain — provides reliable condensate discharge without operator supervision.
- Compact size and simple installation — perfect for retrofit or integration into existing air systems.
- Eco-friendly refrigerant R134a — guarantees efficient cooling while maintaining environmental safety.
Design and Technology
The dryer’s robust and efficient design ensures long-lasting performance under demanding conditions. Its key components include:
1. Air-to-Air Heat Exchanger
Incoming compressed air is pre-cooled by the colder outgoing air, improving energy efficiency through heat recovery and reducing load on the refrigeration system.
2. Refrigeration Evaporator
The air is then cooled to a dew point temperature of 3°C, condensing water vapour and oil mist for removal.
3. Condensate Separator
The cooled air and liquid mixture pass through a high-efficiency separator, which automatically drains condensate outside the unit.
4. Fan Speed Control System
The variable-speed fan adjusts cooling intensity to the actual operating conditions, lowering power consumption and extending component life.
Precision and Efficiency
The refrigeration technology effectively removes moisture and oil, protecting your pneumatic installation from corrosion, seal damage, and equipment failure. A constant 3°C dew point ensures reliable, high-quality compressed air at all times.
Applications
The IZBERG N10S air dryer is ideal for a wide range of industries where clean and dry compressed air is essential for performance and safety:
- Mechanical workshops
- Production plants
- Food industry (with appropriate filtration)
- Electronics industry
- Automation systems
- Paint shops and spray booths
- CNC machinery with pneumatic drives
Equipment
- Automatic condensate drain
- Integrated water and oil separator
- Variable-speed fan — adjusts automatically to the load
- Electronic control system — ensures constant performance
- Durable housing resistant to industrial conditions
Technical Specifications – IZBERG N10S Air Dryer
| Parameter | Value |
|---|
| Inlet/Outlet connection (BSP) |
1" |
| Max working pressure |
10 bar |
| Max inlet air temperature |
≤ 38°C |
| Dew point temperature |
3°C |
| Capacity |
1500 L/min |
| Power consumption |
0.58 kW |
| Power supply |
230 V |
| Dimensions (L × W × H) |
380 × 600 × 625 mm |
| Weight |
31 kg |
| Refrigerant type and quantity |
R134a, 400 g |
Choose Professional Air Treatment
By choosing the CORMAK Refrigeration Air Dryer, you invest in stability, efficiency, and long-term system protection. This is an essential component of any professional compressed air installation — ensuring dry, clean, and safe air supply for your tools and equipment.
Don’t risk downtime or corrosion – trust CORMAK air dryers to maintain quality and reliability in your system!
500 L Vertical Air Tank with Fittings – Heavy-Duty Pressure Vessel for Compressed Air Systems
The CORMAK 500 L air receiver with a 11 bar working pressure is a robust and certified vessel for industrial compressed air systems. Built from thick steel, CE-marked and UDT-certified, this tank provides safe storage, pressure stabilisation, and efficient air buffering. Its vertical design saves space, making it ideal for workshops, production facilities, and central air installations.
Main Advantages of the 500 L CORMAK Air Receiver
- Heavy-duty steel construction — 4 mm thick, pressure- and corrosion-resistant walls.
- CE and UDT certification — full compliance with EU safety standards.
- 11 bar working pressure — compatible with most industrial pneumatic systems.
- Large capacity – 500 L — ensures stable pressure and reduces compressor duty cycles.
- Multiple connection ports — six threaded inlets/outlets (1¼", 2", ½") for flexible installation.
- Protective anti-corrosion coating — both internal and external surfaces.
- Vertical design — saves valuable floor space and allows easy access to fittings.
Construction and Technology
The 500 L air tank is made of structural steel with 4 mm walls, designed for 11 bar pressure. Each weld undergoes strict quality inspection, and all tanks feature internal and external anti-corrosion protection. Supplied with CE label, UDT number, and full technical passport.
Performance and Efficiency
The large air capacity serves as a pressure buffer, stabilising air pressure throughout the system and extending compressor lifespan by reducing start/stop cycles. Vertical installation is ideal for confined spaces, ensuring both compactness and performance.
Technical Specifications – 500 L Air Receiver
| Weight |
145 kg |
| Connections |
6 |
| Connection size |
1¼", 2", ½" |
| Overall dimensions |
2098 × 600 mm |
| Tank capacity |
500 L |
| Working pressure |
11 bar |
| Wall thickness |
4 mm |
| Diameter |
Ø 600 mm |
| Height |
2098 mm |
Included Accessories
- ½” plug
- Pressure gauge + ½” reducer
- ½” tee fitting
- Inlet/outlet adapter 1¼”–¾”
- ½” water drain valve
Note:
The safety valve is not included and must be purchased separately.
