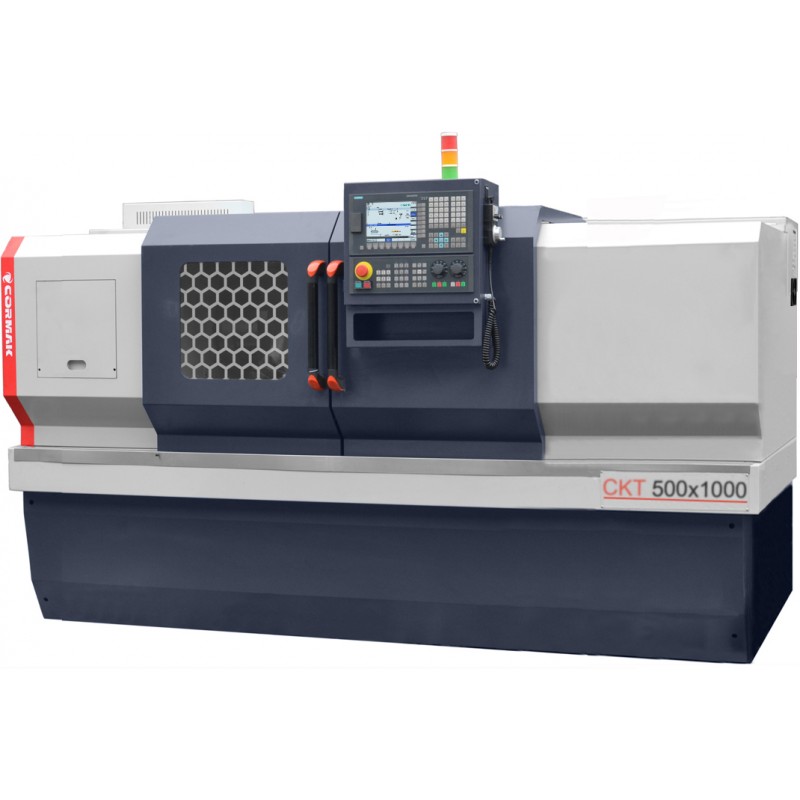

CNC lathe 500x1000 HYDRAULICS

  • Reduced price
CNC lathe 500x1000 HYDRAULICS -
  • CNC lathe 500x1000 HYDRAULICS -
  • CNC lathe 500x1000 HYDRAULICS -
  • CNC lathe 500x1000 HYDRAULICS -
  • CNC lathe 500x1000 HYDRAULICS -
  • CNC lathe 500x1000 HYDRAULICS -
  • CNC lathe 500x1000 HYDRAULICS -

This is a proven series of lathes based on a rigid structure. The machine is available in several control versions (FANUC, SIEMENS, GSK), available with a manual and hydraulic handle. The equipment includes an additional spindle with a driven tool (only for 3-axis controllers).

Variant
CNC LATHE CORMAK 500x1000 MANUAL CHUCK SIEMENS SINUMERIK
CKT 500x1000 CNC Lathe
500x1500 CNC Lathe
Are you a member of the VIES group?

VAT included
€39,667.50
€33,517.50
The lowest price of this product in the last 30 days before the discount was €33,517.50 gross
Last items in stock

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Technical data

MAXIMUM TURNING DIAMETER 500mm
MAXIMUM TURNING DIAMETER ON THE SLIDING PLATE 280mm
CENTER SPACE 1000 mm
SPINDLE SPEED RANGE 200-1800 rpm (200-1200 at 91 mm passage)
SPINDLE PASS 75 mm (91 mm option)
ENGINE POWER 7.5 kW / 11 kW option
SURFACE ROUGHNESS Ra1.6
NUMBER OF TOOLS 6-tool head (option 8)
TOOL DIMENSION 25×25 mm
DIMENSIONS 2355×1520×1860 mm
WEIGHT 2900 kg

Equipment available

  • SINUMERIK 808D control in Polish
  • SIEMENS servo drives
  • hydraulic 3-jaw lathe chuck
  • 4-position turret head
  • set of soft jaws
  • hydraulic tailstock
  • cooling system
  • automatic lubrication system for gears and guides
  • 24V halogen lighting
  • user manual in Polish
  • EC declaration

Optional equipment

  • available SINUMERIK 828 controls,
  • movable rest
  • 8-position turret head
  • hydraulic chuck
  • hydraulic tailstock
  • steady rest
  • tool probe
  • chip conveyor
  • additional soft jaws
  • jaws hard
  • sleeve holders
  • gripper of machined parts
  • bar feeder
  • tool holders
  • CAD/CAM software

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
