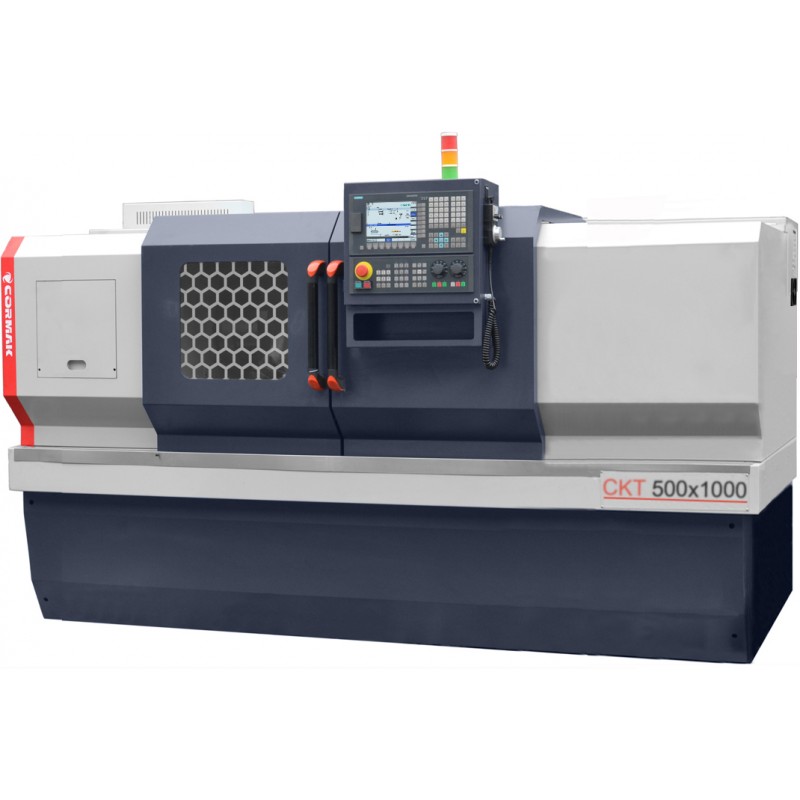

500x850/1000 CNC Lathe
A renowned series of lathes based on a rigid construction. Machines are available with different control systems (FANUC, SIEMENS, GSK), with both manual or hydraulic chuck. An additional spindle with power tool is available (only for 3-axis drivers).
Variant
CNC lathe 500x1000 HYDRAULICS
CKT 500x1000 CNC Lathe
500x1500 CNC Lathe
Are you a member of the VIES group?
VAT included
€27,675.00
The lowest price of this product in the last 30 days before the discount was €27,675.00 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
|
Swing capacity |
500 mm |
|
Swing capacity on slip plate |
280 mm |
|
Maximum turning length |
1000 mm |
|
Spindle speed range |
200–2200 rpm |
|
Spindle bore |
63 mm |
|
Motor power |
7.5 kW / 11 kW optional |
|
Surface roughness |
Ra 1.6 |
|
Number of tools |
6-tool head |
|
Tools dimensions |
25×25 mm |
|
Dimensions |
2355×1520×1860 mm |
|
Weight |
2200 kg |
Available equipment
- SINUMERIK 808D control system in Polish
- SIEMENS servomotors
- 3-jaw manual chuck
- 6-position turret head
- soft jaw kit
- manual tailstock
- cooling system
- automatic gear and guide lubrication system
- 24V halogen lighting
- Polish and English manual
- EC declaration
Optional equipment
- SINUMERIK 828, Fanuc, GSK control systems
- follow rest
- hydraulic chuck
- steady rest
- hydraulic tailstock
- tool probe
- shavings transporter
- additional set of soft jaws
- set of hard jaws
- sleeve chucks
- gripper for workpieces
- bar feeder
- toolholders
- CAD/CAM software
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
