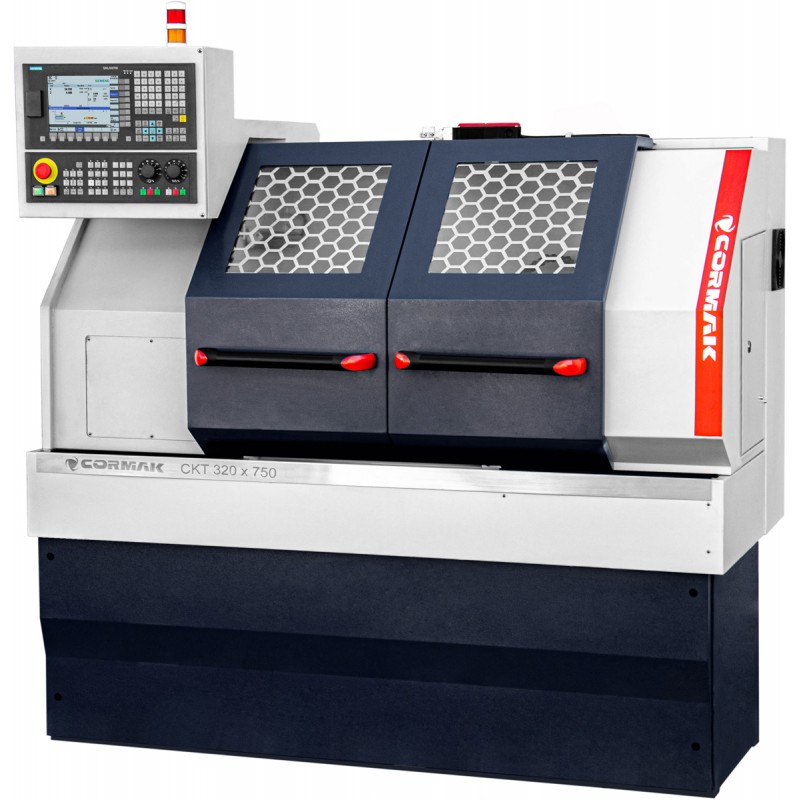

CORMAK CNC LATHE 320x750 HYDRAULIC CHUCK

Reduced price

Discover the performance and versatility of the CORMAK 320x750 CNC Lathe, ideal for machining metal parts and other materials. With a solid cast iron bed, resistant to vibrations, and induction hardened and ground guides, this machine guarantees precision and durability.

Equip your company with a CORMAK 320x750 CNC Lathe and experience efficient and precise machining!

Variant

CORMAK CNC LATHE 320x1000 WITH MANUAL CHUCK SIEMENS SINUMERIK

320x500 CNC Lathe

320x750 CNC Lathe

CORMAK CNC LATHE 320x1000 SIEMENS SINUMERIK HYDRAULIC CHUCK

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

~~€17,435.25~~

€15,350.00

The lowest price of this product in the last 30 days before the discount was €17,435.25 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Efficient CORMAK 320x750 CNC Lathe with Optional Equipment to Adapt to Your Needs.

Thanks to the optional equipment, you can adapt the lathe to your needs. Choose from various controls, such as SINUMERIK 828, add a tool probe for automatic measurement, or a hydraulic chuck for fast and convenient operation. A wide range of additional options, such as a moving steady rest, a fume separator from inside the cabin or even CAD/CAM software, make this lathe a versatile tool ready to handle even the most demanding tasks.

Technical data

TURNING DIAMETER OVER BED	320mm
TURNING DIAMETER OVER BRACKET	90mm (option 135mm)
TEETH SPACING	750mm
SPINDLE SPEED	100-2500 rpm
SPINDLE BORE	51mm
SPINDLE TIP	MK5
NUMBER OF TOOLS	4 (option 6,8)
TOOL SIZE	16x16mm
MAXIMUM SHAFT DIAMETER IN PASSAGE	44mm
HORSE TIP	MT3
MAXIMUM TAILSTOCK TRAVEL	100mm
ENGINE POWER	3.7kW
DIMENSIONS	2370x1420x2000mm
NET/GROSS WEIGHT	1040/1300 kg

Available equipment

SINUMERIK 808D control in Polish
SIEMENS servo drives
3-jaw hydraulic lathe chuck
6 position turret head
set of soft jaws
hydraulic tailstock
cooling system
automatic lubrication system for gears and guides
24V halogen lighting
DTR in Polish
CE declaration

Optional equipment

SINUMERIK 828, FANUC controls available,
movable steady rest
steady rest
tool probe
additional soft jaws
hard jaws
sleeve handles
gripper for processed parts
rod feeder
separator of fumes from inside the cabin
waste oil coolant separator
tool holders
CAD/CAM software
