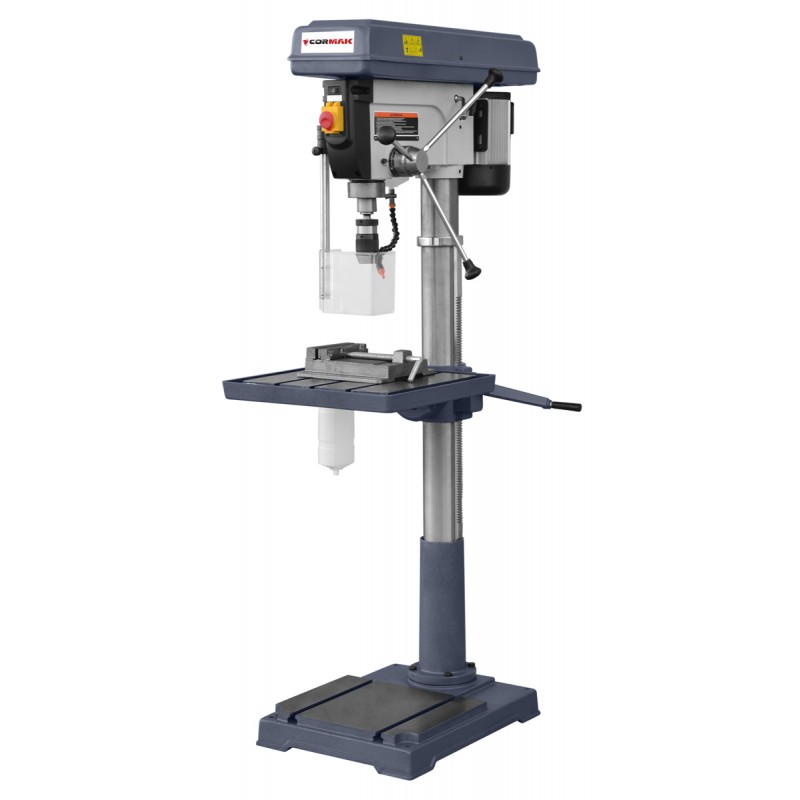

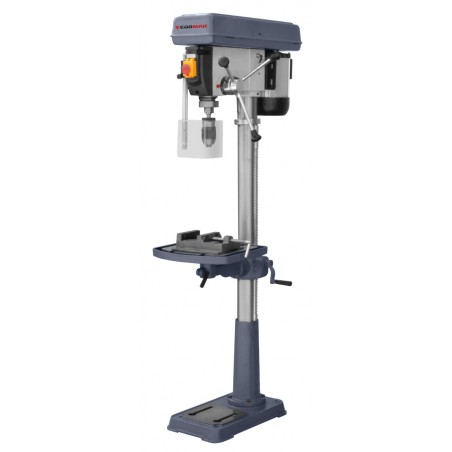

Pillar Drill for Metal CORMAK 25mm
The CORMAK 25 column drilling machine is a high-performance industrial drill equipped with a two-speed 1,000 W motor with forward and reverse rotation. Its robust design ensures precise drilling performance. The height-adjustable worktable with a rack-and-pinion system tilts 0–45° to both sides. Supplied with a 123 mm vice and a drill chuck.
Variant
Pillar Drill for Metal CORMAK Z5020 BF Vario
Pillar Drill for Metal CORMAK Z5020 Vario 230V
Pillar Drill for Metal CORMAK Z5020 Vario 1.5kW 400V
Pillar Drill for Metal CORMAK 25mm
Pillar Drill for Metal CORMAK WS32GP with Cooling System
Pillar Drill for Metal CORMAK WS32BGP with Autofeed and Cooling System
Pillar Drill for Metal CORMAK Z5028W with Cooling System
Geared Column Drill CORMAK ZS-40HS
Geared Column Drill CORMAK ZS-40HS with Tapping Chuck Set
Geared Column Drill with Power Feed CORMAK ZS-40B
Geared Column Drill with Power Feed CORMAK ZS-40B
Pillar Drill for Metal CORMAK Z5040L with Angular Box Table and Cooling System
Pillar Drill CORMAK Z5050
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€949.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Pillar Drill CORMAK 25mm – reliable column drilling machine for precision metalwork
The CORMAK 25mm column drilling machine is a professional drilling machine for metal designed for intensive industrial and workshop use. With its heavy-duty construction, precise spindle guidance, and wide speed range, it ensures efficient and safe operation even under demanding production conditions.
Main advantages
- Maximum drilling capacity 25 mm – suitable for machining structural and alloy steels.
- Two-speed 1,000 W motor – provides both low and high rotational speeds for versatile machining applications.
- Wide spindle speed range – from 80 to 3,000 rpm, controlled via belt transmission and two-speed motor switch.
- Forward and reverse rotation – enables tapping operations and easy tool retraction.
- Rigid 92 mm column – ensures maximum stability and vibration damping during deep drilling.
- Large 355 × 355 mm worktable – adjustable in height and tilting for flexible operation.
Construction and technology
The CORMAK 25 column drilling machine is built on a sturdy steel column with cast-iron base and table for superior rigidity. The spindle runs on precision bearings for accurate, repeatable drilling. The MK3 taper spindle provides compatibility with a wide range of tooling. A two-speed asynchronous motor and multi-step belt transmission allow optimal cutting speed adjustment for different materials.
Precision and performance
The 80 mm spindle stroke allows deep hole drilling without repositioning the workpiece. The large clearance between spindle and table (640 mm) and spindle and base (1,136 mm) enables machining of both small and large components. Reversible spindle rotation makes the column drilling machine suitable for threading and tapping. Adjustable worktable height and tilt improve ergonomics and versatility.
Applications
The CORMAK 25 column drilling machine is ideal for:
- locksmith workshops and tool rooms,
- industrial maintenance departments,
- technical schools and training centres,
- small-series and prototype production in metal and plastic.
Standard equipment
- Two-speed 1,000 W motor
- Forward/reverse rotation switch
- Self-tightening drill chuck (MK3)
- 123 mm machine vice
- User manual and CE conformity declaration
Technical data
| Parameter | Value |
|---|---|
| Maximum drilling capacity | 25 mm |
| Chuck capacity | 16 mm |
| Spindle taper | MK3 |
| Distance spindle–column | 216 mm |
| Maximum spindle travel | 80 mm |
| Distance spindle–table | 640 mm |
| Distance spindle–base | 1,136 mm |
| Table dimensions | 355 × 355 mm |
| Column diameter | 92 mm |
| Motor / Supply voltage | 1,000 W / 400 V |
| Spindle speed range | 80 – 3,000 rpm |
| Overall dimensions | 1,635 × 642 × 356 mm |
| Net weight | 85 kg |
Choose reliability and precision – choose CORMAK 25
The CORMAK 25 column drilling machine delivers the accuracy, performance, and durability demanded by modern metal workshops. Order online at cormak.pl and experience industrial precision today!
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
See online videos
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like

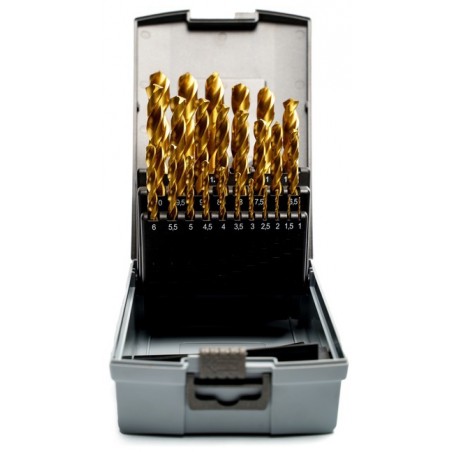

Cobalt Drill Bit Set CORMAK HSSE TiN 1–13mm 25pcs
The HSSE TiN cobalt drill bit set (1–13mm, 25 pieces) is a complete toolkit for drilling steel, cast iron and hard-to-machine materials. The TiN (titanium nitride) coating increases wear resistance and extends drill life. Ideal for workshops and industrial applications — ensuring precision and durability in everyday work. ...More
Reviews
Profesjonalny sprzęt
Świetnie wykonana wiertarka, działa płynnie i nie wymaga żadnych poprawek.
Waldemar B Polecam
Bardzo dobra maszyna, super wykonanie wiertarka jest sztywna, ciężka .
Wydajność na najwyższym poziomie
Doskonała do długotrwałej pracy, cicha i stabilna. Jestem bardzo zadowolony z zakupu.
Wiertarka
Wydaje sie bc dobrym sprzetem przymierzam sie do zakupu
Perfekcyjna w swojej klasie
Wiertarka działa płynnie, bardzo precyzyjna, idealna do moich zadań.
Niezawodna i dokładna
Wiertarka bardzo precyzyjna, łatwa w obsłudze, nie zawiodła mnie nigdy.
Dobrze zaprojektowana
Zdecydowanie warto zainwestować w ten model, doskonała do wszystkich prac w warsztacie.
Wiertarka godna polecenia
Świetny wybór do warsztatu, doskonale sprawdza się w codziennych zadaniach.
Polecam
Nie ma się do czego przyczepić. Dobrze wykonany sprzęt. Polecam każdemu.
Bardzo dobra wiertarka
Polecam, wiertarka dobrej jakości. Jestem z niej bardzo zadowolony.
Solidność i precyzja
Bardzo dobra jakość wykonania, precyzyjna wiertarka, polecam!
Wysoka jakość wykonania
Idealna do precyzyjnych prac, nie ma problemu z żadnym materiałem.
Wydajność i komfort pracy
Wiertarka jest bardzo wygodna w użyciu, cicha i precyzyjna.
Idealna do intensywnej pracy
Wiertarka jest bardzo precyzyjna, używam jej codziennie do różnych zadań.
Doskonała precyzja
Wiertarka działa bez zarzutu, ma bardzo dobrą regulację prędkości.
Niezawodna do codziennego użytku
Świetnie sprawdza się w pracy w warsztacie, jest stabilna i cicha.
Sprawdzona w działaniu
Bardzo solidna wiertarka, która nigdy mnie nie zawiodła.
Wysokiej jakości sprzęt
Wiertarka jest wyjątkowo precyzyjna, sprawdza się w każdej pracy.
Customers who bought this product also bought:
14 other products in the same category:
The industrial CORMAK Z5050 column drilling machine is suitable for both small workshops and large-scale production. Its heavy-duty cast-iron construction and rigid steel column ensure stability and accuracy even under heavy load. The drill features a wide speed range, automatic spindle feed, ...More
Pillar Drill for Metal CORMAK Z5050B SERVO with Autofeed and Cooling System
The CORMAK Z5050B SERVO pillar drill is a precise, modern machine designed for professional workshop and industrial use. It features a servo-controlled system that automatically adjusts spindle speed and feed according to the tool diameter and material type. This intelligent automation shortens ...More
Pillar Drill for Metal CORMAK Z5040L with Angular Box Table and Cooling System
The industrial gear-driven CORMAK Z5040L pillar drill ensures excellent drilling performance and accuracy. Its robust cast-iron construction provides stability and long service life. Equipped with an adjustable angular box table, automatic feed, reversible spindle rotation, depth gauge, and a ...More
Pillar Drill for Metal CORMAK Z5020 Vario 230V
Thanks to its rigid design, the drill provides excellent drilling precision. The tilting table enables a wide range of machining options. The machine is equipped with an electronic speed indicator, drilling depth gauge and movable head. A 125 mm vice is included. The model features stepless spindle speed control. ...More
- Reduced price
Geared Column Drill CORMAK ZS-40HS with Tapping Chuck Set
The CORMAK ZS-40HS industrial geared column drill is a robust, high-performance machine. Equipped with a swivelling head with height adjustment, automatic tapping function and precision handwheel, it provides flexibility and accuracy during operation. The powerful motor ensures excellent drilling ...More
Geared Column Drill CORMAK ZS-40HS
The CORMAK ZS-40HS industrial geared column drill is a solid, high-performance machine. Equipped with a swivelling head with height adjustment, automatic tapping function and precision handwheel, it ensures flexibility and accuracy during operation. The powerful motor guarantees excellent ...More
Pillar Drill for Metal CORMAK Z5020 Vario 1.5kW 400V
Thanks to its rigid design, the drill ensures excellent drilling precision. The tilting table provides a wide range of machining options. The unit is equipped with an electronic speed indicator, drilling depth gauge and movable head. A 125 mm vice is included. The model features stepless spindle speed control. ...More
- Reduced price
Geared Column Drill with Power Feed CORMAK ZS-40B
The industrial geared pillar drilling machine CORMAK ZS-40B is a robust, high-performance tool featuring a swivelling head with height adjustment, automatic tapping, and a precision handwheel. The powerful motor ensures efficient drilling, while the gear transmission running in an oil bath ...More
- Reduced price
Pillar Drill for Metal CORMAK Z5020 BF Vario
The CORMAK Z5020 BF Vario pillar drill ensures excellent drilling quality thanks to its rigid construction. The tilting table allows a wide range of operations, while the electronic speed display and drilling depth indicator increase control and precision. A 100 mm vice is included as standard, making the machine ready for immediate use. ...More
Pillar Drill for Metal CORMAK WS32BGP with Autofeed and Cooling System
Powerful and efficient industrial pillar drill with a height of 190 cm. THE MACHINE IS EQUIPPED WITH AUTOMATIC SPINDLE FEED. The drill has an efficient cooling system with a metal spout. Equipped with 8 SPEED SETTINGS ranging from 140, 250, 380, 500, 580, 850, 1250, to 1960 rpm. The machine ...More
Pillar Drill for Metal CORMAK 25mm
The CORMAK 25 pillar drilling machine is a highly efficient column drill, factory-fitted with a powerful two-speed 1,000 W motor featuring right- and left-hand rotation. Its robust design ensures precise operation. The worktable height is adjustable via a rack-and-pinion system and can tilt 0–45° ...More

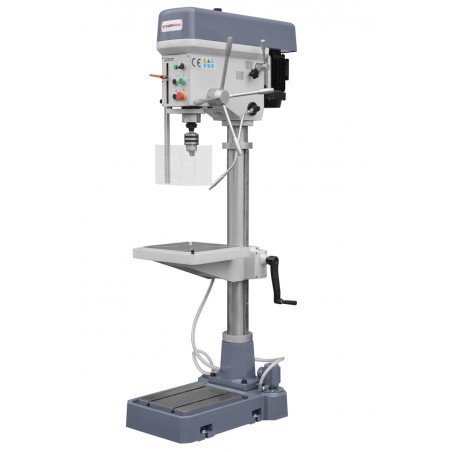

Pillar Drill for Metal CORMAK WS32GP with Cooling System
