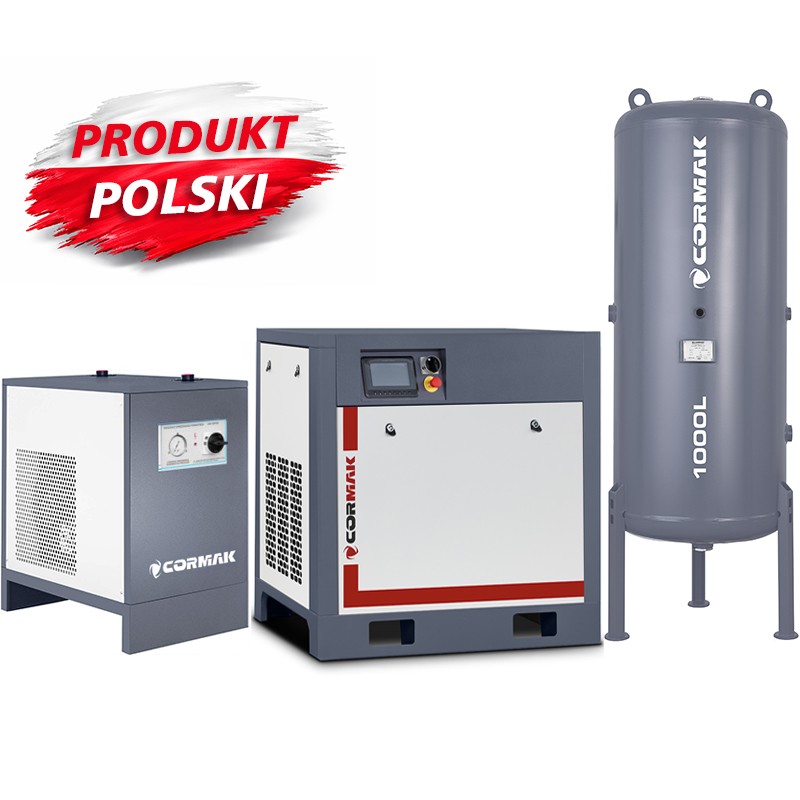

Screw Compressor CORMAK THEOR 30 INVERTER – Power and Precision for Your Business
Are you looking for a professional solution to power pneumatic tools in your workshop, paint shop, or production line? The CORMAK THEOR 30 INVERTER screw compressor is the ideal choice. With a power of 22kW and an actual capacity of up to 3600L/min, it ensures a constant supply of compressed air necessary for the efficient operation of impact wrenches, blow guns, and paint tools.
This model is designed for continuous duty, making it perfect for demanding environments such as tyre services, large automotive workshops, and production facilities. Investing in a CORMAK screw compressor is a step towards improving workplace comfort – say goodbye to loud piston compressors and enjoy quieter and more stable performance.
The THEOR 30 INVERTER features a direct drive, resulting in significantly higher efficiency and reduced power losses compared to belt-driven models. This innovative design guarantees optimal motor power utilisation, providing greater performance with lower energy consumption.
The maximum pressure generated by this screw compressor is 10 bar. Full control of operating parameters is ensured by the intuitive electronic control panel from the MAM series, providing access to key compressor data for maximum flexibility and process control.
✅ Pressure: up to 10 bar | ✅ Capacity: up to 3600L/min | ✅ Power: 22kW
CORMAK Screw Compressors – When You Expect the Highest Quality and Efficiency!
Looking for solutions that exceed market standards? CORMAK screw compressors are synonymous with innovation and reliability, created for the most demanding applications.
- Innovative design: Our compressors are based on advanced engineering and European-grade precision. The solid structure, enriched with modern components, guarantees long-lasting and reliable operation under all conditions.
- Optimised efficiency: Thanks to inverter technology and intelligent algorithms, the CORMAK THEOR 30 INVERTER dynamically adjusts energy consumption to the current air demand. This means significantly lower operating costs while maintaining maximum performance.
- Quiet operation and comfort: Designed with attention to detail, our compressors feature exceptionally low noise levels. Effective sound-damping and vibration-reduction systems ensure a comfortable working environment, improving concentration and operator wellbeing.
- Smart control: The intuitive MAM electronic control panel serves as the control centre of your compressor. It allows precise monitoring of parameters, maintenance planning, and quick diagnostics, ensuring stability and protection of key components. Remote access further enhances control.
- Adaptability: Every application is unique. CORMAK compressors can be configured with additional air-treatment systems, allowing perfect adaptation to your industry’s needs.
- Dynamic working pressure: Automatic pressure regulation ensures the compressor delivers exactly the required air volume, maximising energy efficiency and reducing losses.
- Sustainable technology: We promote environmentally responsible solutions. Energy-saving technologies used in our compressors reduce both electricity costs and environmental impact, while heat-recovery options enable maximum energy reuse.
CORMAK – Technology that drives your success!
Main advantages of the 22kW induction motor with inverter
- Significant energy savings: The inverter provides smooth and precise speed control of the induction motor. The compressor adjusts output to the current air demand, eliminating idle operation, frequent start/stop cycles, and energy losses from venting excess air. Depending on air-use profile, savings can reach from 25% up to even 50%.
- Stable pressure in the system: Continuous speed regulation maintains nearly constant pressure in the compressed air network, preventing pressure surges and improving process accuracy.
- Reduced inrush current and electrical load: Soft-start via inverter eliminates high starting currents, protecting the electrical system from voltage drops and stress.
- Extended component life: Smooth operation without abrupt starts or stops reduces mechanical strain on the screw block, bearings, couplings, and motor, extending service life and reducing maintenance costs.
- Quiet operation: When working at lower speeds, the compressor generates less noise, improving the acoustic comfort of the workplace.
- Greater flexibility: The inverter-controlled compressor efficiently handles variable air demands, making it ideal for facilities where consumption fluctuates daily or seasonally.
- Advanced control and diagnostics: The inverter integrates with modern panels, offering comprehensive monitoring, fault diagnostics, remote control, and maintenance scheduling for optimal system performance.
Combining proven induction motor reliability with intelligent inverter control makes this screw compressor an efficient, economical, and flexible compressed air source, perfectly suited to modern industry.
Screw module – the heart of your compressor
High-quality CORMAK screw compressors, such as the THEOR 30 INVERTER, are based on advanced screw modules that determine their performance and durability. Combining proven design and innovation, CORMAK ensures every module is refined to meet the most demanding industrial workloads.
Key features of CORMAK screw modules:
- Modern technology and efficiency: Screw modules integrated with energy-optimising systems (including inverter cooperation) deliver excellent performance and outstanding efficiency at minimal energy consumption.
- Precision and control: Advanced engineering enables precise control of air generation, ensuring stable pressure and optimal operation of the pneumatic system.
- Durability and reliability: Built for long service life, the robust construction and high-quality materials ensure dependable performance even in harsh conditions.
Choosing a CORMAK compressor means investing in technology developed through years of experience and continuous innovation – delivering higher productivity and efficiency for your company.
Integrated inverter – the foundation of efficiency and savings
In CORMAK screw compressors like the THEOR 30 INVERTER, the built-in inverter is the key component that revolutionises air delivery. It intelligently manages motor performance and provides major benefits to the user.
How it works and what you gain:
The inverter enables smooth speed regulation of the motor, providing precise control over compressor performance. In practice, this means the compressor supplies exactly the air volume required at any given time – unlike traditional systems that run at full speed or idle.
Main advantages of the integrated inverter:
- Smooth start and quiet operation: The inverter ensures gentle motor start-up, eliminating high current surges and ensuring quiet, stable operation from the outset.
- Maximum energy efficiency: The variable-speed drive dynamically adapts energy use to actual demand. Depending on consumption profile, energy savings can reach up to 50%. Combined with CORMAK’s efficient motors, this reduces operational costs.
- Extended component life: Smooth, shock-free operation reduces mechanical load on the motor and screw block, extending compressor lifespan and lowering service costs.
The integrated inverter in CORMAK compressors is an investment that quickly pays off, offering both savings and exceptional precision and reliability in air delivery.
Intuitive CORMAK control panel – full control at your fingertips
In CORMAK screw compressors such as the THEOR 30 INVERTER, the advanced MAM series control panel ensures reliable and optimised operation. Designed for effective management of the compressed air system, it enables real-time monitoring and fast reaction to all working parameters.
What does the CORMAK control panel offer?
- Comprehensive monitoring: Real-time tracking of key compressor parameters – pressure, temperature, and operating status.
- Easy adjustment: An intuitive interface allows simple modification of settings and parameters to match system requirements.
- Instant notifications: The controller responds quickly to operational events and displays alerts for maintenance or faults.
The CORMAK control panel guarantees reliability and precision, ensuring efficient management of your compressed air system.
COMPLETE DOCUMENTATION FOR TECHNICAL INSPECTION
Ensure peace of mind during Technical Inspection Office control.
When purchasing our compressor, you receive complete documentation for easy registration of the unit with the Technical Inspection Office (UDT).
The documents include:
- Declaration of conformity,
- Tank certificate with technical drawing,
- Safety valve certificate,
- User manual.
Note!
By choosing our offer, you receive equipment directly from an experienced European manufacturer of compressors.
Technical parameters
|
|---|
| Motor power |
22kW |
| Voltage |
400V/50Hz |
| Capacity 0–6 bar |
3600L/min |
| Capacity at 6 bar |
3200L/min |
| Capacity at 8 bar |
3000L/min |
| Capacity at 10 bar |
2800L/min |
| Outlet |
1' |
| Dimensions |
1250 × 850 × 1150mm |
| Weight |
425kg |
IZBERG N30S Refrigeration Air Dryer
The CORMAK air dryer is an industrial unit designed for efficient removal of moisture, water vapour and oil from pneumatic systems. Using reliable refrigeration technology, it ensures stable operation and long service life of compressed air systems – an ideal choice for companies requiring high-quality air treatment.
Main features of the CORMAK compressed air dryer
- Advanced refrigeration system — a two-stage air cooling process to the dew point ensures effective separation of moisture and oil particles.
- Stable operation up to 10 bar — suitable for use in standard industrial installations.
- High performance — up to 3800L/min, making it an excellent solution for medium and large compressed air systems.
- Energy-efficient design — equipped with a variable-speed fan reducing power consumption to only 0.9kW.
- Automatic condensate drain valve — ensures reliable drainage without the need for operator supervision.
- Compact size and easy installation — perfect for upgrading existing pneumatic systems.
Construction and technology
The refrigeration dryer has been designed for maximum efficiency and durability. The main construction components include:
1. Air-to-air heat exchanger
In the first stage, the inlet air passes through a heat exchanger, where it is pre-cooled by the cooler air exiting the evaporator. The counterflow configuration improves energy efficiency through effective heat recovery.
2. Refrigeration system evaporator
In the second stage, the compressed air enters the evaporator and is cooled to a dew point temperature of 3°C. This causes condensation of water vapour and oil particles contained in the air.
3. Condensate separator
After cooling, the air and condensate mixture passes through an efficient separator, where condensate is automatically removed from the system.
4. Fan speed control system
The variable-speed fan technology intelligently adjusts cooling intensity to actual operating requirements, reducing energy consumption and increasing component lifespan.
Precision and performance
Thanks to refrigeration technology, the CORMAK air dryer effectively removes water and oil, protecting installations from corrosion, actuator wear, and tool damage. The stable dew point temperature ensures consistent air quality and reliability of the entire pneumatic system.
Applications
The CORMAK air dryer is suitable for a wide range of industries where clean, dry air is critical to the proper operation of machines and equipment. Typical applications include:
- Mechanical workshops
- Production plants
- Food industry (with appropriate hygiene filters)
- Electronics industry
- Industrial automation
- Painting systems and spray booths
- CNC machines with pneumatic drive
Equipment
- Automatic condensate drain valve
- Built-in water and oil separator
- Variable-speed fan – automatic adjustment to operating conditions
- Electronic control system – stable parameters
- Compact, durable housing resistant to industrial environments
Technical parameters
| Parameter | Value |
|---|
| Inlet/outlet pipe diameter (BSP) |
1 1/2" |
| Maximum working pressure |
10 bar |
| Maximum inlet air temperature |
≤ 38°C |
| Dew point temperature |
3°C |
| Capacity |
3800L/min |
| Power |
0.9kW |
| Supply voltage |
230V |
| Dimensions (L × W × H) |
850 × 480 × 480mm |
| Weight |
95kg |
| Type and quantity of refrigerant |
R410a, 650g |
Choose professional air treatment
By choosing the CORMAK refrigeration air dryer, you invest in the stability and efficiency of your pneumatic system. This device is an essential component of any professional compressed air installation – especially where high air purity and protection of machinery from corrosion and failures are required.
VERTICAL AIR TANK 1000L WITH EQUIPMENT – HIGH-QUALITY PRESSURE VESSEL FOR COMPRESSED AIR INSTALLATIONS
The CORMAK pressure vessel with a capacity of 1000 litres and a working pressure of 11 bar is a reliable solution for storing compressed air in industrial plants, workshops and pneumatic systems. Its durable steel construction, compliance with European directives and certification make it an essential component of every compressed air installation. Thanks to its optimised structure and high pressure resistance, it can serve both as a storage buffer and as a stabilising element for compressor operation.
Main advantages of the CORMAK 1000L air tank
- Professional pressure design – made of 4mm-thick high-grade steel, resistant to pressure and corrosion.
- UDT and CE certification – compliant with European safety and quality standards.
- Working pressure 11 bar – suitable for most pneumatic systems, including high-demand applications.
- Large capacity – 1000 litres – ensures stable air supply and reduces compressor start frequency.
- Multi-connection system – six ports (2", ½") for flexible connection to various systems.
- High-quality coating – internal and external anti-corrosion paint ensures long life.
- Vertical construction – saves space in workshops and industrial environments.
Construction and technology – durable design for demanding applications
This air tank is designed for intensive industrial use. The body is made of structural steel with 4mm wall thickness, providing resistance to 11-bar pressure and long-term operation. All welds are inspected for quality, and surfaces are coated with anti-corrosion paint resistant to chemicals and environmental effects.
The tank features a nameplate with CE marking and UDT notified body number, confirming conformity with European standards. A complete technical documentation package, including certificates and material attestations, is included.
Precision and performance – stable pressure and extended compressor life
With its 1000L capacity, the tank acts as a buffer, stabilising pressure across the entire pneumatic network. This ensures even operation of air-powered equipment and extends compressor lifespan by reducing start–stop cycles. The vertical design allows compact installation, ideal for facilities with limited space.
A properly matched air tank minimises pressure drops and prevents system overloads, enhancing efficiency and ensuring installation safety.
Applications – versatile for industrial and workshop use
CORMAK pressure tanks are used in many industries, automotive workshops, manufacturing plants, construction sites and central air systems. Ideal as:
- Compressor air tank – air storage in pneumatic power systems
- Buffer tank – stabilises pressure and reduces compressor cycles
- Compressed air reservoir – continuous supply for machines and pneumatic tools
- Component of industrial automation and painting systems
- Essential part of pneumatic control systems
Standard equipment
- Connection ports: 6 pcs – diameters 2", ½"
- Nameplate with CE mark
- UDT notified body number
- Complete technical documentation and pressure passport
- Internal and external anti-corrosion coating
Technical parameters
| Weight (kg) |
230 |
| Connections |
6 |
| Connection size |
2", ½" |
| Dimensions |
230 × 80.8cm |
| Tank capacity (L) |
1000 |
| Working pressure (bar) |
11 |
| Wall thickness (mm) |
4 |
| Diameter (mm) |
Ø808 |
| Height (mm) |
2300 |
Tank fittings
- ½” plug – 2 pcs
- ½” nipple – 1 pc
- ½” tee – 1 pc
- ½” to ¼” reducer – 1 pc
- ¼” pressure gauge – 1 pc
- 1” to ¾” reducer – 2 pcs
- ½” ball valve – 1 pc
Attention!!!
The safety valve is not included in the fittings set and must be purchased separately.
Contact us to order equipment tailored to your installation!
