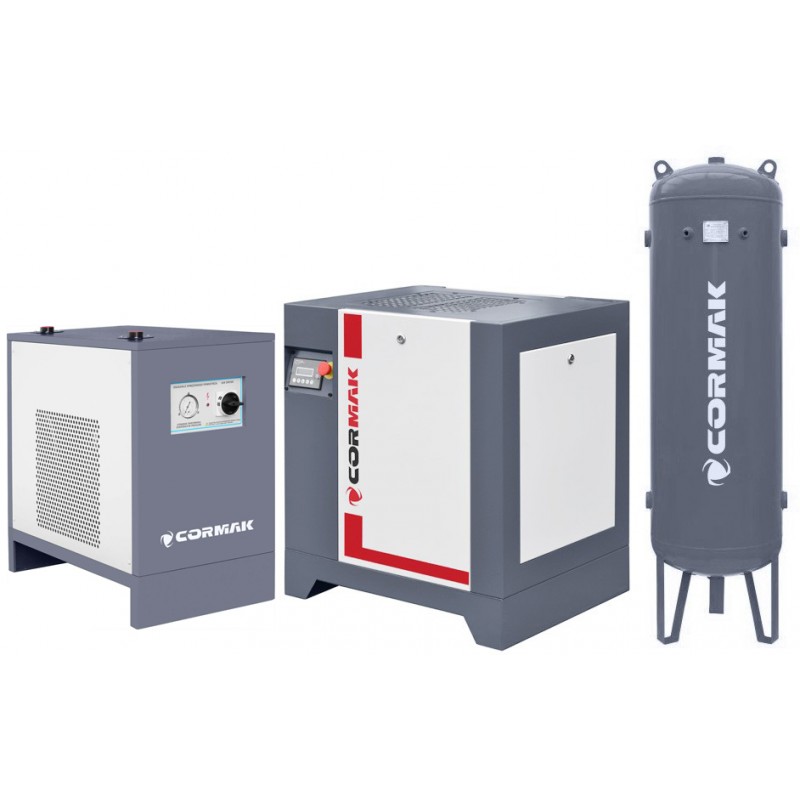

Screw Compressor CORMAK THEOR 7,5 + IZBERG N10S Dryer + 500L Vertical Tank
Set including the THEOR 7.5 screw compressor, a vertical compressed air receiver with fittings and a capacity of 500L, and an air dryer IZBERG N10S. The CORMAK THEOR series screw compressor combines the latest pneumatic technologies with high-quality materials and components. Low operating costs, ease of use, ergonomic and robust design, and high efficiency ensure reliable and trouble-free performance.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Main Advantages
- Strong, compact construction of the screw compressor from a European manufacturer
- Automation based on modern, high-quality components ensuring safe and efficient operation
- Specially designed cooler provides optimal working conditions even under heavy load
- Connection between the cooler and the module made with high-quality hydraulic hoses
- Applied technology allows significant energy savings
- Special air outlet design ensures more efficient operation
- Compressor fitted with a durable and efficient pump
- Unique triple filtration system ensures efficient operation
- Reliable belt-drive transmission system ensuring high effective performance
- Low noise level thanks to a specially designed soundproofed enclosure (sound-absorbing panels)
- Electronic control from the MAM series allows setting parameters such as service intervals, power failure alarms, phase sequence changes, phase loss, overheating, and others; operation in Master/Slave mode, connection of up to 16 units in one network, and remote control via computer
Technical Specifications THEOR 7.5
| Motor power | 5.5kW |
| Voltage | 400V/50Hz |
| Output at 0–6 bar | 690L/min |
| Output at 6 bar | 650L/min |
| Output at 8 bar | 650L/min |
| Output at 10 bar | 630L/min |
| Outlet port diameter (G) | 3/4" |
| Dimensions | 770 × 640 × 860mm |
| Weight | 170kg |
Technical Specifications N10S
| Inlet/outlet air pipe diameter (BSP) | 1" |
| Operation in pressurised systems | up to 10 bar |
| Inlet air temperature | ≤38°C |
| Dew point temperature | 3°C at working pressure |
| Capacity | 1,500L/min |
| Power | 0.58kW |
| Voltage | 230V |
| Dimensions (L × W × H) | 380 × 600 × 625mm |
| Weight | 31kg |
| Refrigerant type and quantity | R134a, 400g |
Technical Specifications of 500L Air Receiver
| Weight (kg) | 145 |
| Connections | 8 |
| Connection size | 1/2", 2" |
| Dimensions | 209.8 × 60cm |
| Tank capacity (L) | 500 |
| Working pressure (bar) | 11 |
| Diameter (mm) | Ø600 |
| Height (mm) | 2100 |
Tank Equipment:
- 1 plug ½”
- Pressure gauge + reduction to ½”
- ½” tee fitting
- Inlet/outlet 1¼”–¾”
- ½” water drain valve
- ½” hose quick coupling
Attention!
The safety valve is not included in the tank fittings and must be purchased separately.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
