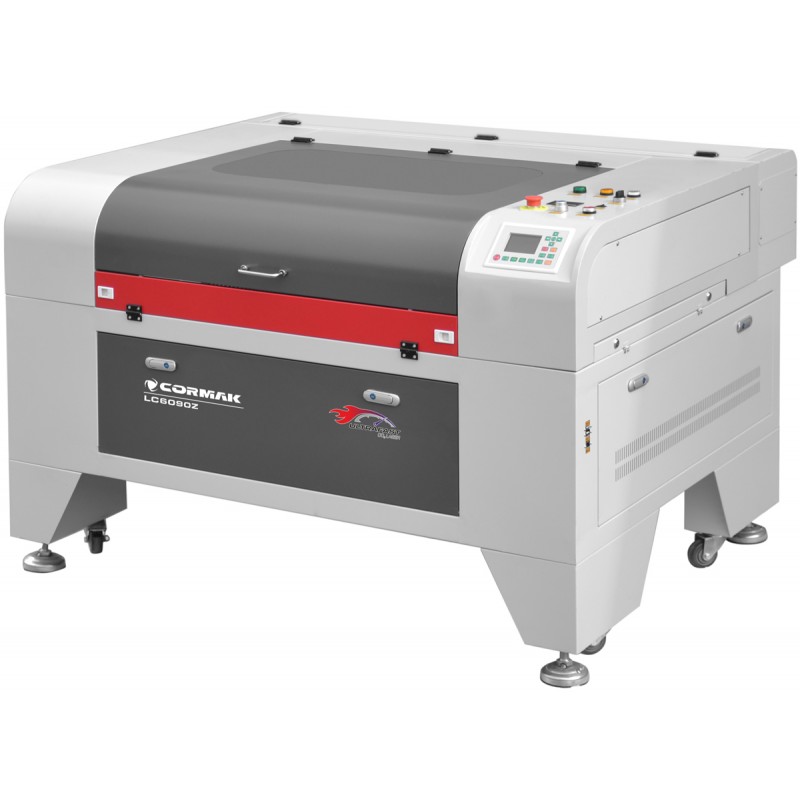

CO₂ Laser Cutter and Engraver CORMAK LC6090Z
Ideal for engraving, marking and cutting — from single items to large production series.
The working area of the LC6090 Laser Cutting and Engraving Machine is 600 x 900 mm.
Included with the machine: red dot pointer, electrically adjustable platform up to 200 mm, honeycomb and blade tables, lower fume extractor with waste drawer, integrated compressor activated during operation, fan and cooling system.
The key advantage of this engraver is the “through table”, allowing the machining of materials of any length, 600 mm width and height up to 100 mm or any width and 900 mm length.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€4,849.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
CO₂ ULTRAFAST LASERS
The latest series of high-speed lasers for cutting and engraving — saving your time and increasing your competitiveness.
Ultrafast laser series — your guarantee of success!
- Up to 200% faster compared to standard models available on the market
- Innovative drive system ensures significantly higher precision, especially for small, complex details
- Only with us — top-quality components from trusted, leading manufacturers
- Guaranteed original RECI laser tubes
LASER CUTTING PROCESS
Laser cutting is a modern and widely used material processing technique. The cutting tool in this method is a high-energy-density laser beam that cuts through the material.
Laser cutting process sequence
The laser cutting process is based on the interaction of the laser beam at its focal point, where its power is the highest, causing rapid melting, evaporation, ablation and heating of the cut material to ignition temperature. The area where the beam hits the material is flushed with a fast-flowing gas that removes the molten material along the beam axis.
| MACHINE DIMENSIONS | 1500 x 1200 x 1020 mm |
| LASER TYPE | CO2 |
| MAXIMUM LASER POWER | 90W (RECI W1 tube) (option*: 100W, 130W, 150W) |
| MACHINE WEIGHT | 260 kg |
| MAXIMUM WORKING AREA | 600 x any / any x 900 mm |
| POSITIONING ACCURACY | ± 0.01 mm |
| MECHANICAL RESOLUTION | 0.0254 mm |
| MAXIMUM POWER CONSUMPTION | 1000W |
| OPERATING TEMPERATURE | 15 – 45 ℃ |
| Operating system | Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| Input file formats | PLT, AI, DST, DXF, BMP |
| Compatible software | CorelDraw AutoCAD Photoshop |
| Drive type | Stepper motors |
| Communication | USB |
| Tube cooling | CW-3000 chiller |
| Material cooling | air |
Professional liquid chiller CW-3000 included
It contains a cooling medium that, when the liquid reaches the alarm temperature, enables the built-in compressor to quickly cool the laser tube’s cooling system.
Features of the LASER-6090 set
- Honeycomb table — essential for cutting materials, its purpose is efficient smoke extraction.
- Blade table — ideal for cutting materials such as plexiglass, aspect, etc.
- Lower fume extractor performs the exhaust function.
- Waste drawer
- Electrically adjustable table controlled via the program and machine panel, lowering up to 200 mm, enabling engraving on tall objects.
- “Red dot pointer” — precisely displays the laser beam’s working point, essential for positioning.
- Integrated compressor — activated only during operation, used to protect the lens from contamination and to cool the cutting area.
- Laser head with 90W (RECI W1 tube) (option*: 100W, 130W, 150W).
- Professional chiller.
- USB communication allows connection to a laptop or desktop via USB port. The machine also features an LCD display for adjusting table height and other parameters.
- USB port and built-in memory enable file transfer directly to the device without a computer.
- USB memory 512MB for transferring files.
Four-side table access
Four material feeding sides allow cutting and engraving on a larger scale.
U.S. II-VI optical lenses
American optics by American Photonics. Proven 14% improvement in transmission compared to other optical systems. High-strength mirrors and aspheric focusing lenses manufactured by II-VI, USA.
High sharpness and high transmittance. The lenses not only ensure device quality but also allow the optical system to operate for a long time with high efficiency and low maintenance cost.
Dual platforms for cutting and engraving
Includes both blade and honeycomb tables.
Applications
Wood, acrylic glass, plastic, textiles, paper, leather, rubber and other non-metallic materials.
We are a certified supplier of RECI® CO₂ tubes
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
