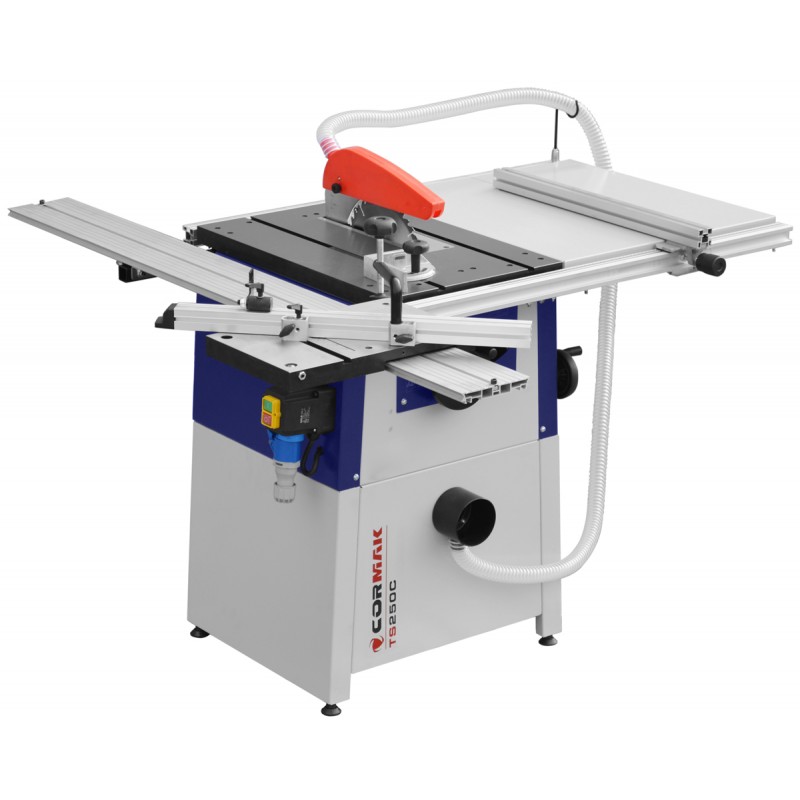

Table Saw CORMAK TS250CL 400V – precise and compact saw for professional applications
TS250CL is a high-class table saw designed for professional users seeking reliability, precision, and compact construction. The saw combines advanced technical features usually reserved for higher-end models with a practical and affordable form. Ideal for small carpentry workshops, furniture production, and craftwork, providing high cutting efficiency for wood materials.
Main advantages of the machine
- Maximum blade diameter 254 mm enabling deep cuts at various angles.
- Motor 2.2kW (S1) / 3.1kW (S6) ensuring constant power even during intensive use.
- Blade tilt range (90° – 45°) for precise bevel cuts.
- Compact construction for optimal workspace use.
- Stable and extended worktable up to 1,000 mm for precise material guidance.
- Efficient dust extraction system with 100/25 mm outlets – improving cleanliness and comfort at work.
Design and technology
The TS250CL saw is built on a solid welded frame that ensures rigidity and vibration resistance. The main mechanical components are made of high-grade steel and cast iron, ensuring durability and long service life. The core of the machine is an induction motor rated at 2.2kW (continuous duty S1), supported by a 3.1kW power boost (S6) mode, allowing efficient cutting of hardwood and engineered wood materials.
The 254 mm carbide-tipped blade allows effective cutting with a maximum depth of 80 mm at 90° and 65 mm at 45°, suitable for most woodworking operations. The blade operates at 4,000 rpm, providing clean and accurate cuts.
Precision and efficiency
The stable design combined with accurate blade guidance ensures that the TS250CL table saw delivers consistent and precise results. With the option to extend the table up to 1,000 mm, it allows convenient handling of large workpieces. Furthermore, angle and height adjustments are smooth and intuitive, greatly improving daily workflow and production efficiency.
Applications
The TS250CL saw is an ideal solution for:
- Carpentry workshops – for cutting solid wood, MDF boards, plywood, and laminates.
- Furniture manufacturers – where dimensional accuracy and surface quality matter.
- Craft workshops – as a universal compact table saw.
- Private users looking for professional performance in a home workshop.
Standard equipment
- Saw blade 250 x 30 x 2 mm
- Worktable extension
- Extraction connectors 100/25 mm
- Guards and limiters ensuring safe operation
Optional equipment*
- Parallel guide system
- Cross-cut sliding table for serial cutting
- Dedicated dust extractor
*The price quoted refers to the machine only, excluding optional/additional equipment, installation, transport, and training — please contact our consultant for details.
Technical data
| MAXIMUM BLADE DIAMETER/BORE |
254x30 mm |
| BLADE SPEED |
4,000 rpm |
| BLADE TILT RANGE |
90 – 45° |
| MAXIMUM CUTTING DEPTH AT 45º |
65 mm |
| MAXIMUM CUTTING DEPTH AT 90º |
80 mm |
| CUTTING WIDTH WITH TABLE EXTENSION |
750 mm |
| MAXIMUM CUTTING LENGTH |
1,000 mm |
| EXTRACTION OUTLET |
100/25 mm |
| WORKTABLE DIMENSIONS |
635 x 420 mm |
| WORKTABLE WITH EXTENSION |
635 x 1,500 mm |
| MOTOR POWER |
2.2kW (S1) 400V / 3.1kW (S6) |
| WEIGHT |
110 kg |
| DIMENSIONS |
1,450 x 1,000 x 1,100 mm |
Choose professional precision
If you are looking for a reliable table saw combining compact size with high power and cutting accuracy, the CORMAK TS250CL Table Saw is the perfect solution for demanding users. Order now and enhance your workshop productivity!
