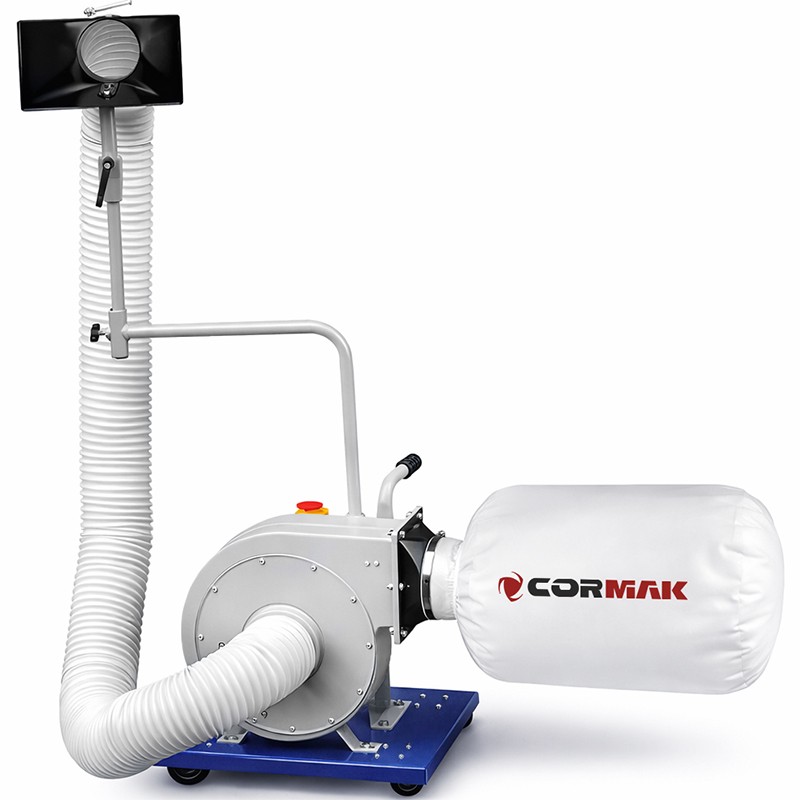

Wood Dust and Chip Extractor CORMAK FM230DBK – Mobile Workshop Extractor for Dust and Chips

CORMAK FM230DBK is a professional wood dust and chip extractor designed for efficient removal of dust and shavings generated during the processing of wood, metal and plastics. With its compact structure, high vacuum pressure and strong suction capacity of 1,000 m³/h, the unit is ideal for workshops, technical schools and craft studios. Its low weight, quiet operation and easy mobility make it the perfect choice for users seeking an efficient yet compact wood dust extractor.

Main advantages of the machine

• Suction capacity 1,000 m³/h – effective removal of chips, dust and sawdust from a single workstation.
• 0.75 kW motor, 230 V – universal single-phase supply for easy operation anywhere in the workshop.
• Metal impeller Ø230 mm – dynamically balanced for quiet, stable operation and long service life.
• Vacuum pressure 1,030 Pa – high suction power even for heavy or damp shavings.
• Adjustable suction port Ø100 mm – compatible with a wide range of woodworking and industrial machines.
• Mobile base with wheels – easy relocation between workstations.
• Large 56 L collection bag – less frequent emptying and longer operating cycles.
• Low noise level <70 dB(A) – ensures operator comfort even in enclosed spaces.

Design and technology

The CORMAK FM230DBK woodworking extractor features proven impeller technology. The well-balanced 230 mm metal fan operates at high speed, generating stable vacuum pressure for efficient collection of waste from woodworking machines. The textile collection bag (56 L) is mounted on a durable stand that allows quick replacement and uninterrupted operation.

The entire unit is mounted on a mobile base with four wheels, enabling smooth movement of the chip extractor even in confined spaces. The adjustable Ø100 mm suction port makes it easy to adapt the extractor to machines with different dust removal configurations.

Precision and work efficiency

The FM230DBK offers high extraction efficiency while maintaining quiet and energy-saving operation. The large metal dust fan ensures stable air pressure and prevents clogging. With 1,030 Pa of suction power, it easily handles heavy waste fractions, while the low noise level enables comfortable use in enclosed work areas without disturbing others.

Applications

• Joinery and carpentry workshops – for chip and dust extraction from planers, table saws, milling machines and lathes.
• Vocational schools and training centres – a safe, easy-to-use wood dust vacuum.
• Hobby workshops – for craftsmen seeking cleanliness and convenience in limited spaces.
• Wood and PVC processing plants – for light and medium-duty extraction applications.

Standard equipment

• Mobile base with wheels
• Metal stand
• Flexible hose with nozzle
• Textile collection bag 56 L
• Adjustable suction port Ø100 mm

Optional equipment

• High-precision filter bags
• Splitters for multi-point extraction systems
• Antistatic flexible hoses Ø100 mm
• Reducers and adapters for non-standard machines

Technical data

Summary

CORMAK FM230DBK is an efficient and mobile woodworking dust extractor, ideal for point extraction in workshop and training environments. With its compact structure, high suction power and ease of use, it provides a modern solution for maintaining a clean and safe workspace. Durable construction and compatibility with common machine connections make it a top choice in the wood dust and chip extractor category.

Order the CORMAK FM230DBK today – invest in efficiency, safety and comfort at work!
