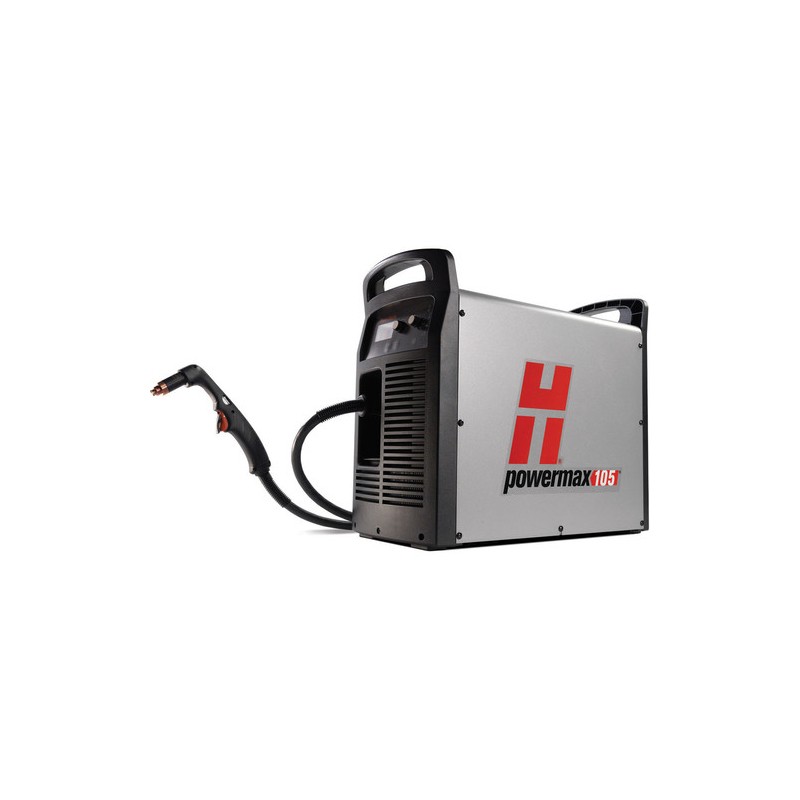

Plasma Source CORMAK POWERMAX 105

Handheld or mechanised plasma system for metal cutting and gouging.

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€9,725.00

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

• High cutting speeds — up to three times faster than oxy-fuel systems when cutting mild steel 12 mm thick.

• Exceptional cutting and gouging quality reduces grinding and edge preparation time.

• Smart Sense™ technology automatically sets the correct air pressure based on torch length and operating mode.

• Simple manual, mechanised and robotic torches provide excellent flexibility and comfortable operation.

• Wide voltage tolerance improves performance with engine-driven generators and on low-line voltage conditions.

• Enhanced shield design minimises dross build-up and ensures smoother, higher-quality drag cutting.

• Duramax™ torches are engineered for maximum durability and heat resistance.

• SpringStart™ technology ensures consistent starting conditions and improved torch life.

• Low maintenance requirements and maximum uptime — fewer interruptions to work.

• Long consumable life means lower costs and less downtime.

• High energy efficiency reduces power consumption.

Technical Specifications
Input voltages	400 V, 3 phases, 50/60 Hz
Input current at 16.8 kW	400 V, 3 phases, 28 A
Output current	30–105 A
Rated output voltage	160 V DC
Duty cycle at 40 °C	80% at 105 A, 400 V, 3 phases 100% at 94 A, 400 V, 3 phases
Open-circuit voltage (OCV)	292 V DC
Dimensions with handles	592 x 274 x 508 mm (L x W x H)
Weight with 7.6 m torch	41 kg
Gas supply	Clean, dry, oil-free air or nitrogen
Recommended inlet gas flow / pressure	Cutting: 217 L/min at 5.9 bar Gouging: 227 L/min at 4.8 bar
Input power cable length	3 m
Power supply type	Inverter — IGBT (insulated-gate bipolar transistor)
