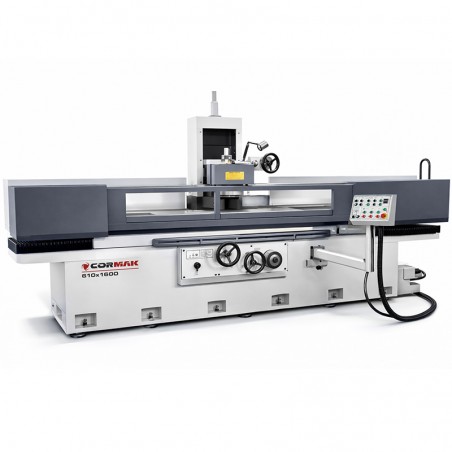

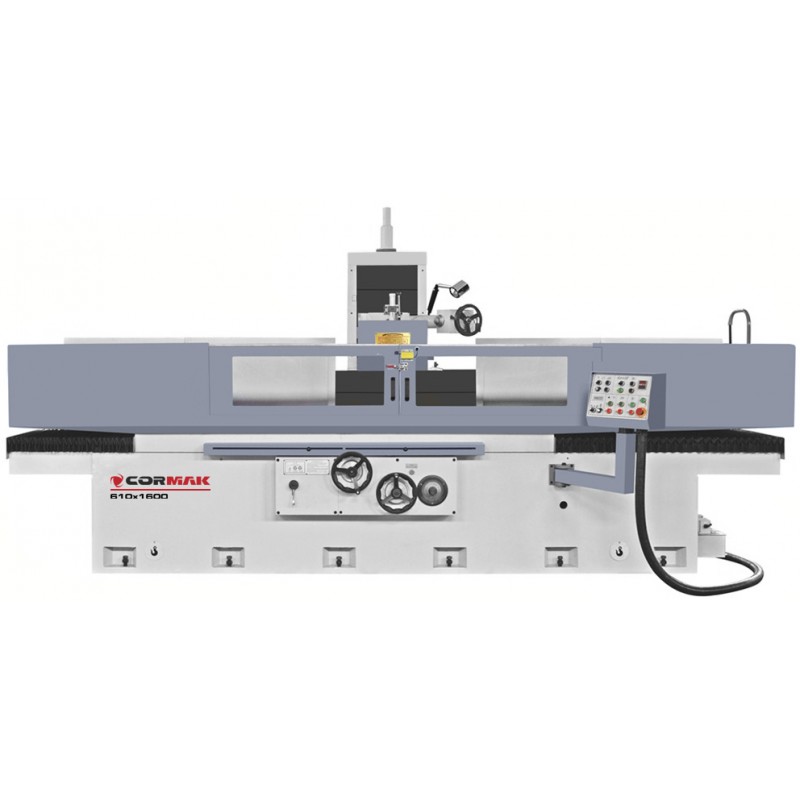

Surface Grinding Machine 600x1500

The Surface Grinding Machine 600x1500 is an advanced device designed for precise grinding of flat surfaces and complex shapes in the machine industry. Equipped with a double V-shaped guideway and Japanese NSK bearings, it ensures high machining accuracy with a stable structure. The key advantage of this magnetic surface grinder is its ability to handle heavy loads up to 800 kg, making it a reliable tool for demanding production applications.

Main advantages of the machine

The Surface Grinding Machine 600x1500 stands out with parameters that directly translate into efficiency and durability in everyday use. Designed with high-quality components such as NSK bearings and an ABB spindle motor, this machine offers optimal performance with minimal energy consumption. Below are the key benefits of its construction and technical specifications, giving it an edge in the segment of large surface grinders:

• Double V-shaped guideway: Ensures table stability and precise feed, reducing vibration and increasing machining accuracy.
• Japanese NSK bearings: Guarantee long-lasting, failure-free operation, minimising friction and improving motion smoothness.
• ABB spindle motor: With a power of 7.5 kW and speeds of 1450/1740 rpm, enables efficient machining of hard materials.
• Waterproof and dustproof spindle: Protects against contamination, extending component lifespan and maintaining high precision.
• SIEMENS electronic components: Provide reliable control, minimising errors and enhancing operational safety.
• Maximum load capacity 800 kg: Allows machining of heavy workpieces without compromising stability, reducing production costs.
• Table speed 5–25 m/min: Enables fast machining of large surfaces, increasing throughput in production cycles.

Construction and technology

The Surface Grinding Machine 600x1500 is based on a solid bed construction that ensures rigidity and minimises vibration during machining. The spindle operating at 1450/1740 rpm is mounted in Japanese NSK bearings, ensuring stable operation of the 355x50x127 mm grinding wheel. The hydraulic system handles table feed in the range of 5–25 m/min, while automatic transverse and vertical feeds enable precise control of movement. The double V-shaped guideway ensures accurate feed, and SIEMENS electronic components facilitate operation. The integrated lubrication and cooling system prevents overheating, extending tool life. Motors, including a 5.5 kW hydraulic motor, are optimised for durability. The entire construction weighs 8,250 kg, highlighting its stability in heavy-duty industrial environments. This technology makes the magnetic surface grinder an ideal solution for tasks requiring long-term reliability.

Precision and performance

In the Surface Grinding Machine 600x1500, precision is achieved through advanced feed and control mechanisms. The automatic transverse feed in the range of 0.5–12 mm and vertical feed from 0.002 mm allow tolerances below 0.01 mm, which is crucial in producing parts with high dimensional requirements. Efficiency is enhanced by the maximum table feed of 1600 mm and crossfeed speed of 1250/1500 mm/min, enabling fast machining of large surfaces without loss of accuracy. The grinding wheel with optimal speed ensures even material removal, minimising wear and improving surface finish to Ra below 0.2 μm. The SIEMENS control elements eliminate manual errors, reducing setup time and increasing throughput. Compared to standard surface grinders, this model offers a higher load capacity of 800 kg, allowing machining of heavier workpieces without compromising precision. The energy-efficient motors reduce costs, while the solid construction minimises downtime, making this machine an effective tool for process optimisation.

Applications

The Surface Grinding Machine 600x1500 is designed for large manufacturing plants specialising in metalworking, such as machine factories, toolrooms and service centres. It is ideal for grinding flat surfaces of machine components, dies, injection moulds and precision parts requiring high dimensional accuracy. In B2B environments where repeatability and productivity are priorities, this magnetic surface grinder supports both batch and single-piece production, handling materials such as steel, cast iron and aluminium. It is also suitable for reconditioning worn components in heavy industry, where the maximum distance from table to spindle of 600 mm allows machining larger workpieces. The machine is particularly recommended for companies seeking automation of grinding processes, as automatic feeds reduce dependence on operator skills.

Technical data

Standard equipment

• Machine for grinding all surfaces and complex shapes,
• Japanese NSK bearings,
• Double V-shaped guideway,
• SIEMENS electronic components,
• Waterproof and dustproof spindle,
• ABB spindle motor,
• CE certification,
• CE declaration.

Optional equipment

• Additional grinding wheels of various grits,
• Coolant filtration system,
• Advanced CNC control panel,
• Extended service warranty,
• Angular grinding attachment.

Contact us to receive a detailed offer for the Surface Grinding Machine 600x1500. Our team of specialists will help you choose the configuration best suited to your plant’s requirements.
